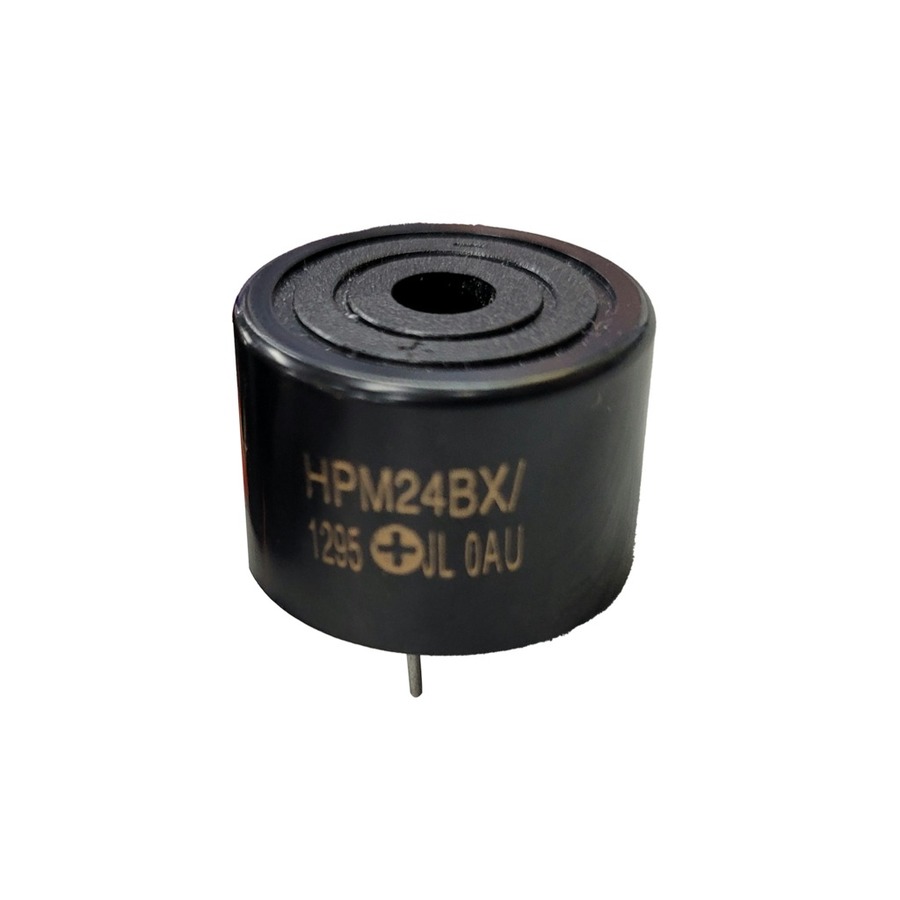

PC Mount Buzzer 3-20VDC

$7.75
Circuit board mount self-contained DC powered buzzer with on-board oscillator and driver. Pins for soldering.
Available

Description

PC Mount self-contained DC powered  buzzer with on-board oscillator and driver. Operating frequency 2900 +/- 500Hz

    Specifications

    Product Dimensions

    Height
    		 16mm
    Depth
    		 23.8mm

    Packaged Dimensions

    Packaged Length
    		 2.5cm
    Packaged Width
    		 2.5cm
    Packaged Weight
    		 0.004kg
    Packaged Volume
    		 0.01375l
    Packaged Height
    		 2.2cm

    Additional Dimensions

    Dimensions details
    		 Pin Spacing
    Width
    		 15mm

    Electromechanical Buzzer

    Buzzer Type
    		 Electromechanical
    Sound Pressure Level
    		 85dB
    buzzer mount
    		 PCB
    Buzzer Current
    		 16mA
    Buzzer Operating Voltage
    		 3V-30V

    Product Availability

    Availability
    		 Stocked item

    Downloads

    AB3458-dataSheetMain.pdf
