Mini PC Mount Buzzer 9-14V

$6.75

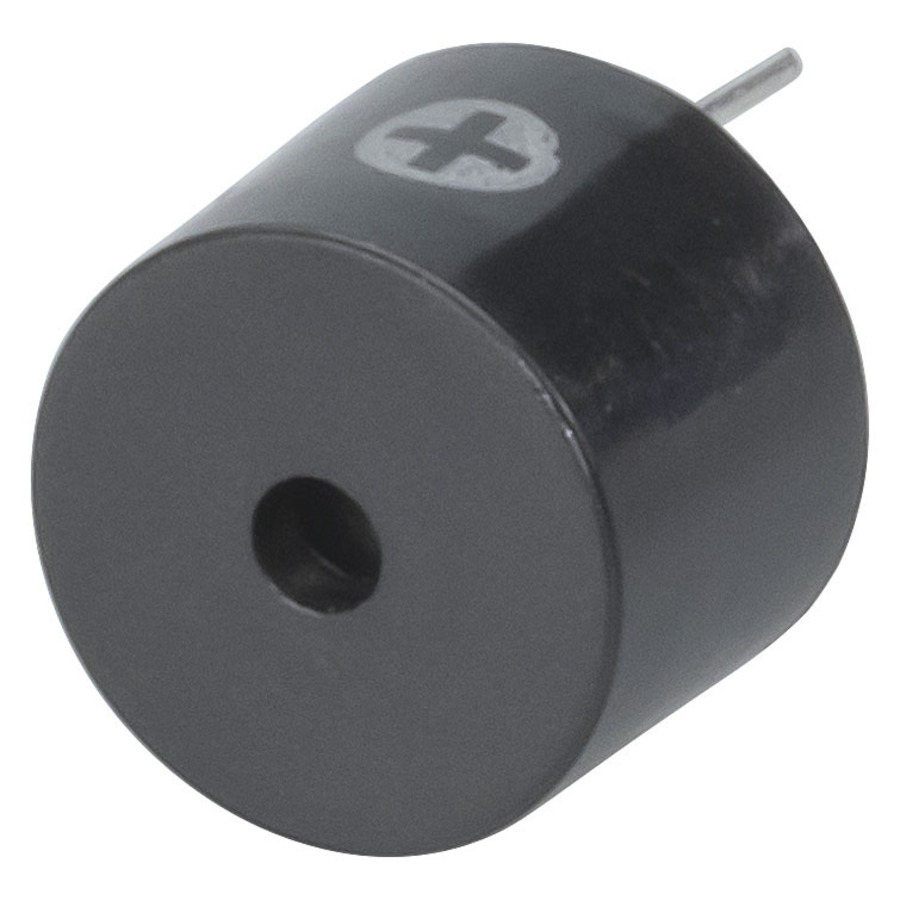

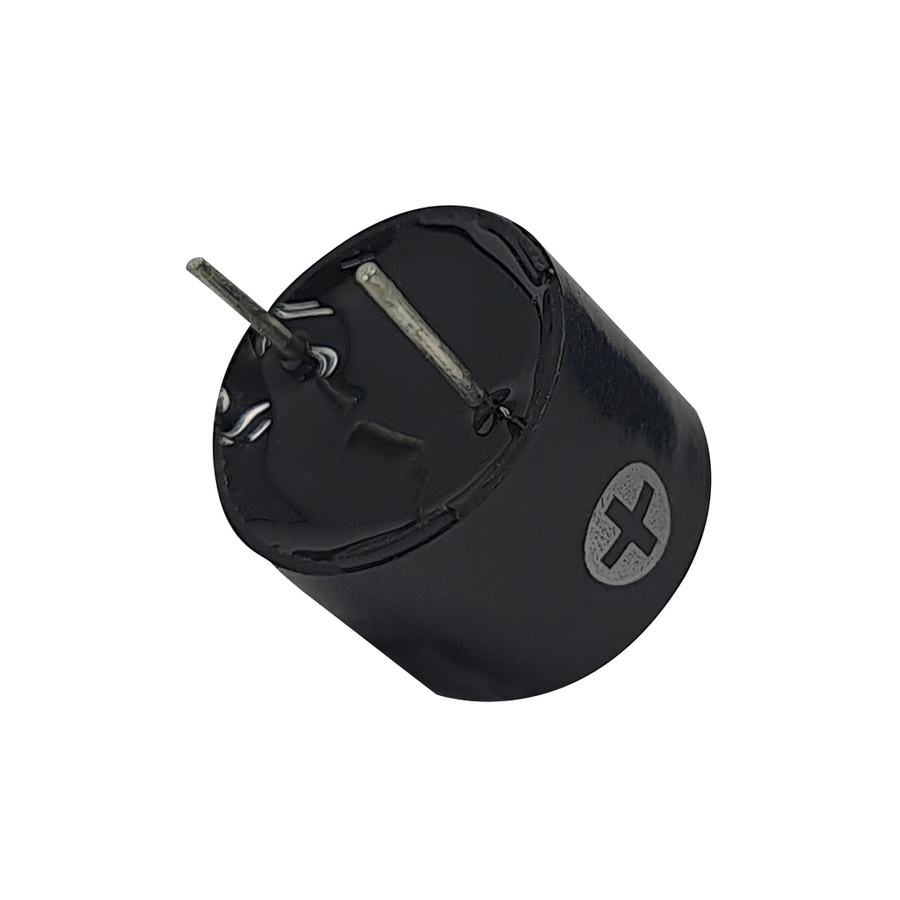

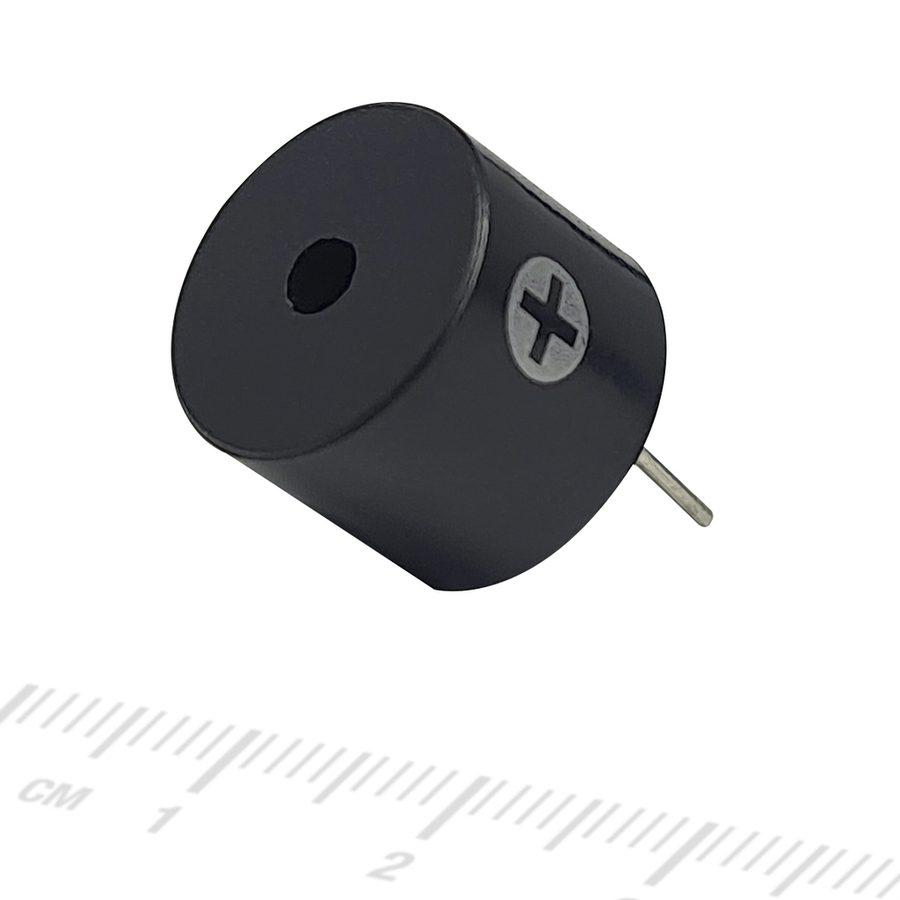

A compact circuit board mount DC powered buzzer with built-in driver and pins for soldering.
Available

Description

This buzzer is ideal when you need to fit a buzzer in a small place. It has its own built- in drive circuit. It offers low current consumption and its sealed for DIP soldering and washing. Used in manufacturing applications such as - laptops, alarms, pagers, etc. Operating Temp: -20° to +65°C


    Specifications

    Product Dimensions

    Height
    		 9.5mm
    Diameter
    		 12mm
    Weight
    		 2.4g

    Packaged Dimensions

    Packaged Length
    		 1cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.0015l
    Packaged Height
    		 1.5cm

    Additional Dimensions

    Dimensions details
    		 Pin Spacing
    Width
    		 7.6mm

    Electromechanical Buzzer

    Buzzer Type
    		 Electromechanical
    Sound Pressure Level
    		 85dB
    buzzer mount
    		 PCB
    Buzzer Frequency
    		 2300Hz
    Buzzer Current
    		 30mA
    Buzzer Operating Voltage
    		 9V-14V
    Rated Voltage
    		 12

    Product Availability

    Availability
    		 Stocked item
