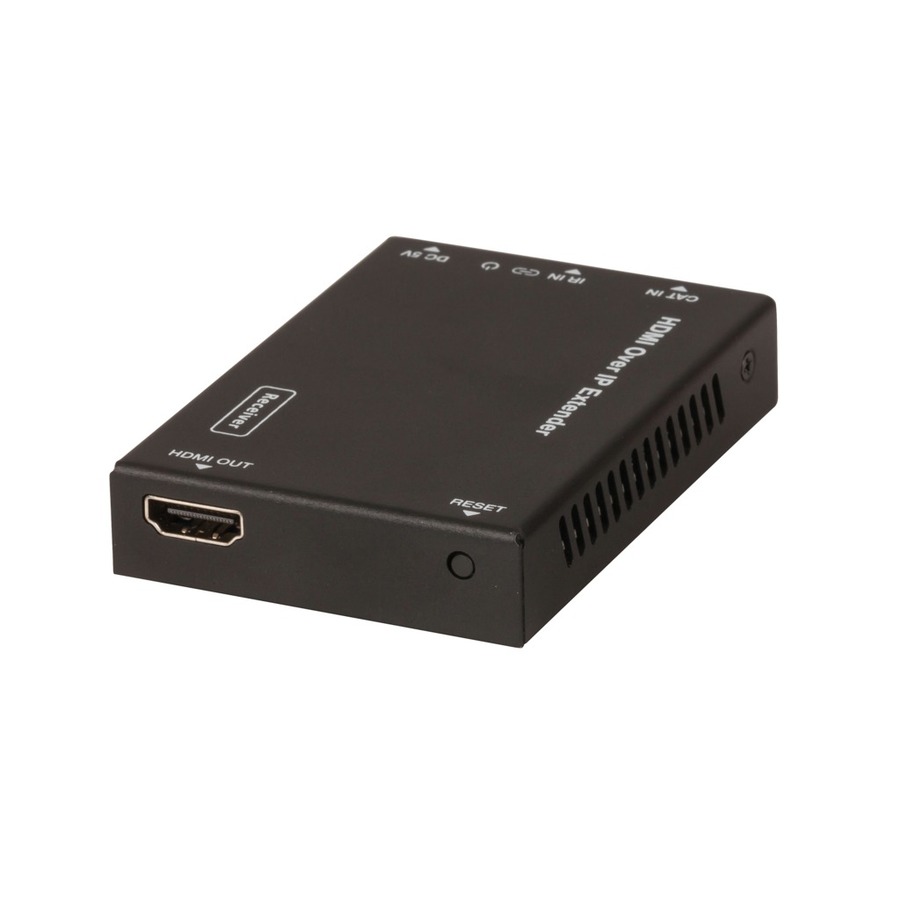

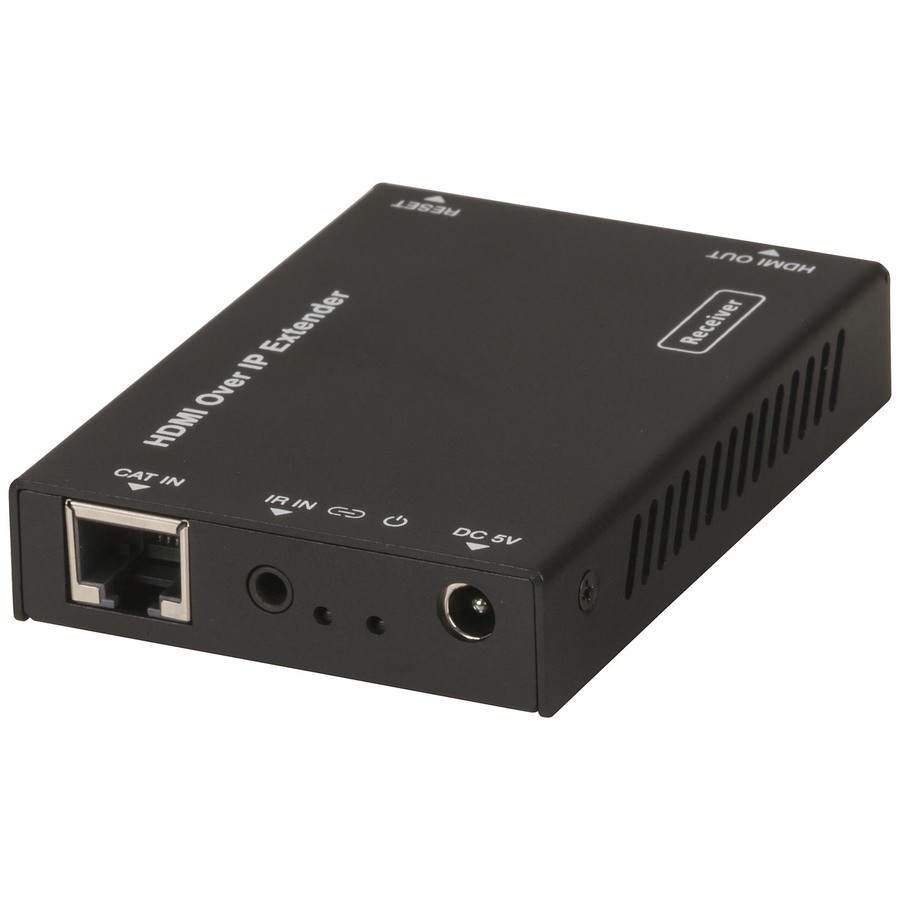

Spare HDMI Over IP Receiver to suit AC1752
Spare HDMI Over IP Receiver to suit AC1752
Spare HDMI Over IP Receiver to suit AC1752

CAT. No. AC1754

Spare HDMI Over IP Receiver to suit AC1752
product image thumb
product image thumb

Spare HDMI Over IP Receiver to suit AC1752

$89.95
An additional receiver to expand your 150m 1080p HDMI Cat5e/Cat6 Over IP Extender (AC1752) to a screen in another room. Includes a mains power adaptor and infrared remote receiver for remote control operation.

Out of Stock

Description

Enables you to expand your AC-1752 150m 1080p HDMI Cat5e/Cat6 Over IP Extender to a screen in another room. Includes a mains power adaptor and infrared remote receiver so you can use your infrared remote control from the receiving point.

Specifications:

Transmission Distance: Up to 150m (Cat6)
                                   Up to 100m (Cat5e)
HDMI: 1.3
HDCP: 1.4b
Resolution: Up to 1200 (1920 x 1200) @ 60Hz
Video Bandwidth: 6.75Gbps
Video Compression: H.265 / H.264
Audio: LPCM 2.0CH
Colour Depth: 8-bit
Infrared Frequency: 20-60KHz
Power: 5VDC, 1A
Dimensions: 86(D) x 61(W) x 17(H)mm (Each)

Enables you to expand your AC-1752 150m 1080p HDMI Cat5e/Cat6 Over IP Extender to a screen in another room. Includes a mains power adaptor and infrared remote receiver so you can use your infrared remote control from the receiving point.



    Specifications

    Button Cell information

    Contains Button Cell

    A/V Switcher or Converter

    Input type
    		 HDMI
    Switcher/Converter Type
    		 Balun Extender
    Number of inputs
    		 1pc

    Power from Plugpack

    DC Plugpack Voltage
    		 5V, 5V
    Item Connection
    		 Barrel Plug, Barrel Plug
    PSU Powers
    		 Transmitter, Receiver
    DC Current Draw
    		 1A, 1A

    Power from Plugpack (secondary)

    DC Plugpack Voltage
    		 5V, 5V
    Item Connection
    		 Barrel Plug, Barrel Plug
    PSU Powers
    		 Transmitter, Receiver
    DC Current Draw
    		 1A, 1A

    Video Resolution

    HDMI Colour Space Compatibility
    		 YCbCr 4:4:4, RGB, YCbCr 4:2:2
    Maximum Vertical Resolution
    		 1Pixel
    HDMI Version
    		 1.30000000
    Resolution Frequency
    		 60Hz
    Maximum Horizontal Resolution
    		 1Pixel
    HDCP Version
    		 1.4b
    HDMI Maximum Colour Depth
    		 8b
    HDMI Maximum Data Rate
    		 6.75Gb/s
    Compliant with
    		 H.264 and H.265 Compression

    Audio Format

    Digital Audio Format
    		 LPCM
    Maximum Channel Support
    		 2ch
    Maximum Signal Frequency
    		 48kHz

    Infrared Remote Control Extender

    IR Signal Fequency Compatibility
    		 60kHz-20kHz

    Signal Extender Balun

    Signal Type
    		 HDMI
    Connecting Cable
    		 Cat5e UTP, Cat6 UTP
    Input Connection
    		 HDMI Type-A
    Connecting Cable Termination
    		 RJ45
    Maximum Distance Between Baluns (cat6)
    		 150m
    Output Connection
    		 HDMI Type-A
    Maximum Distance Between Baluns (cat5e)
    		 100m

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 20.4cm
    Packaged Width
    		 11.6cm
    Packaged Weight
    		 0.35kg
    Packaged Volume
    		 1.56182l
    Packaged Height
    		 6.6cm

    Product Dimensions

    Height
    		 17mm
    Width
    		 61mm
    Depth
    		 86mm
    Weight
    		 150g

    Downloads

    AC1754-manualMain.pdf
