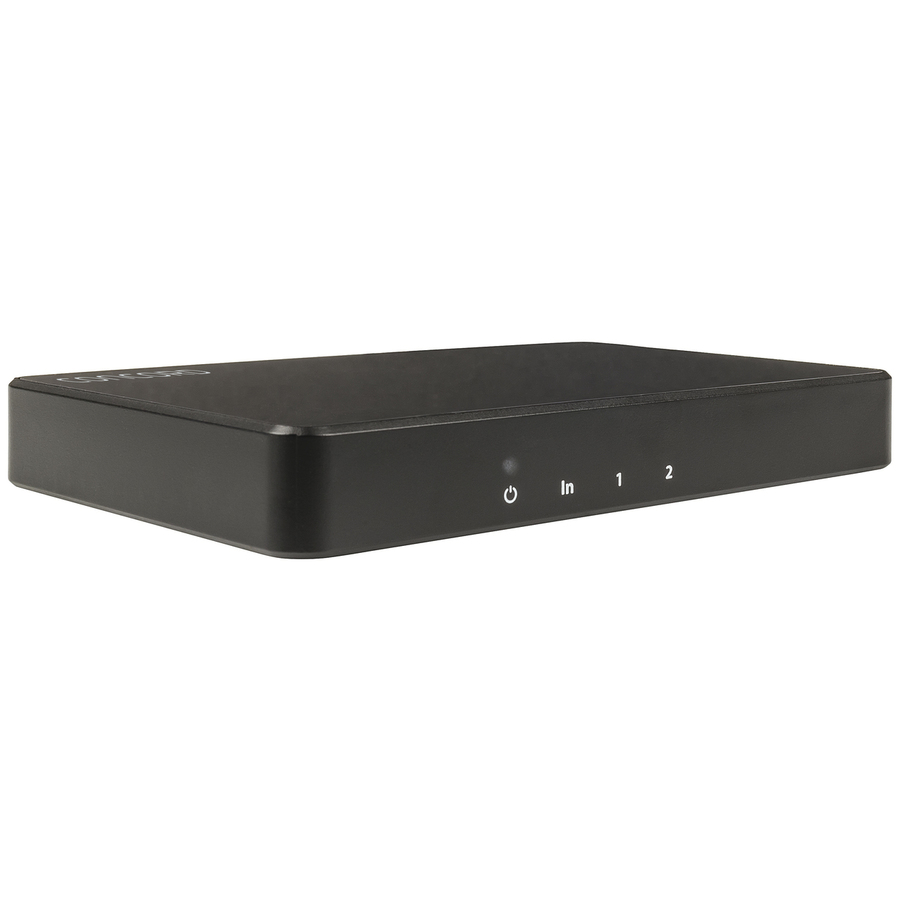

Concord 2-Way 4K HDMI Splitter
Concord 2-Way 4K HDMI Splitter
Concord 2-Way 4K HDMI Splitter
Concord 2-Way 4K HDMI Splitter
Concord 2-Way 4K HDMI Splitter
Concord 2-Way 4K HDMI Splitter
Concord 2-Way 4K HDMI Splitter

CAT. No. AC5000

Concord 2-Way 4K HDMI Splitter
product image thumb
product image thumb
product image thumb
product image thumb
product image thumb
product image thumb

Concord 2-Way 4K HDMI Splitter

$119
Simultaneously output to two different 4K resolution HDMI displays from the one HDMI source, such as a Blu-ray player, set-top box, games console, or media player.

Out of Stock

Description

2 Year Warranty

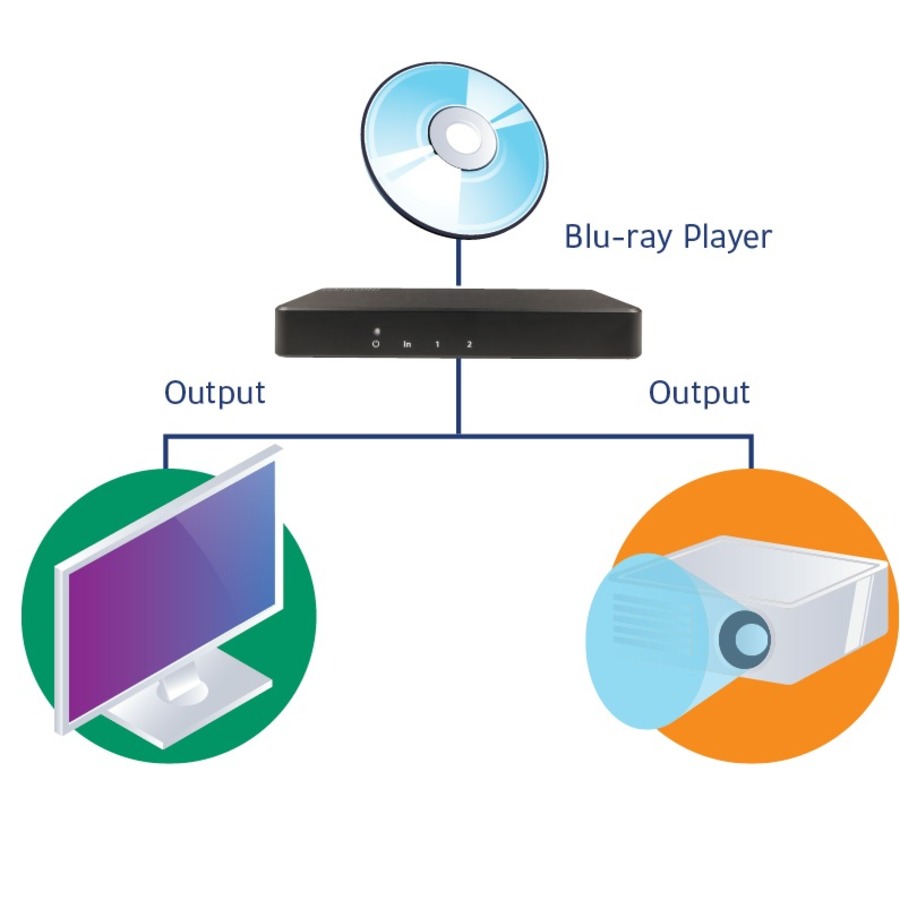

Simultaneously split to two different HDMI displays from the one HDMI source, such as a Blu-ray player, set-top box, games console, or media player.
With 4K x 2K Ultra High Definition (UHD) support, there’s no reduction in picture quality.
Supports audio up to 7.1 surround sound, HDCP 2.2 for the latest hardware compatibility, and 10-bit HDR (High Dynamic Range) for a wider range of lifelike colours and brightness.

The smart EDID (Extended Display Identification Data) support ensures your monitor knows how to configure correctly to match the source signal.
Features:
Up to 4K x 2K Video Resolution
High-Dynamic-Range (HDR) Video Support
HDCP, 3D & CEC Bypass

Features:
. Up to 4K x 2K Video Resolution
. High-Dynamic-Range (HDR) Video
. EDID Data Transmission
. HDCP, 3D & CEC Bypass
Specifications:
Inputs: 1 x HDMI
Outputs: 2 x HDMI
HDMI: 2.0b
HDCP: 2.2, 1.4
HDR: 10
Resolution: Up to 4K (3840 x 2160) @ 60/50/30Hz
Video Bandwidth: 18Gbps
Audio Support: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X

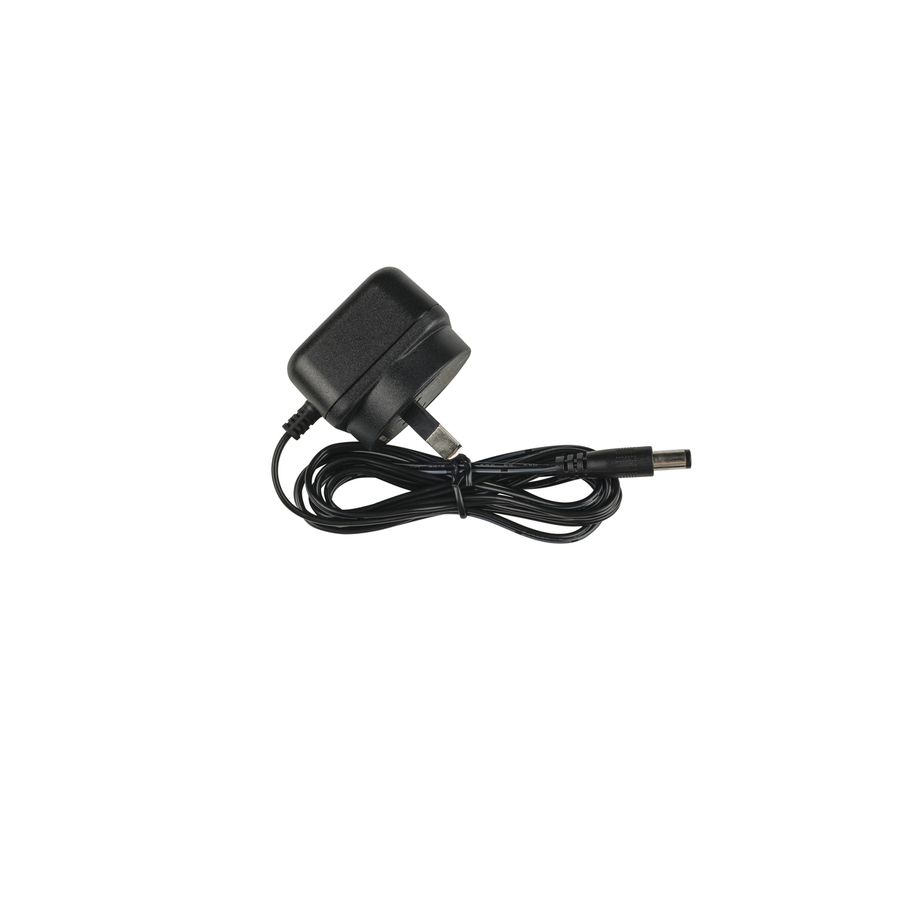

Power Supply: 5V, 1A
Colour Depth: 10-bit
Dimensions: 100(W) x 56(D) x 16(H)mm

    Specifications

    A/V Switcher or Converter

    Input type
    		 HDMI
    Switcher/Converter Type
    		 Distribution Amplifier Splitter
    Input Connection
    		 HDMI Type-A
    Output Type
    		 HDMI
    Output Connection
    		 HDMI Type-A
    Number of inputs
    		 1pc
    Number of Outputs
    		 2pc

    Power from Plugpack

    DC Plugpack Voltage
    		 5V
    Suitable PSU Included
    PSU Powers
    		 Main Product
    DC Current Draw
    		 200mA

    Video Resolution

    HDMI Version
    		 2.0b
    Resolution Frequency
    		 30Hz-60Hz
    Supported Display Resolution
    		 4K UHD (3840 x 2160)
    HDCP Version
    		 2.20000000, 1.40000000
    HDMI Maximum Data Rate
    		 18Gb/s
    HDR Version
    		 HDR 10

    Audio Format

    Digital Audio Format
    		 LPCM, Dolby Digital/Plus/Ex, DTS-HD Master Audio 5.1, Dolby TrueHD, DTS-HD, Dolby Atmos, DTS-X

    Product Dimensions

    Height
    		 16mm
    Width
    		 100mm
    Depth
    		 56mm

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 20.4cm
    Packaged Width
    		 11.6cm
    Packaged Weight
    		 0.362kg
    Packaged Volume
    		 1.632816l
    Packaged Height
    		 6.9cm
    Warranty: 24 Months

    Downloads

    AC5000-manualMain.pdf
