CAT. No. AC5002

Concord 4-Way 4K HDMI Splitter
product image thumb
product image thumb
product image thumb
product image thumb
product image thumb
product image thumb
product image thumb
product image thumb

Concord 4-Way 4K HDMI Splitter

$169

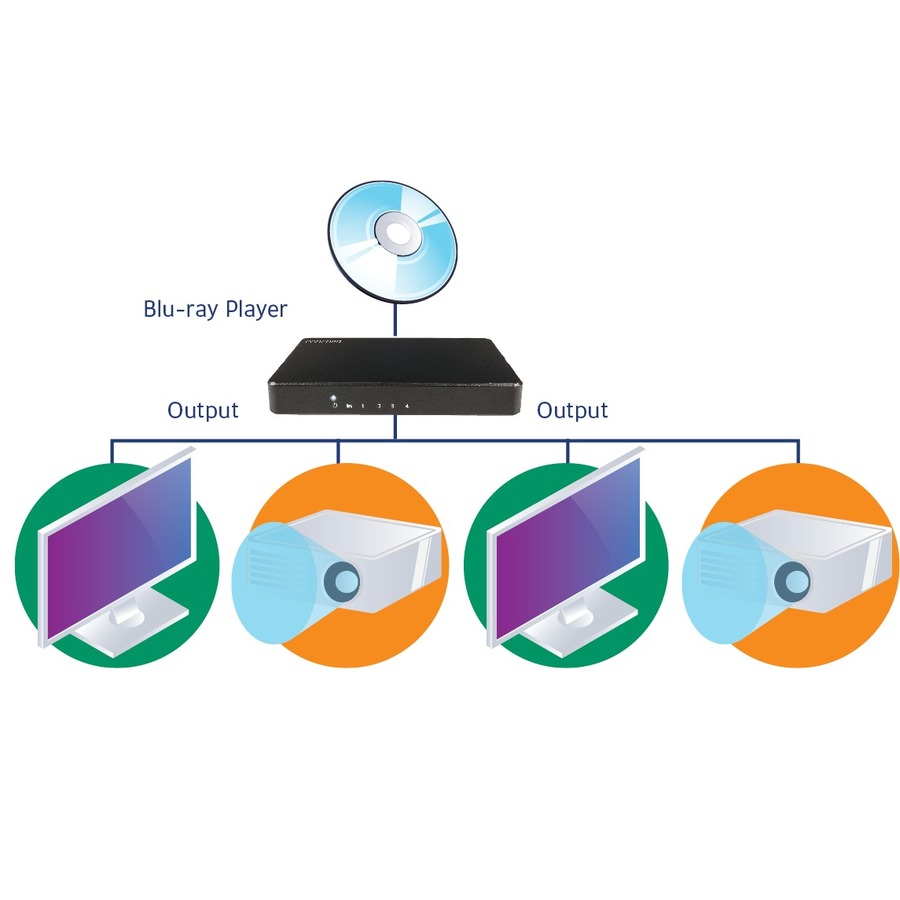

Simultaneously output to up to four different 4K HDMI displays from the one HDMI source, such as a Blu-ray player, set-top box, games console, or media player.
Available

Description

2 Year Warranty

Simultaneously split up to four different HDMI displays from the one HDMI source, such as a Blu-ray player, set-top box, games console, or media player.
With 4K x 2K Ultra High Definition (UHD) support, there’s no reduction in picture quality.
Supports audio up to 7.1 surround sound, HDCP 2.2 for the latest hardware compatibility, and 10-bit HDR (High Dynamic Range) for a wider range of lifelike colours and brightness.
The smart EDID (Extended Display Identification Data) support also ensures your monitor knows how to configure correctly to match the source signal.

Features:
- Up to 4K x 2K Video Resolution
- High-Dynamic-Range (HDR) Video Support
- HDCP, 3D & CEC Bypass

    Specifications

    A/V Switcher or Converter

    Input type
    		 HDMI
    Switcher/Converter Type
    		 Distribution Amplifier Splitter
    Output Type
    		 HDMI
    Power Requirement
    		 External Power Required
    Number of inputs
    		 1pc
    Number of Outputs
    		 4pc

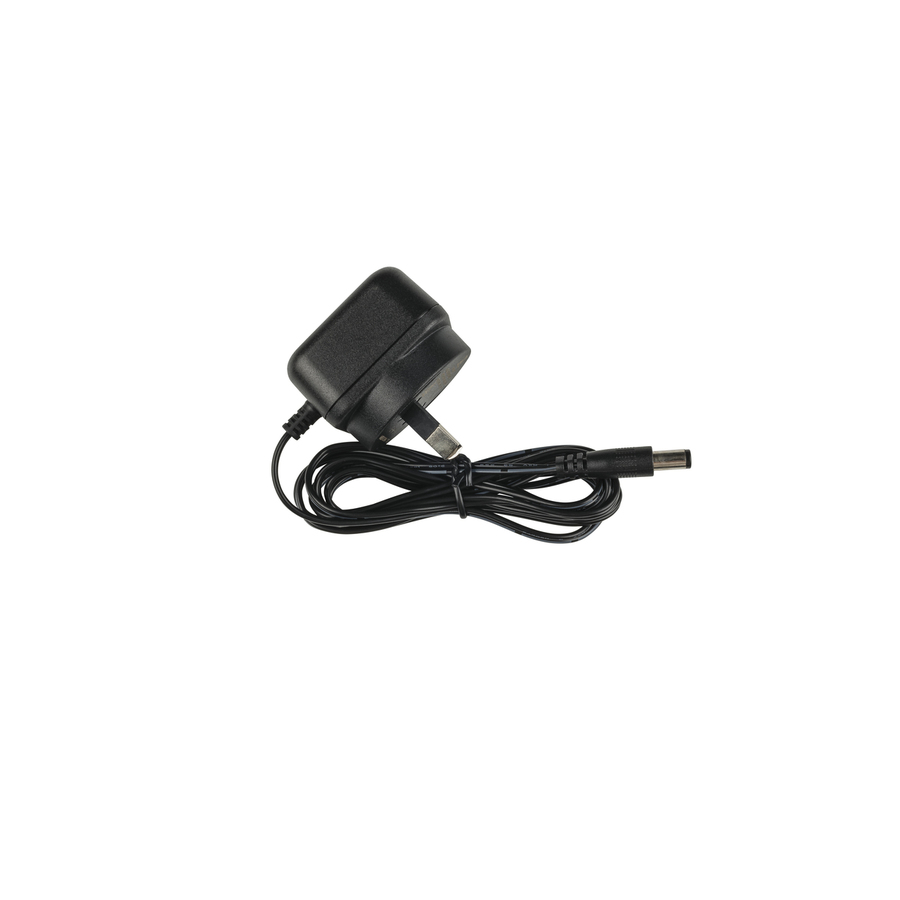

    Power from Plugpack

    DC Plugpack Voltage
    		 5V
    Suitable PSU Included
    PSU Powers
    		 Main Product
    DC Current Draw
    		 200mA

    Video Resolution

    HDMI Version
    		 2.0b
    Resolution Frequency
    		 30Hz-60Hz
    Supported Display Resolution
    		 4K UHD (3840 x 2160)
    HDCP Version
    		 HDCP 2.2, HDCP 1.4
    HDMI Maximum Colour Depth
    		 10b
    HDMI Maximum Data Rate
    		 18Gb/s
    HDR Version
    		 HDR 10

    Audio Format

    Digital Audio Format
    		 LPCM, Dolby Digital/Plus/Ex, DTS-HD Master Audio 5.1, Dolby TrueHD, Dolby Atmos, DTS-X

    Product Dimensions

    Height
    		 16mm
    Width
    		 63mm
    Depth
    		 163mm
    Weight
    		 260g

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 20cm
    Packaged Width
    		 11.5cm
    Packaged Weight
    		 0.378kg
    Packaged Volume
    		 1.495l
    Packaged Height
    		 6.5cm
    Warranty: 24 Months

    Downloads

    AC5002-manualMain.pdf
