CAT. No. AR1780

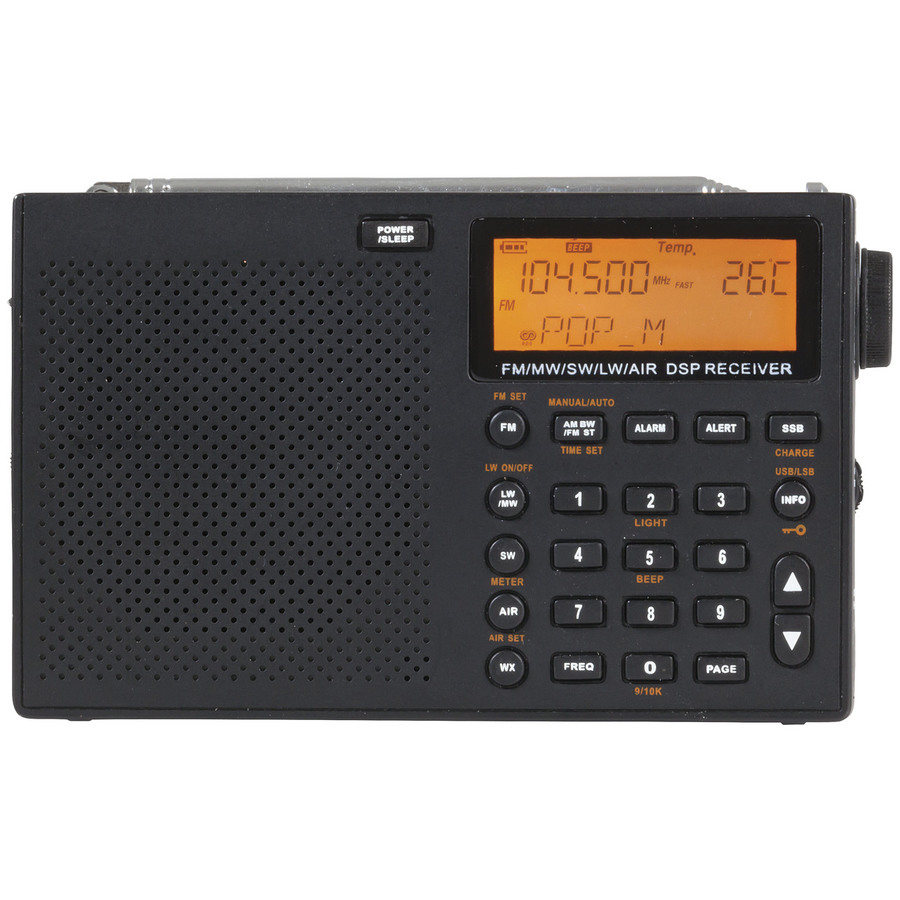

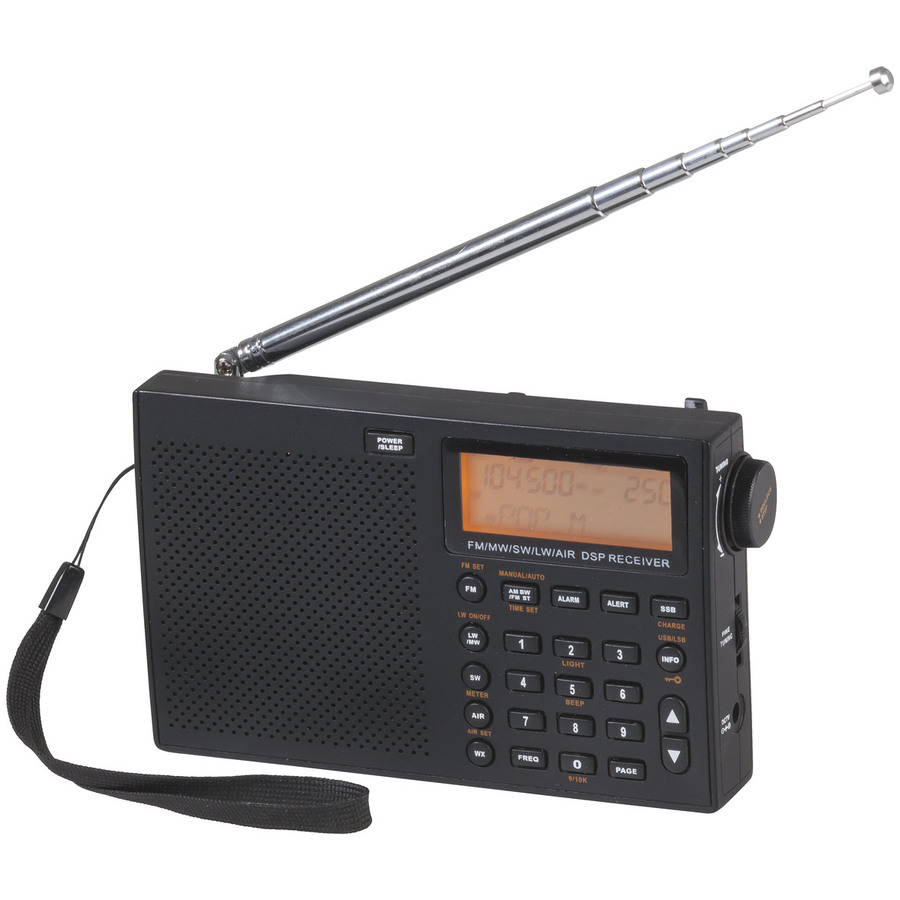

Compact World Band Radio with SSB
product image thumb
product image thumb
product image thumb

Compact World Band Radio with SSB

$149
Ham Radio, Morse Code, Long Wave, and Air Band all in a small yet powerful form.

Out of Stock

Description

1 Year Warranty

This is a very compact world band radio, covering the most popular frequencies. It features rapid digital tuning, 1000 memory presets, and an easy to read display. Single Sideband Modulation (SSB) is used to listen in on 27MHz CB radio, short wave amateur radio and morse code. The large internal speaker provides clear audio, and you can connect your favourite set of headphones for personal listening. Powerful enough to receive what you want, and compact enough to take wherever you want.

Features:
- FM/MW/SW/LW/AIR Bands
- Single Side Band (SSB)
- Telescopic Antenna
- 3.5mm socket for external antenna
- Selectable Bandwidth: 1 - 6kHz
- Radio Bands:
    FM 87.5 - 108MHz
    MW 522 - 1620kHz / 520 - 1710 kHz
    SW 1711 - 29,999kHz
    LW 150 - 450kHz
    AIR 118 - 137kHz

Handy Tip What is World Band?

World Band Radios are those radios that are capable of tuning into radio programs generated by, say the British BBC, Radio Australia(Australian ABC Radio programs), Voice of America, Radio Vatican, etc. These programs are transmitted on a regular weekly basis in any one 24 hour period. It is generally preferable to use 24 hour time, linked to GMT (Greenwich Mean Time) which is the time it is in London (UK) so that confusion is eliminated as when the program is broadcast. There are dozens and dozens of programs from countries all over the world in the special languages of these countries. For example if you are an Australian citizen but originally from Greece, you can tune into stations that enable you to keep your knowledge of the language up to date. The stations typically have a lot of local news which you would normally not hear. The World Band stations are generally broadcast in several frequencies at the same time, typically between about 1.8MHz & 29.00 MHz, especially between7 & 21MHz. You can look up the broadcasting details on Google etc. Phase-Locked Loop (PLL) is a circuit configuration invented over 80 years ago. Originally the circuit was so complex that it only appeared in expensive radios. With modern microchip technology, the PLL got a lot cheaper. The benefits of PLL technology enabled receivers to remain on a station frequency with great accuracy. The radio circuit did not ‘drift.’ PLL technology, though still not cheap, is a hallmark of quality short wave radios and that’s why Jaycar specifies them.

    Specifications

    Product Dimensions


    Height
    95mm
    Width
    150mm
    Depth
    30mm
    Weight
    0.253kg

    Packaged Dimensions


    Packaged Length
    18.4cm
    Packaged Width
    11.8cm
    Packaged Weight
    0.33kg
    Packaged Volume
    1.063888l
    Packaged Height
    4.9cm

    Radio Receiver


    MW(AM) Frequency Range
    522kHz-1710kHz
    Power Source
    Battery
    SW Frequency Range
    1711kHz-29999kHz, 150kHz-450kHz
    Type of Radio
    FM
    FM Frequency Range
    87.5MHz-108MHz

    Power from disposable battery


    Battery used for
    Main Product
    Batteries can be replaced by user
    Battery quantity
    4pc
    Batteries included
    Size / Shape
    AA

    Product Availability


    Availability
    Stocked item
    Warranty: 12 Months
