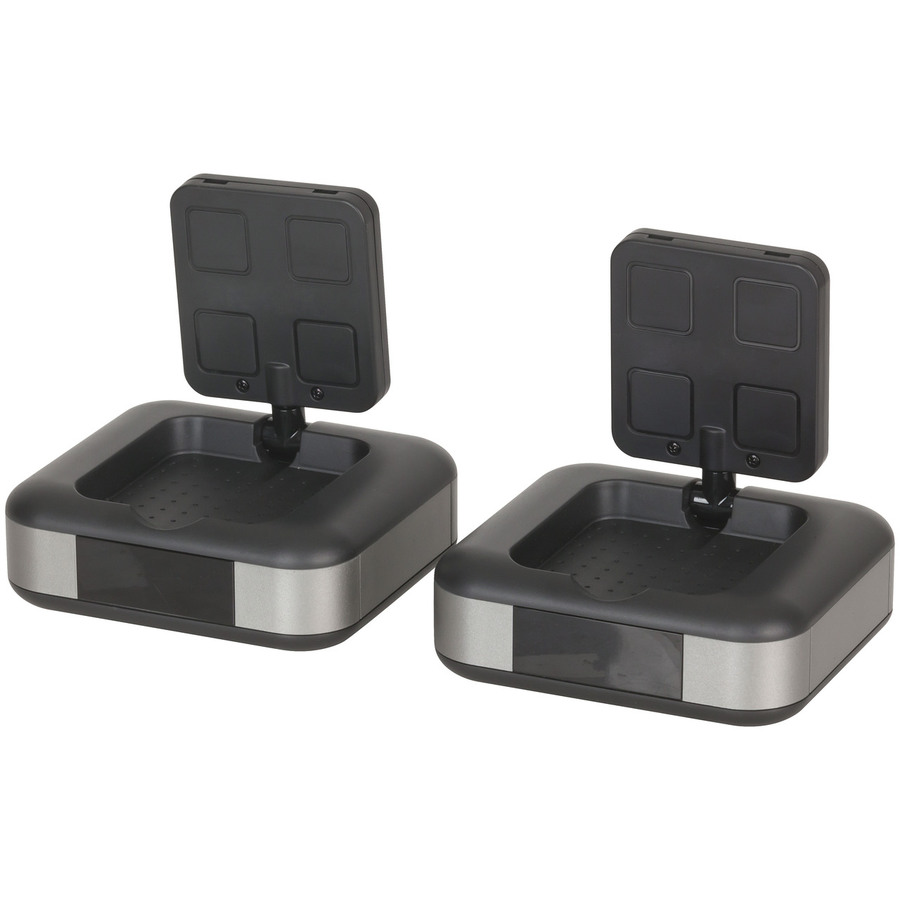

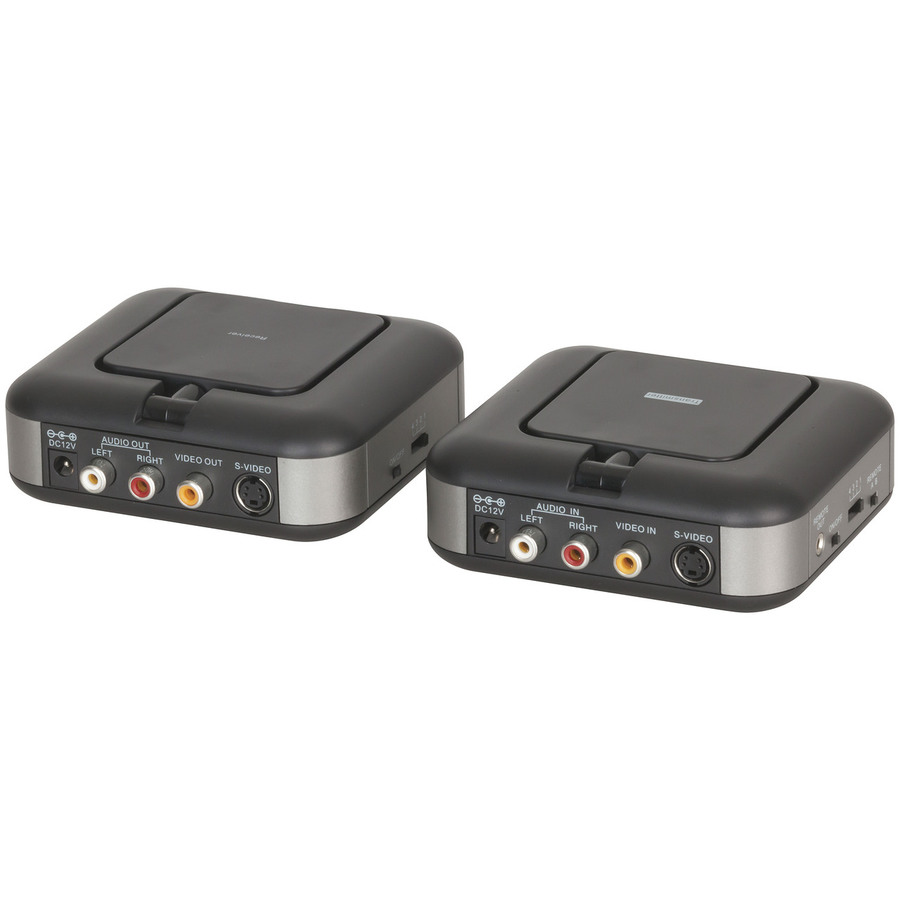

5.8GHz Wireless AV SenderReceiver with Wideband IR Extender

$139
This AV extender will allow you to send your pay TV reception (or any other video source) to any part of the house without leads or cables in between.

Out of Stock

Description

1 Year Warranty
Wireless

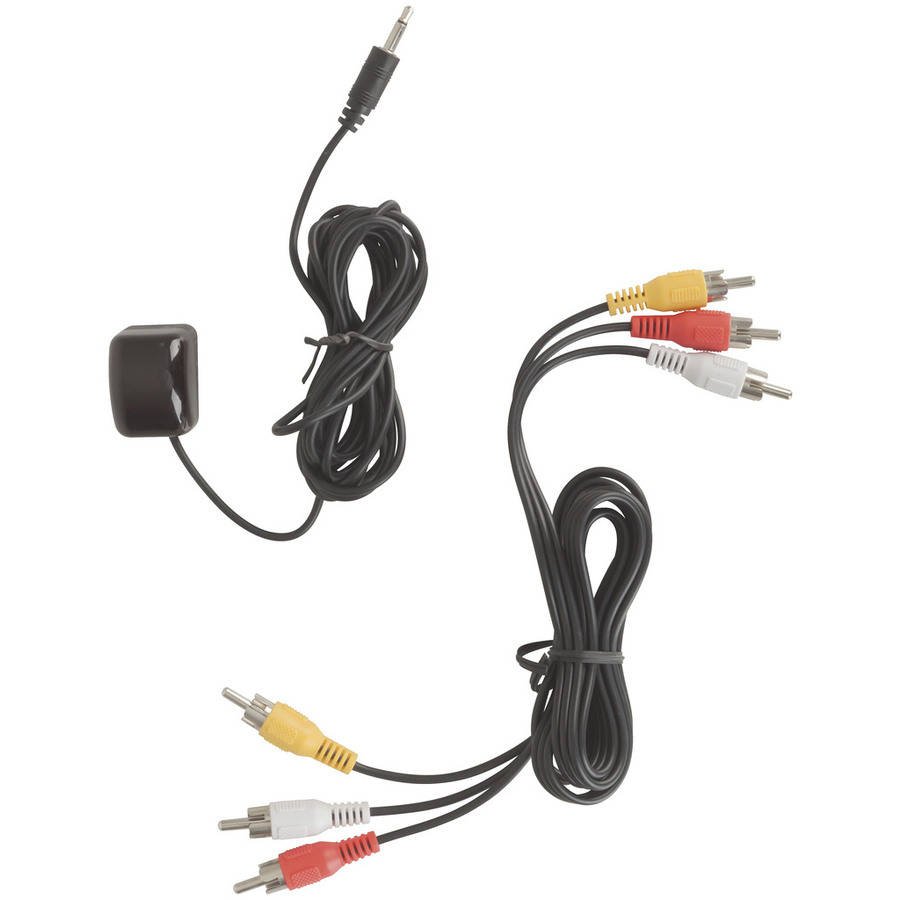

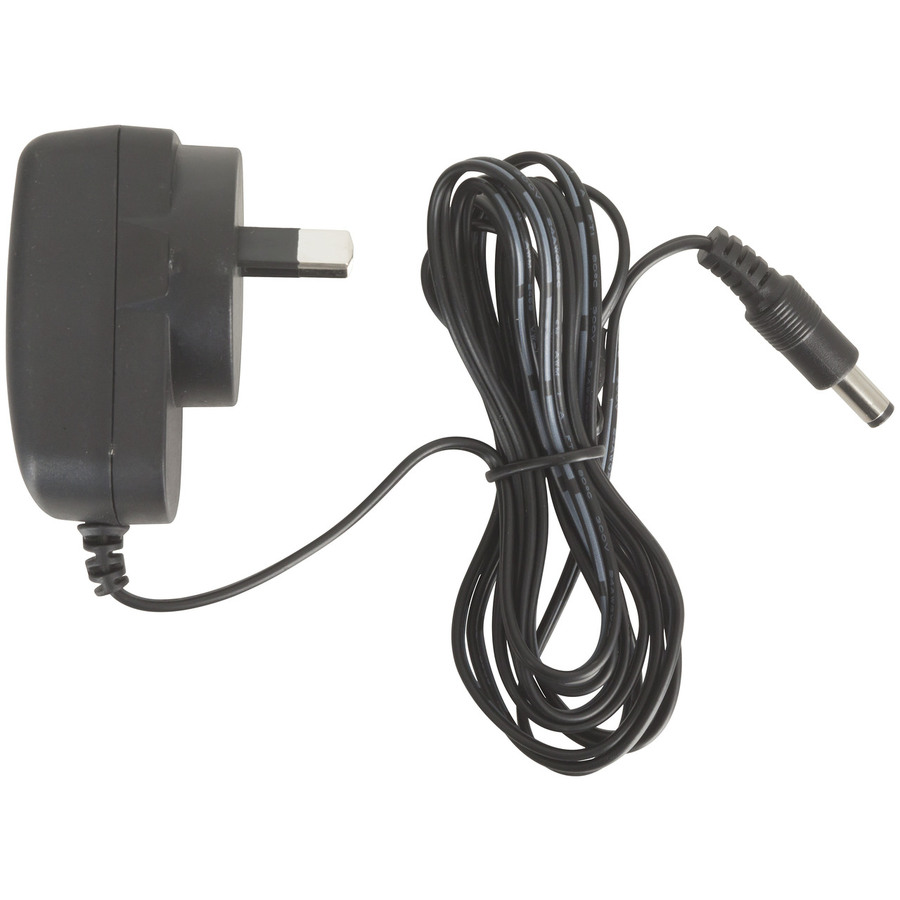

The latest in our range of AV senders. Will allow you to send your pay TV reception (or any other video source) to any part of the house. Includes a wideband IR remote control extender so it will cope with even the fussiest remote controls. 5.8GHz transmission frequency ensures freedom from wireless network interference. Includes power supplies, AV cables and extension IR LED.

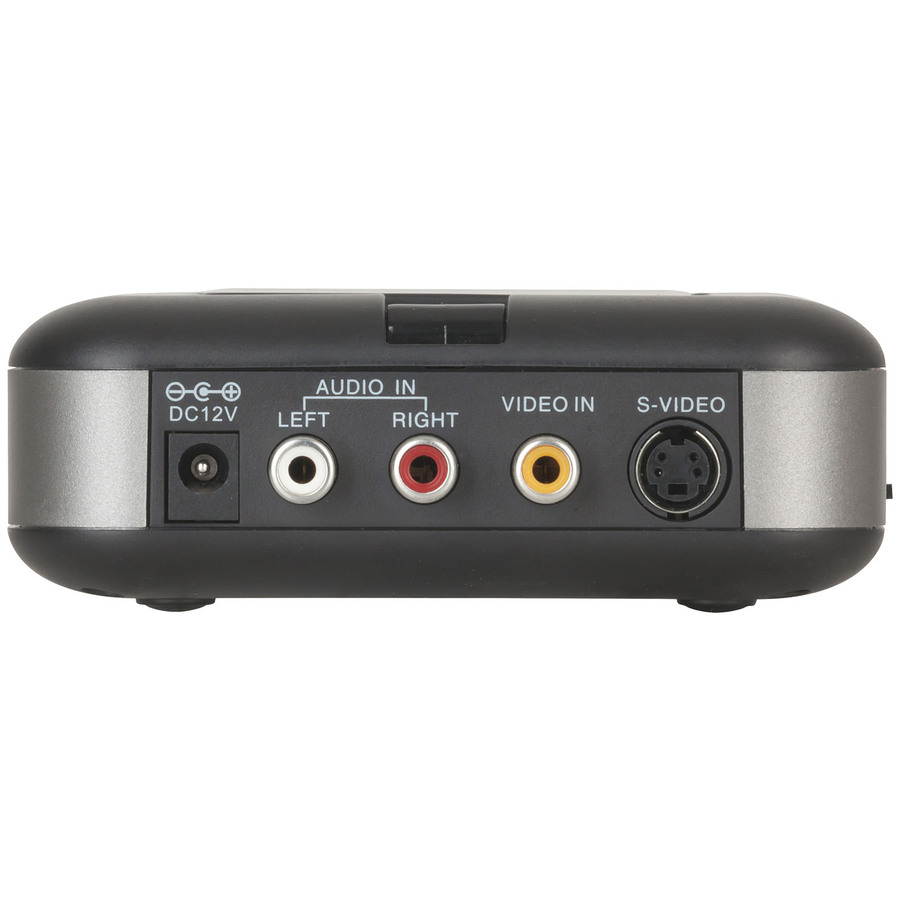

Transmitter:

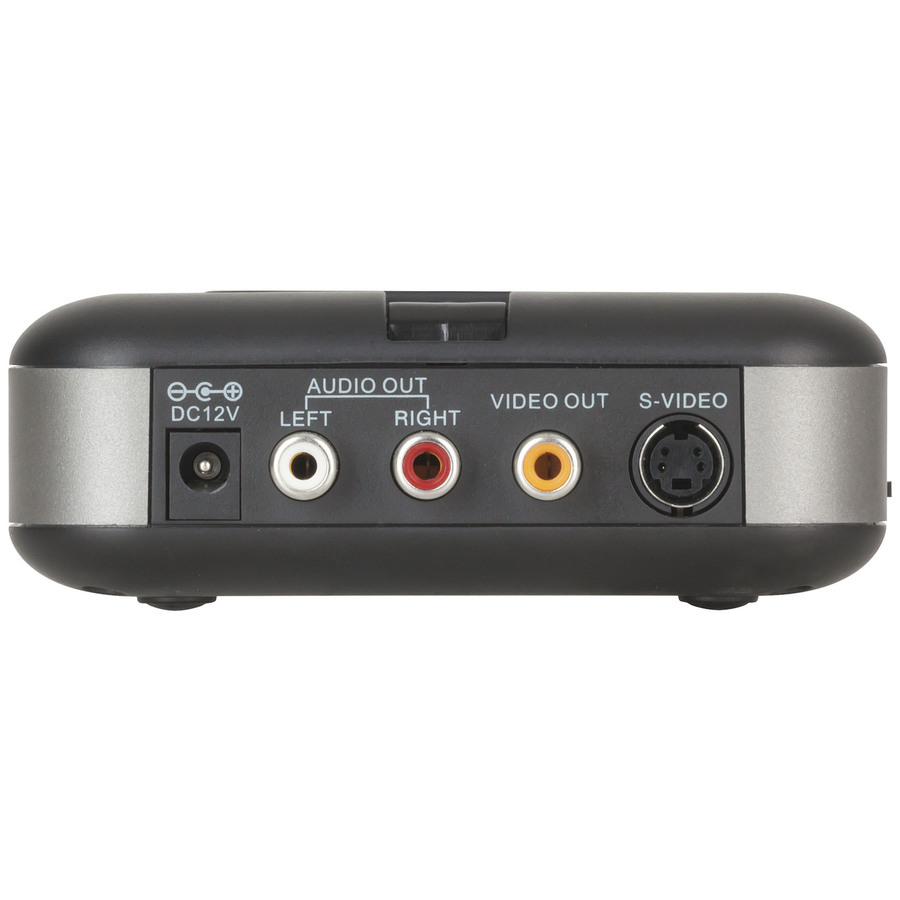

•   Video: Composite or S-video
•   Audio: Stereo RCA
•   Output Level: 13dBm
•   Operating Frequency: 5790, 5828, 5847, 5866MHz
•   Effective Range: 60m clear line of sight
•   Power: 12VDC 250mA

IR Transmitter/Receiver
•   Operating Frequency: 433.92MHz
•   IR Carrier Frequency: 38/56kHz Selectable

    Specifications

    Packaged Dimensions

    Packaged Length
    		 26cm
    Packaged Width
    		 25.2cm
    Packaged Weight
    		 0.858kg
    Packaged Volume
    		 5.2416l
    Packaged Height
    		 8cm

    AV Transmitters

    Type of Signal
    		 Composite Video and Audio
    Input Connection
    		 RCA
    Transmission Mode
    		 Digital

    Wireless Transmission

    Transmitter Antenna Style
    		 Flat Panel
    Receiver Antenna Style
    		 Flat Panel
    Transmission frequency
    		 5.8GHz

    Power from Plugpack

    DC Plugpack Voltage
    		 12V
    Connection Size (Inner Diameter)
    		 2.5mm
    Suitable PSU Included
    Item Connection
    		 Barrel Plug
    DC Current Draw
    		 250mA

    Product Availability

    Availability
    		 Stocked item
    Warranty: 12 Months
