CAT. No. CW2194

WooferMidrange Speaker Driver - 6.5 Inch
product image thumb
product image thumb
product image thumb
product image thumb

WooferMidrange Speaker Driver - 6.5 Inch

$43.95
These Response woofers are excellent for replacement or for new speaker design constructions. Not only are they price competitive and perform very well, but they also look fantastic!
Available

Description

1 Year Warranty

These Response woofers are excellent for replacement or for new speaker design constructions. Not only are they price competitive and perform very well, but they also look fantastic!

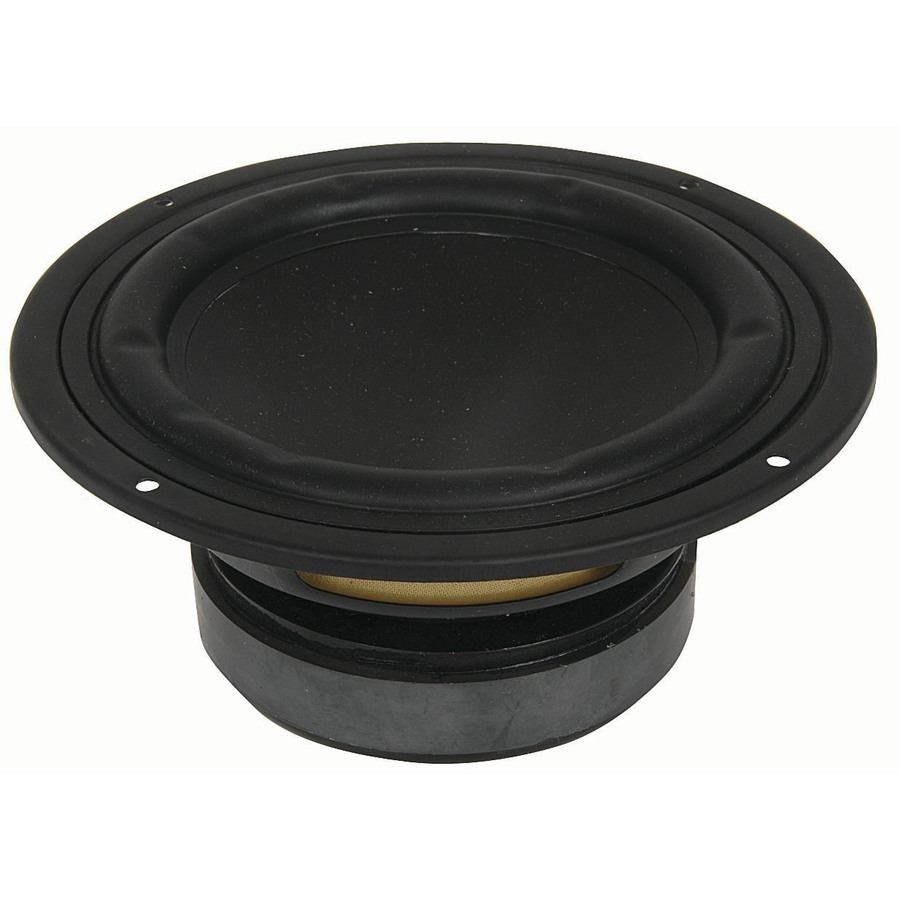

The concave treated paper cone matched with rubber surround provides smooth overall response. Equipped strong steel frame baskets, high power magnet and voice coils, these drivers will produce massive quantities of clean bass output for any musical application.

    Specifications

    Speaker Specifications

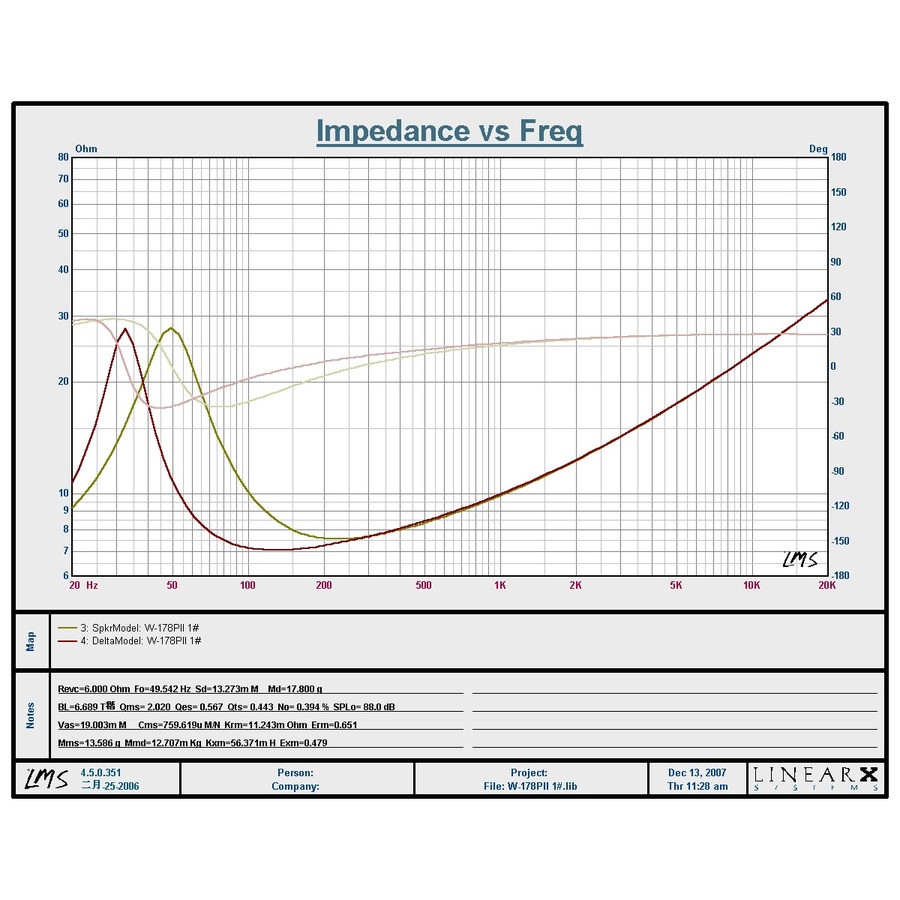

    Resonant Frequency
    		 49.5Hz
    Nominal Impedance
    		 8?

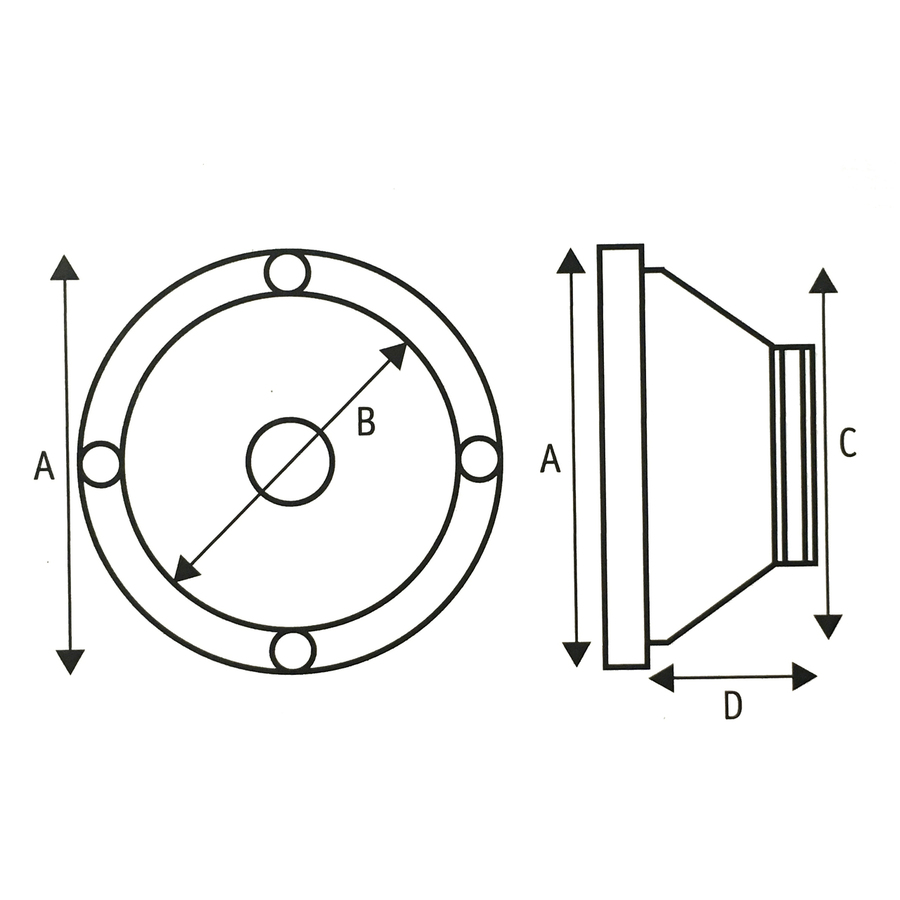

    Mounting Hole Diameter (B)
    		 168mm
    Recommended Speaker Box Volume
    		 19l
    Driver Material
    		 Coated Paper
    Mechanical Q (Q<sub>ms</sub>)
    		 2.02&nbsp;
    Magnetically Shielded
    Speaker Type
    		 Woofer/Midrange
    Driver Channels
    		 Single Driver
    Total Q (Q<sub>ts</sub>)
    		 0.44&nbsp;
    Electrical Q Factor (Q<sub>es</sub>)
    		 0.57&nbsp;
    RMS Power Rating
    		 60W
    Equivalent Volume (V<sub>as</sub>)
    		 19l

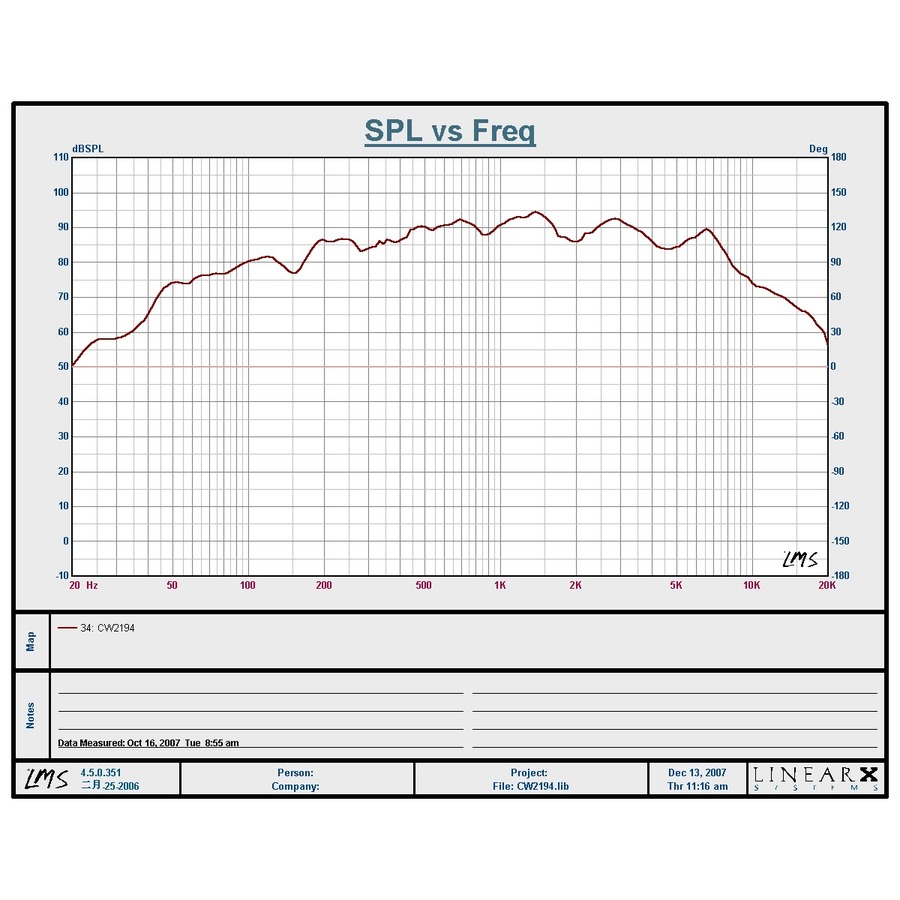

    Frequency Response
    		 44Hz-7kHz
    Side-to-Side Diameter (A)
    		 178mm
    DC Coil Resistance (R<sub>e</sub>)
    		 6?
    Sensitivity (SPL@1W
    1m)
    Cutout Diameter (C)
    		 145mm
    Insert Depth (D)
    		 77mm

    Cutout Required

    Cutout shape
    		 Round

    Product Mounting

    Attachment / Securing Method
    		 Screw Down
    Mounting Method
    		 Front of Panel

    Product Dimensions

    Diameter
    		 178mm

    Packaged Dimensions

    Packaged Length
    		 19.6cm
    Packaged Width
    		 19.4cm
    Packaged Weight
    		 1.836kg
    Packaged Volume
    		 3.840424l
    Packaged Height
    		 10.1cm

    Product Availability

    Availability
    		 Stocked item
    Warranty: 12 Months

    Downloads

    CW2194-dataSheetMain.pdf
