13-42"LCD Monitor Swing Arm Wall Bracket with 2 Slide In Locking Plates

$74.95
Designed to mount flat panel screens from 13 to 42 inches and weighing up to 15kg onto a wall. Universal VESA standard compliance.
Available

Description

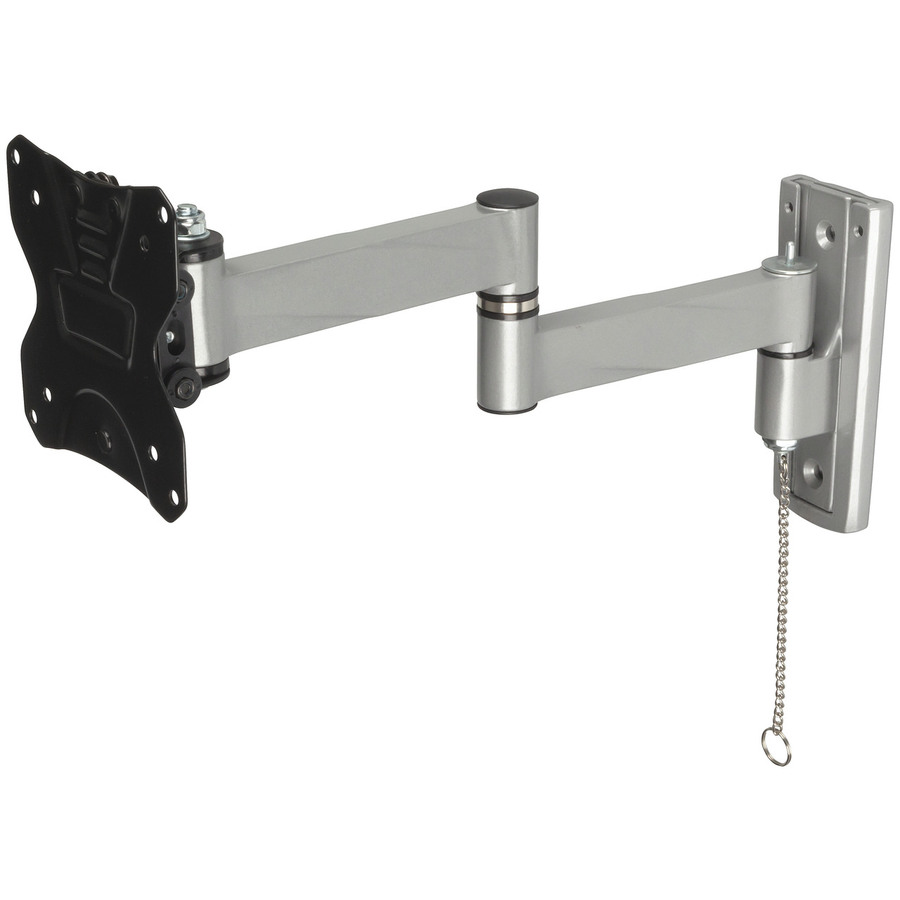

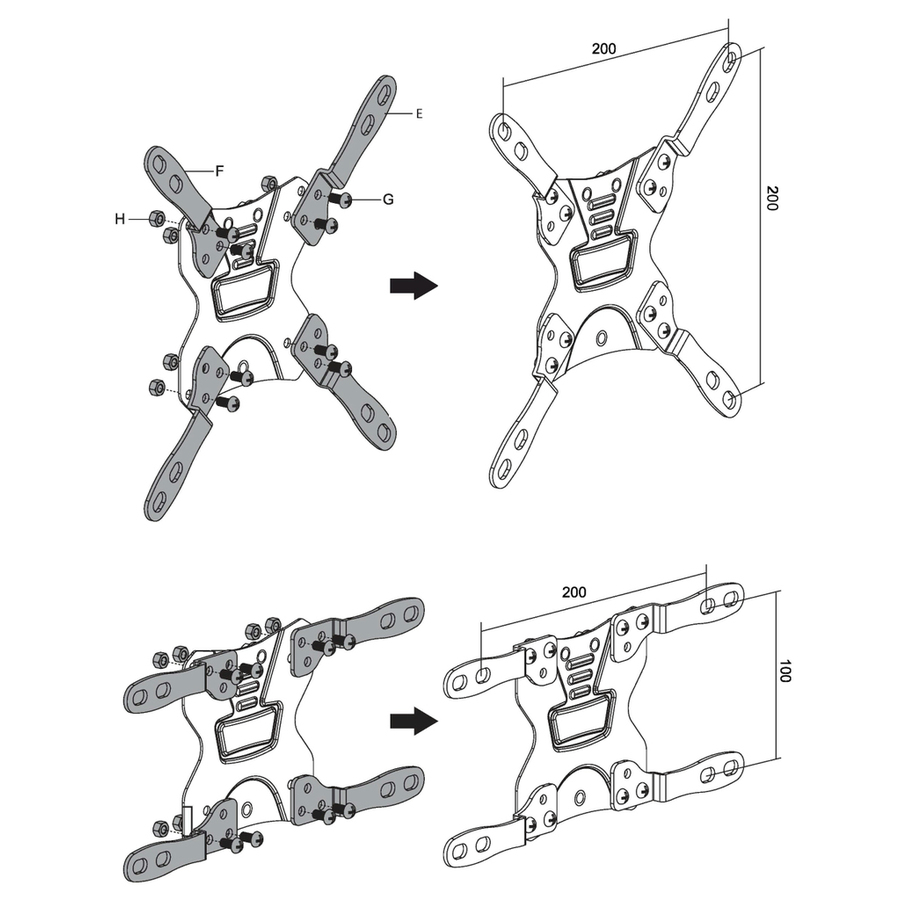

An articulating wall mount for 13"-42" flat-panel TVs up to 15kg. Suitable for RV, motor home, caravan and anywhere that a TV needs to be protected from damage while travelling. Tilt, swivel and extend your TV up to 366mm from the wall in every direction for easy viewing. It can also can be folded when not in use for saving space. In-arm cable clip routes cables for a clean appearance. VESA-compatible fits 75 x 75, 100 x 100, 200 x 100, 200 x 200 hole patterns.

Features:
• Easy-grip knobs for quick tilt and lock

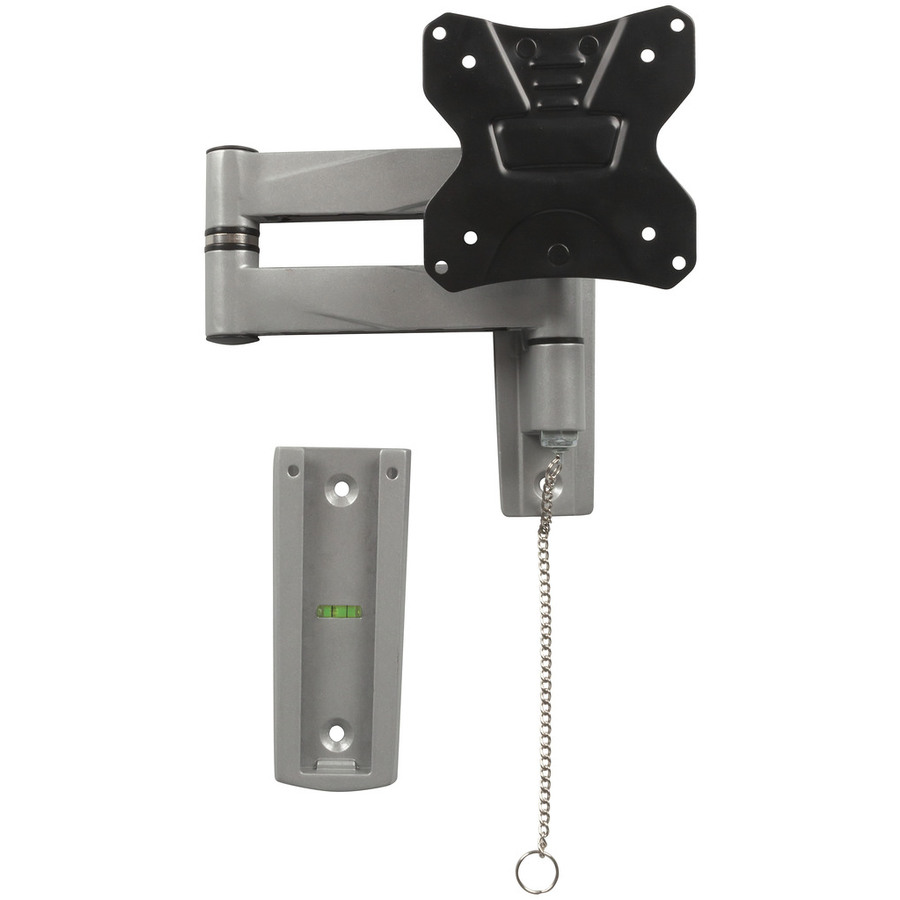

• Built-in level adjustment for perfect positioning
• Cable management to hide cables
• Stopping pin locks arm to prevent transit damage

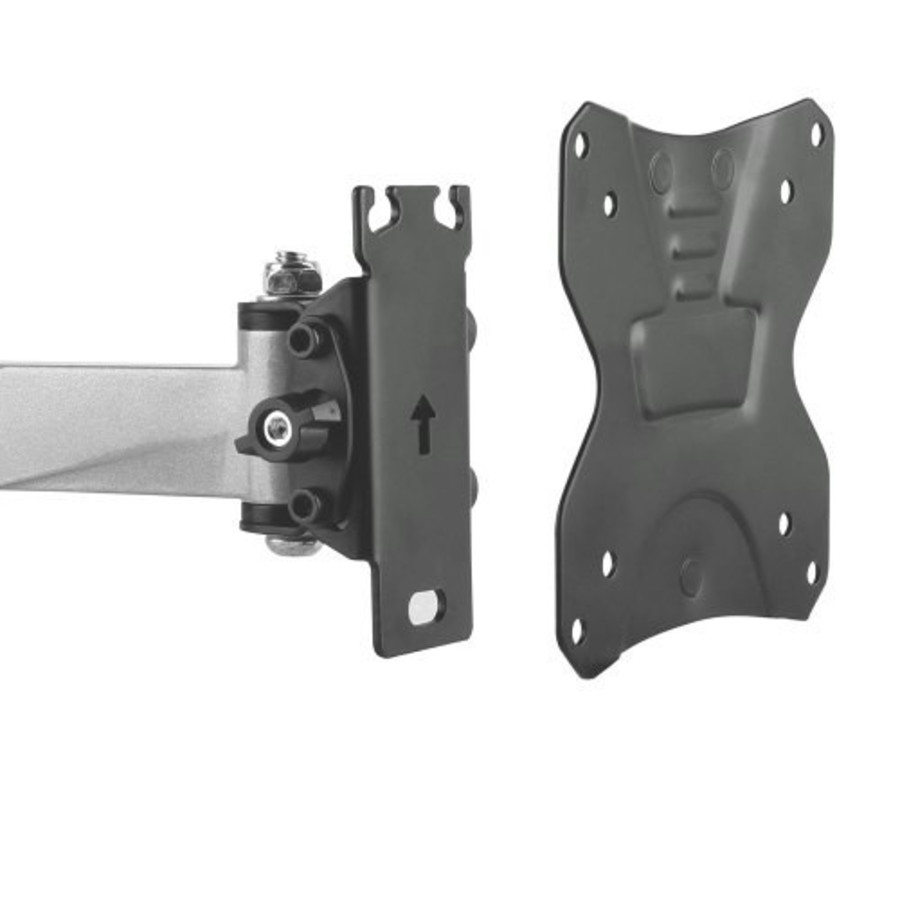

• Detachable VESA plate design for easy installation

    Specifications

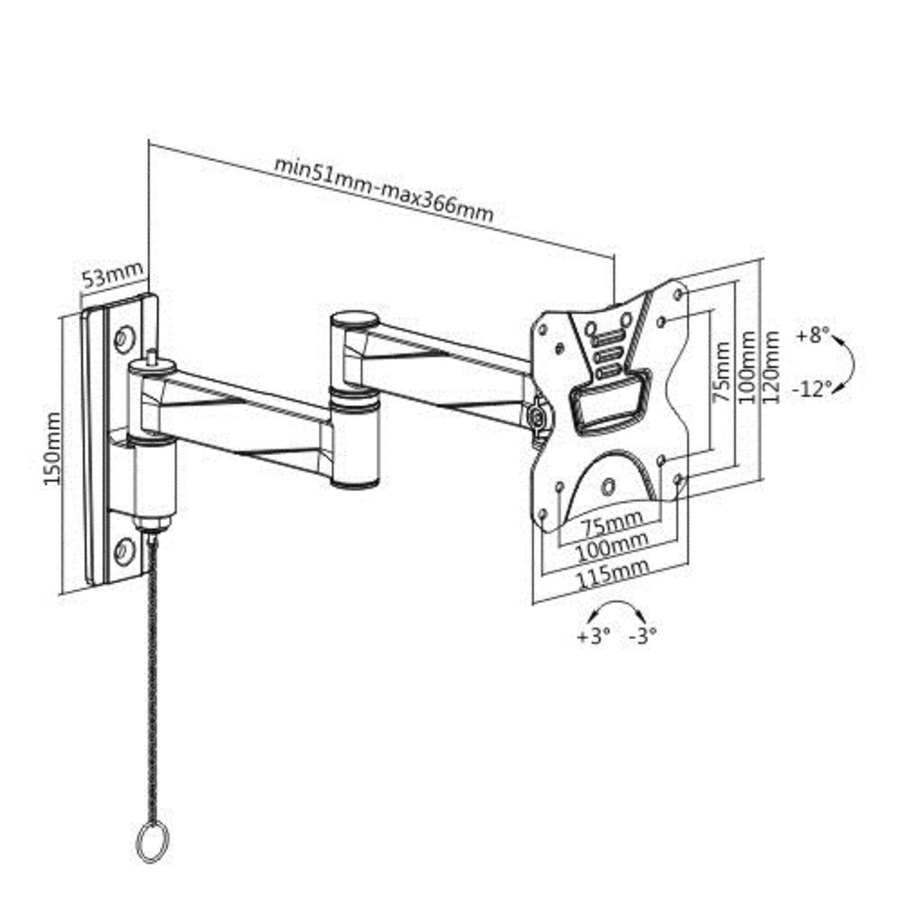

    Internal or Sub-part Dimensions

    Height
    		 115mm, 150mm
    Width
    		 115mm, 53mm
    Dimension details
    		 Mounting Plate Dimensions, Wall Plate Dimensions

    Additional Dimensions

    Length
    		 366mm
    Dimensions details
    		 Maximum Extension Length

    Outer Material

    Make of outer material
    		 Iron, Aluminimum

    Product colour

    Colour
    		 Black, Grey

    Bracket

    Type
    		 Television
    Distance from Wall to Mounted Item
    		 51mm-366mm
    Suitable Screen Sizes
    		 13in-27in
    Mounted Item Weight
    		 15kg
    Wall Mount Type
    		 Wall Plate
    Swivel Angle
    		 90°--90°
    Tilt Angle
    		 8°--12°

    Product Mounting

    Attachment / Securing Method
    		 Screw Down
    Mount Screw Quantity
    		 2pc

    Product Dimensions

    Height
    		 115mm, 150mm
    Width
    		 115mm, 53mm
    Dimension details
    		 Mounting Plate Dimensions, Wall Plate Dimensions

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 24cm
    Packaged Width
    		 21.3cm
    Packaged Weight
    		 2.024kg
    Packaged Volume
    		 3.3228l
    Packaged Height
    		 6.5cm

    Downloads

    CW2811-manualMain.pdf
