CAT. No. DC1106

NEXTECH 1W UHF Transceiver
product image thumb
product image thumb
product image thumb

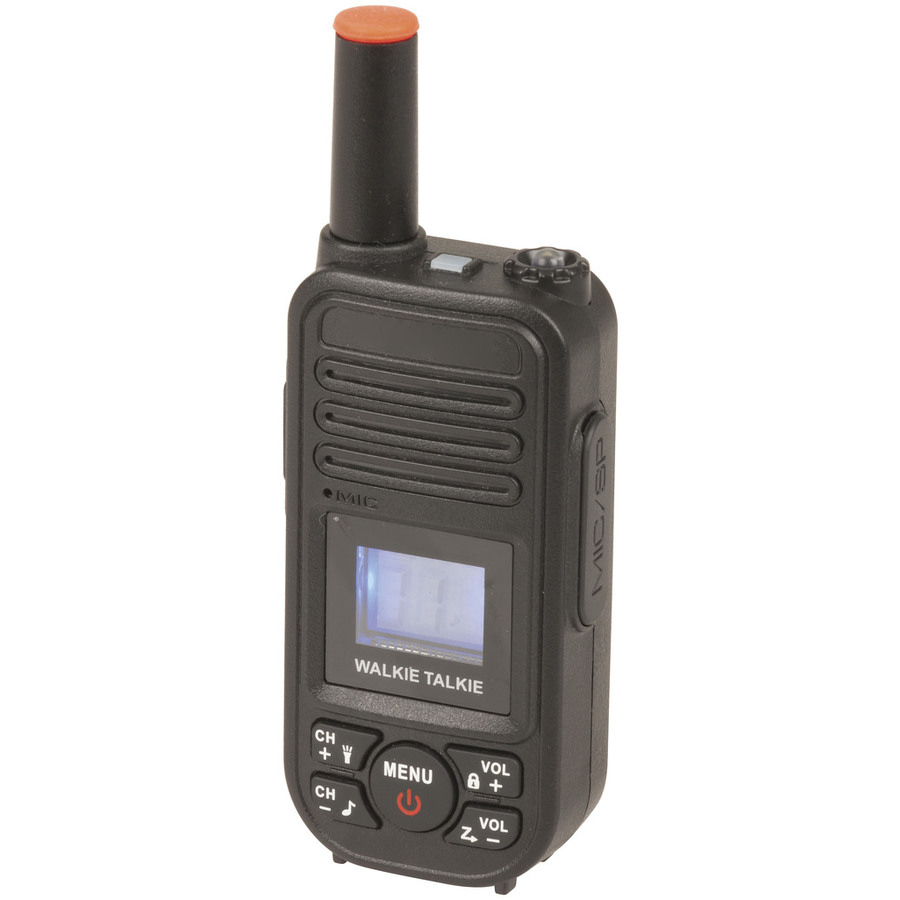

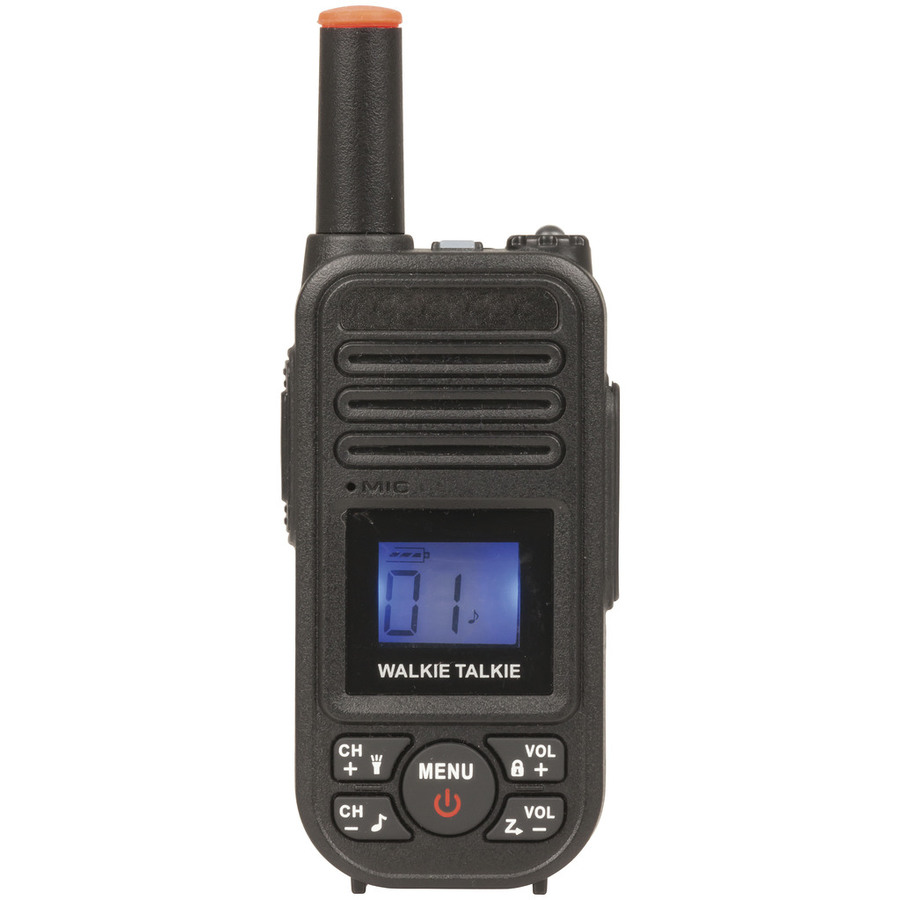

NEXTECH 1W UHF Transceiver

$59.95
Compact in size but packed with plenty of features suitable for all manner of recreational and professional activities such as building sites, IT-cablers, electricians, inter-car road trip communication and more.

Out of Stock

Description

1 Year Warranty
Hazardous Materials

This 80 channel UHF transceiver is no toy. It is compact in size but packed with plenty of features, suitable for all manner of recreational and professional activities such as building sites, IT-cablers, electricians, inter-car road trip communication, etc. Features include VOX hands-free operation, 155 group CTCSS/DCS sub-channels to reduce interference from other users on the same channel, 9 level squelch, scan/monitor, integrated LED torch, and voice encryption (scrambler) for private conversations. The built-in rechargeable Li-ion battery can be charged from any USB power source. A battery save function helps conserve battery power, along with a selectable low power setting (500mW) for local communications (such as around the campsite.). A mains power adaptor is included with dual USB output to charge a second transceiver or other USB gadgets at the same time.

Features:
- 155 Group CTCSS/DCS Private Code (Sub-Channel)
- iVOX/VOX Hands-free Operation
- LED Torch
- Rechargeable High Capacity Li-ion battery
- Voice Encryption (Scrambler)
- Battery Save function/Low Power Alert
- High/Low Power Selectable (0.5W Low, 1W High)
- Squelch Level (1-9)


    Specifications

    Operating Temperature


    Operating Temperature
    -25°C-60°C

    Classified as dangerous goods


    Dangerous in Road Freight
    DG Class
    9
    Dangerous in Air Freight
    DG UN Number
    3481
    DG Pack Group
    II - Medium Danger
    DG Ship Name
    3481 - Lithium Ion Batteries Packed With Equipment
    DG Hazardous Chemical Code
    4W
    Battery Watt Hour Rating (Required for Lithium Batteries)
    7.92Wh

    Ingress Protection Rating


    IP Rating
    IP65
    Dust/Particle Ingress Protection
    6 - Dust tight, no ingress of dust
    Liquid/Moisture Ingress Protection
    5 - Water jets

    Transceivers and Communication


    Line of Sight Range
    5km-10km
    Audio Output Power
    500mW
    Communications Band
    CB
    VOX function
    Transceiver Power Source
    Internal Battery
    Transceiver Roger Beep
    Frequency Band
    UHF
    Key Lock Function
    Transceiver Modes
    FM
    Number of included CB Radios
    1pc
    Transceiver Antenna Impedance
    50?
    CTCSS transceiver
    Repeater Function
    Radio Channels
    80
    CB Output Power
    1W
    How is unit mounted?
    Handheld
    Transceiver Sensitivity
    0.25mV

    Power from rechargeable battery


    Run time conditions
    5% transmit, 5% receive, 90% standby
    Shape
    Lithium Rechargeable Battery Cell/Pack
    Run time
    12hr
    Voltage
    3.7V
    Mains rechargeable
    Battery quantity
    1pc
    Rechargeable battery required to power
    Main Product
    Batteries included

    Product Dimensions


    Height
    95mm
    Width
    49mm
    Dimension details
    Excluding Antenna
    Depth
    35mm
    Weight
    91gr

    Product Availability


    Availability
    Stocked item

    Packaged Dimensions


    Packaged Length
    17cm
    Packaged Width
    13.5cm
    Packaged Weight
    0.231kg
    Packaged Volume
    1.03275l
    Packaged Height
    4.5cm
    Warranty: 12 Months
