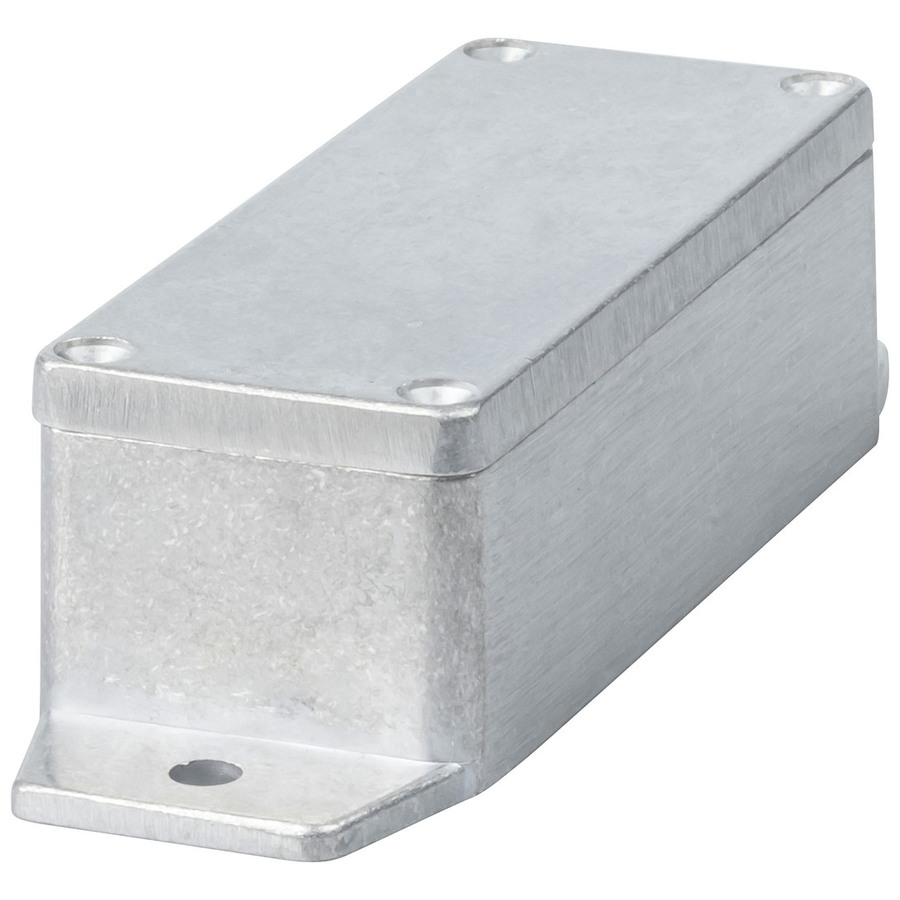

IP65 Sealed Diecast Aluminium Boxes - Flanged - 90(W)x36(D)x30(H)mm
IP65 Sealed Diecast Aluminium Boxes - Flanged - 90(W)x36(D)x30(H)mm

CAT. No. HB5029

IP65 Sealed Diecast Aluminium Boxes - Flanged - 90(W)x36(D)x30(H)mm
product image thumb

IP65 Sealed Diecast Aluminium Boxes - Flanged - 90(W)x36(D)x30(H)mm

$16.95
Sealed aluminium enclosures for external use.
Available

Description

Sealed aluminium enclosures for external use are provided with flanges and holes for wall mounting. Lid fixing bolts are located outside the sealing area to ensure better sealing. Made from aluminium alloy ADC-10 (JIS) and provides protection against dust and moisture (IP65). Features racks and guides for mounting a PCB horizontally or vertically.

    Specifications

    Product Dimensions

    Height
    		 30mm
    Width
    		 90mm
    Depth
    		 36mm

    Packaged Dimensions

    Packaged Length
    		 12.4cm
    Packaged Width
    		 4.8cm
    Packaged Weight
    		 0.114kg
    Packaged Volume
    		 0.196416l
    Packaged Height
    		 3.3cm

    Enclosures and Boxes

    Material
    		 Aluminium

    Ingress Protection Rating

    IP Rating
    		 65

    Product Availability

    Availability
    		 Stocked item
