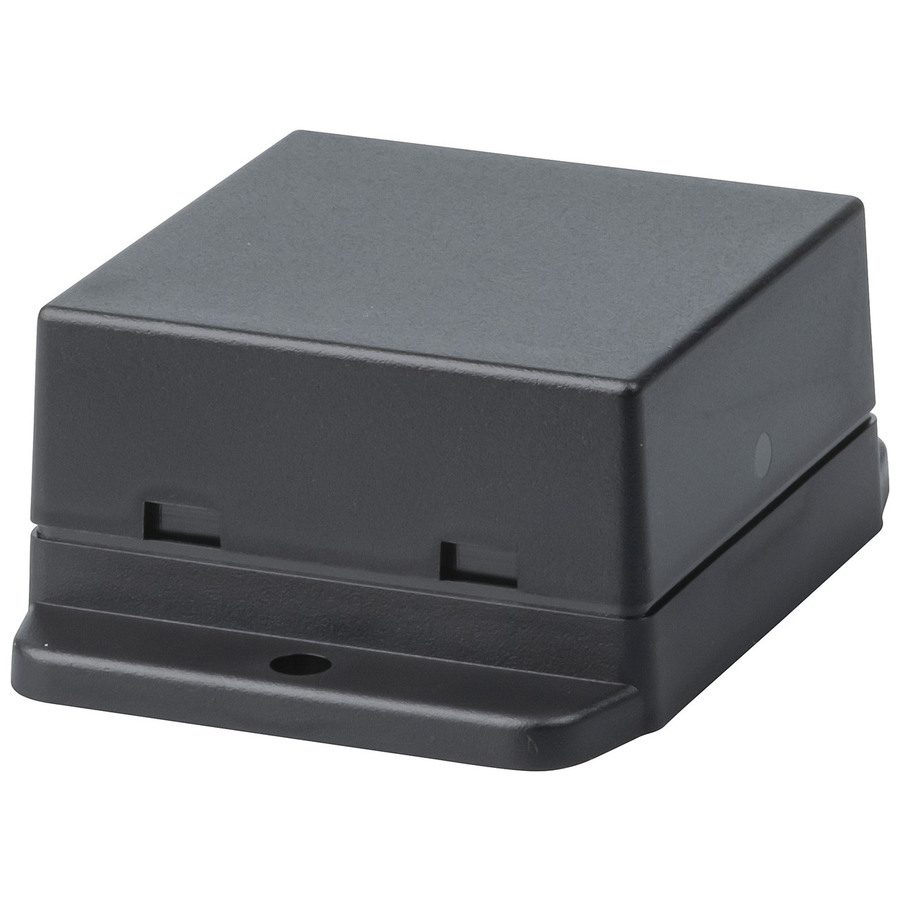

Snap Fit ABS Enclosure - 50 x51 x 27mm
Snap Fit ABS Enclosure - 50 x51 x 27mm

CAT. No. HB6006

Snap Fit ABS Enclosure - 50 x51 x 27mm
product image thumb

Snap Fit ABS Enclosure - 50 x51 x 27mm

$5.95
A range of black ABS enclosures with side flanges allowing wall, or even ceiling mount. Snap fit design locks together to enclose your circuitboard or...
Available

Description

A black ABS enclosure with side flanges allowing wall, or even ceiling mount.  Snap fit design locks together to enclose your circuitboard or project inside.

Features:
Wall mount holes: 2 x 4.5mm Dia.
Internal holes: 4 x 2.6mm x 6mm
Internal dimensions: 45(L) x 46(W) x 18(H)mm
External dimensions: 70(L) x 51(W) x 27(H)mm


    Specifications

    mountable enclosure

    type of mount
    		 bulk head

    23 EC - Enclosures & Panel Hardware

    box or enclosure

    Product Dimensions

    Length
    		 70.4mm, 70mm
    Height
    		 27mm
    Width
    		 51mm, 51mm
    Dimension details
    		 Box Dimensions, Base Dimensions
    Weight
    		 50g

    Internal or Sub-part Dimensions

    Length
    		 70.4mm, 70mm
    Width
    		 51mm, 51mm
    Dimension details
    		 Box Dimensions, Base Dimensions

    Packaged Dimensions

    Packaged Length
    		 8.7cm
    Packaged Width
    		 6.4cm
    Packaged Weight
    		 0.024kg
    Packaged Volume
    		 0.178176l
    Packaged Height
    		 3.2cm

    Enclosures and Boxes

    Material
    		 ABS

    Product colour

    Colour
    		 Black

    Product Availability

    Availability
    		 Stocked item
