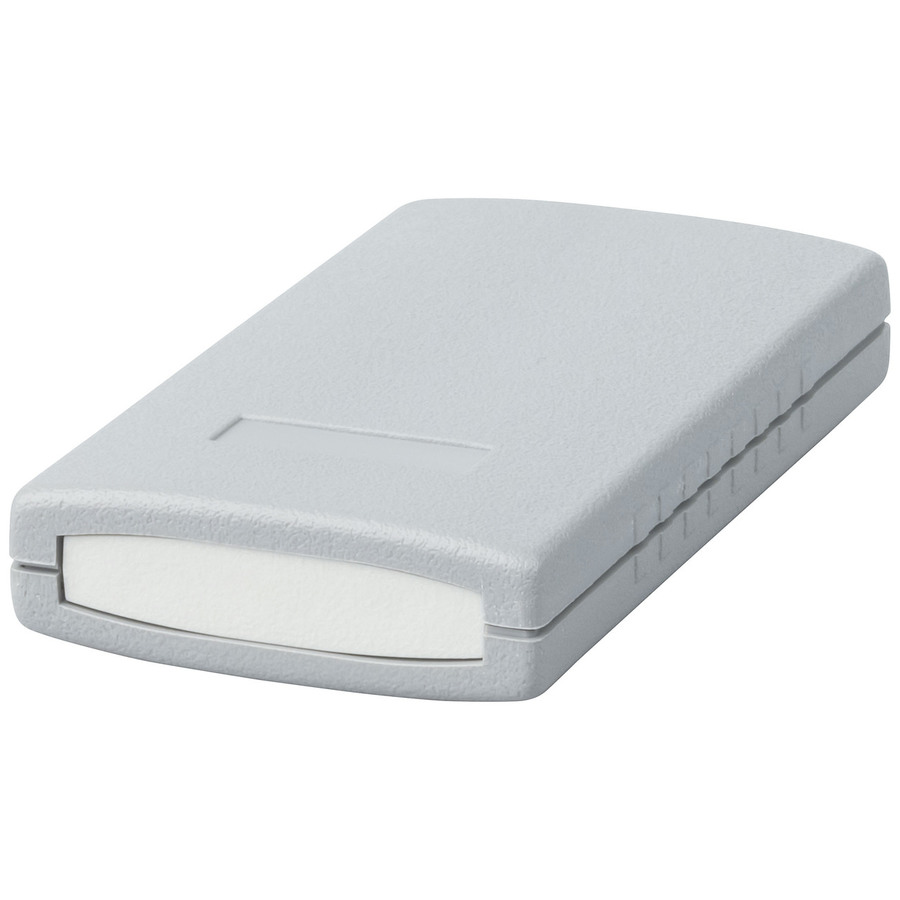

Plastic Molded Enclosures Dark Grey ABS - 90 x 50 x 16mm
Plastic Molded Enclosures Dark Grey ABS - 90 x 50 x 16mm
Plastic Molded Enclosures Dark Grey ABS - 90 x 50 x 16mm
Plastic Molded Enclosures Dark Grey ABS - 90 x 50 x 16mm

CAT. No. HB6030

Plastic Molded Enclosures Dark Grey ABS - 90 x 50 x 16mm
product image thumb
product image thumb
product image thumb

Plastic Molded Enclosures Dark Grey ABS - 90 x 50 x 16mm

$6.95
These are available in 2 different materials. High impact ABS with the base and lid moulded in light grey with dark grey end panels
Available

Description

These are available in 2 different materials.

Features:
• High impact ABS with the base and lid moulded in light grey with dark grey end panels
• Flame retardent ABS to UL- 94 VO
• Ideally suited for instrumentation and telecommunication equipment from hand held to lab and desk top

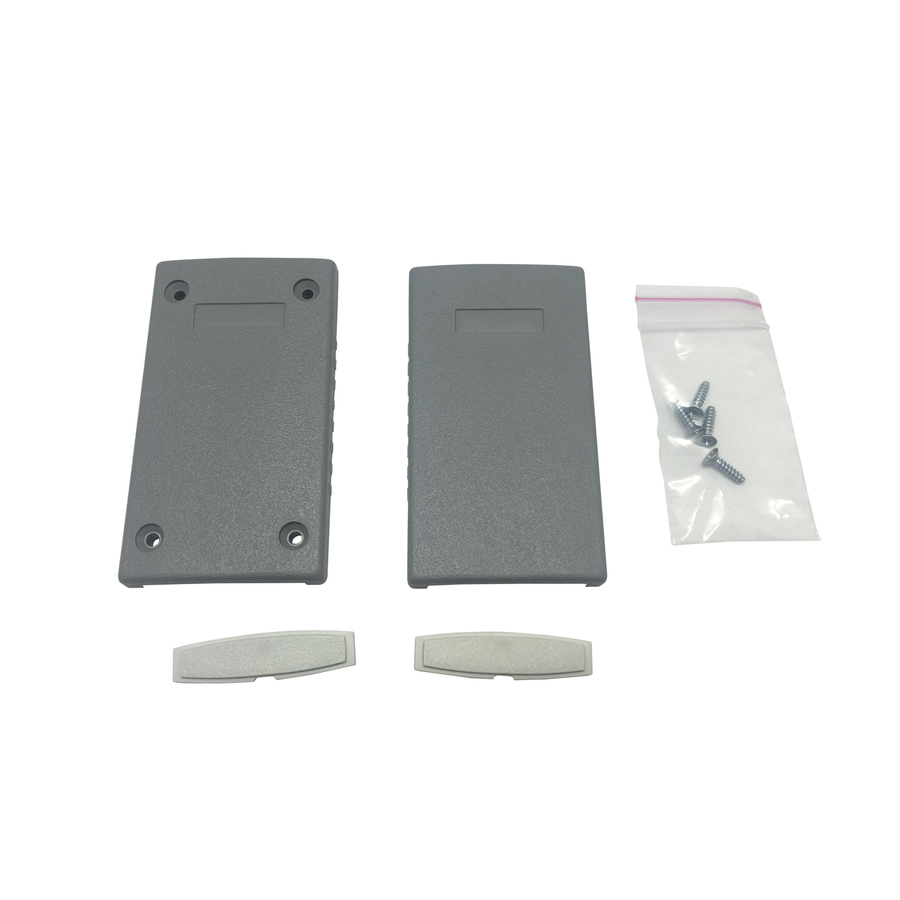

• These cases have a two part design with a tongue and groove joint between the top and bottom of the case, with specially designed end panels of the same material.
• Optional aluminium end panels are available on quantity orders
• The top & bottom is lightly textured which gives a non scratch surface & maintains the high quality finish

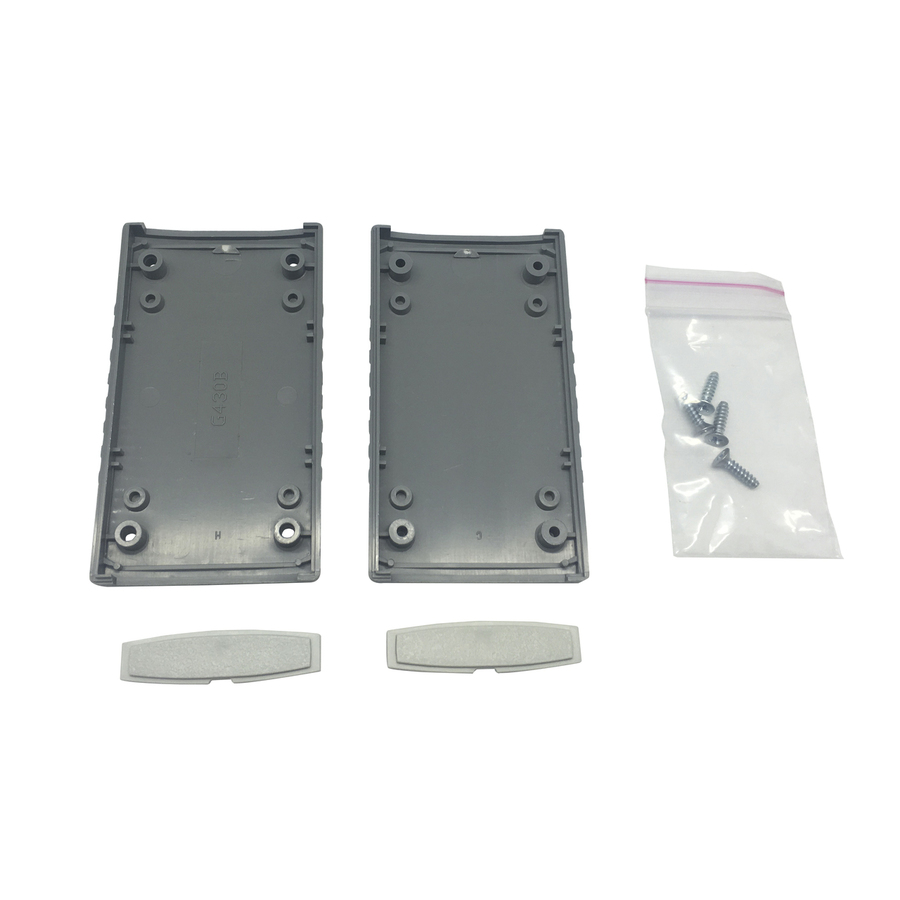

• There are guide slots provided for vertical mounting of PCBs
• Bosses are provided for the horizontal mounting of PCBs
• Four M- 3 screws hold the case together


    Specifications

    Product Dimensions

    Length
    		 90mm
    Width
    		 50mm
    Depth
    		 16mm

    Packaged Dimensions

    Packaged Length
    		 10.6cm
    Packaged Width
    		 10.2cm
    Packaged Weight
    		 0.034kg
    Packaged Volume
    		 0.172992l
    Packaged Height
    		 1.6cm

    Enclosures and Boxes

    PCB Internal Guide Slots
    Material
    		 ABS Plastic (Acrylonitrile Butadiene Styrene)

    Product colour

    Colour
    		 Dark Grey

    Ingress Protection Rating

    IP Rating
    		 54

    Product Availability

    Availability
    		 Stocked item
