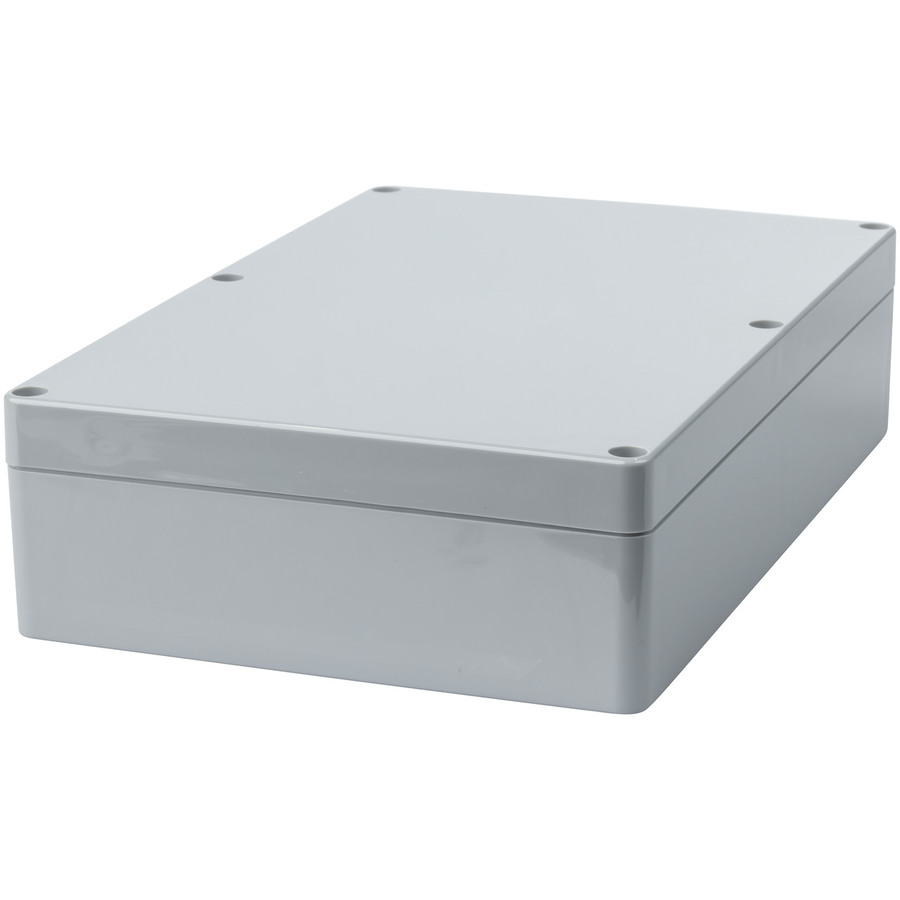

Sealed ABS Enclosure - 222 x 146 x 55mm
Sealed ABS Enclosure - 222 x 146 x 55mm
Sealed ABS Enclosure - 222 x 146 x 55mm

CAT. No. HB6130

Sealed ABS Enclosure - 222 x 146 x 55mm
product image thumb
product image thumb

Sealed ABS Enclosure - 222 x 146 x 55mm

$31.95
Gainta enclosure, made with ABS, moulded in dark grey
Available

Description

5 Year Warranty

Features:

- Operating temperature: minus 20oC to 100oC

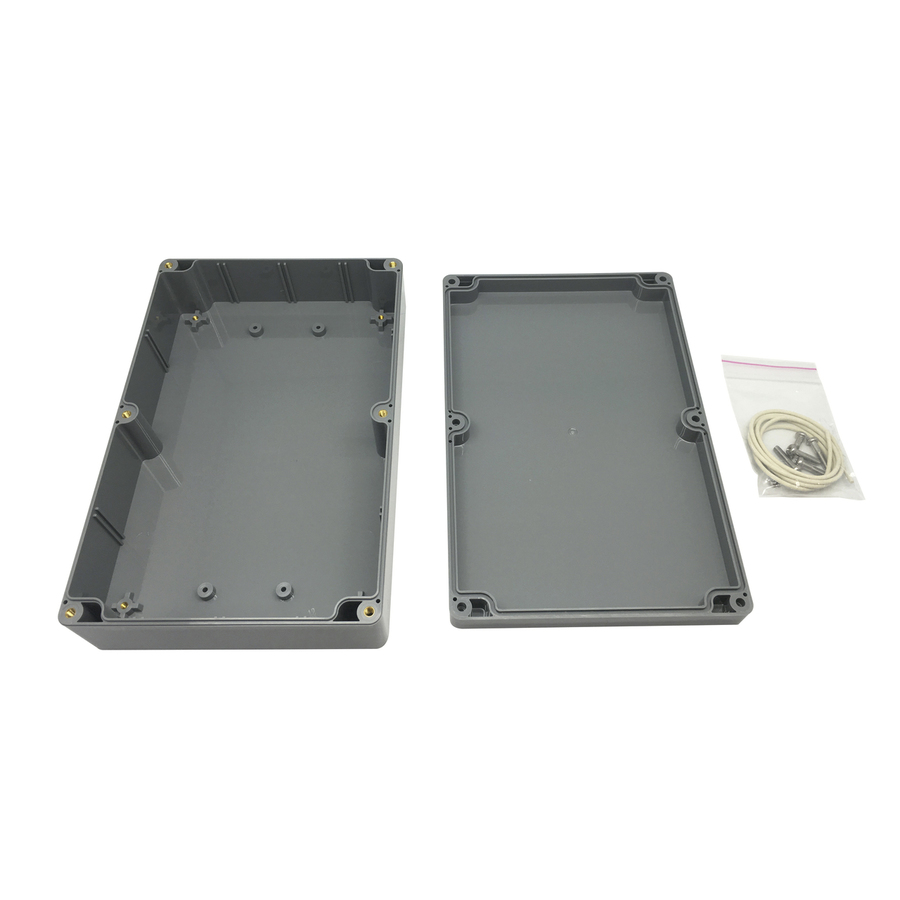

- Bosses on internal base allow fixing of PCBs horizontally, or connection of terminals etc.
- The lid and base incorporate a tongue and groove sealing systemwith a EPDM gasket
- Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
- Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust


    Specifications

    Product Dimensions

    Height
    		 55mm
    Width
    		 222mm
    Depth
    		 146mm

    Packaged Dimensions

    Packaged Length
    		 23.3cm
    Packaged Width
    		 16cm
    Packaged Weight
    		 0.38kg
    Packaged Volume
    		 2.2368l
    Packaged Height
    		 6cm

    Enclosures and Boxes

    Gasket sealing system
    PCB Internal Guide Slots
    Ventilation Holes
    Material
    		 ABS Plastic (Acrylonitrile Butadiene Styrene)
    Internal Mounting Posts
    Lid Screws
    		 6pc

    Ingress Protection Rating

    IP Rating
    		 IP65
    Dust/Particle Ingress Protection
    		 6 - Dust tight, no ingress of dust
    Liquid/Moisture Ingress Protection
    		 5 - Water jets

    Product Availability

    Availability
    		 Stocked item
    Warranty: 60 Months

    Downloads

    HB6130-dataSheetMain.pdf
