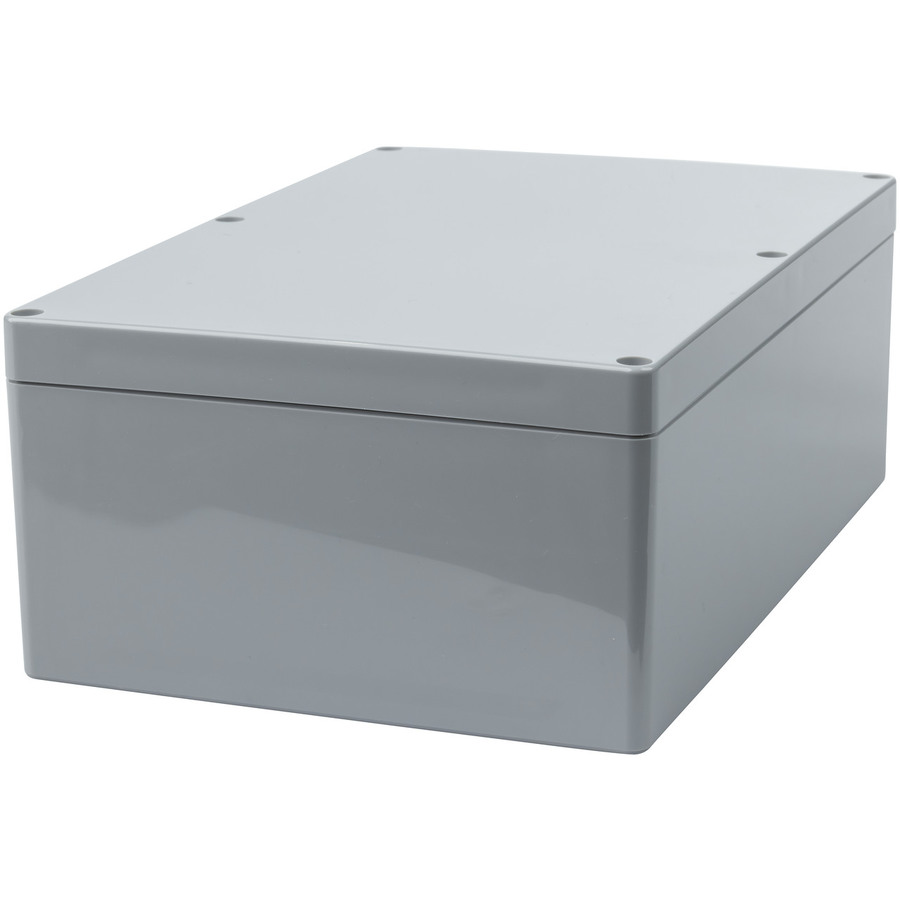

Sealed ABS Enclosure - 240 x 160 x 90mm
Sealed ABS Enclosure - 240 x 160 x 90mm
Sealed ABS Enclosure - 240 x 160 x 90mm

CAT. No. HB6134

Sealed ABS Enclosure - 240 x 160 x 90mm
product image thumb
product image thumb

Sealed ABS Enclosure - 240 x 160 x 90mm

$41.95
Gainta enclosure, made with ABS, moulded in dark grey
Available

Description

5 Year Warranty

Features:

- Operating temperature: -20 to 100 degrees

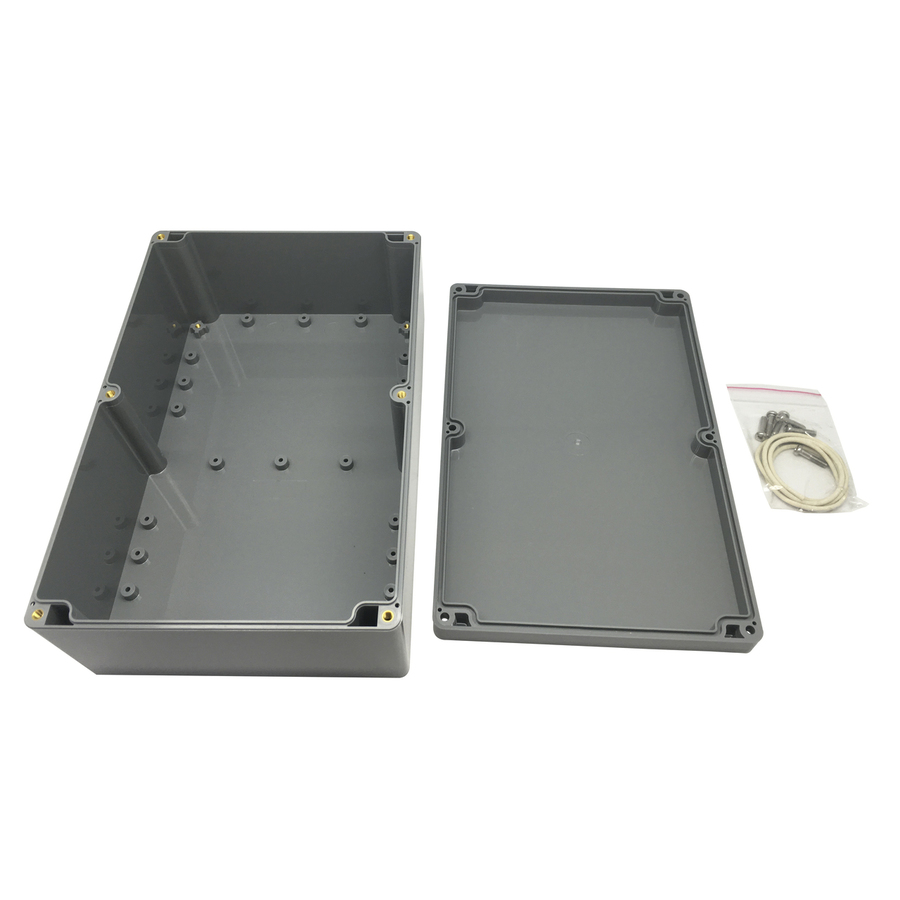

- Bosses on internal base allow fixing of PCBs horizontally, or connection of terminals etc.
- The lid and base incorporate a tongue and groove sealing system with a EPDM gasket
- Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
- Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust


    Specifications

    Product Dimensions

    Height
    		 90mm
    Width
    		 240mm
    Depth
    		 160mm

    Packaged Dimensions

    Packaged Length
    		 23.9cm
    Packaged Width
    		 16cm
    Packaged Weight
    		 0.552kg
    Packaged Volume
    		 3.51808l
    Packaged Height
    		 9.2cm

    Enclosures and Boxes

    Gasket sealing system
    PCB Internal Guide Slots
    Ventilation Holes
    Material
    		 ABS Plastic (Acrylonitrile Butadiene Styrene)
    Internal Mounting Posts
    Lid Screws
    		 6pc

    Product colour

    Colour
    		 Dark Grey

    Ingress Protection Rating

    IP Rating
    		 IP65
    Dust/Particle Ingress Protection
    		 6 - Dust tight, no ingress of dust
    Liquid/Moisture Ingress Protection
    		 5 - Water jets

    Product Availability

    Availability
    		 Stocked item
    Warranty: 60 Months

    Downloads

    HB6134-dataSheetMain.pdf
