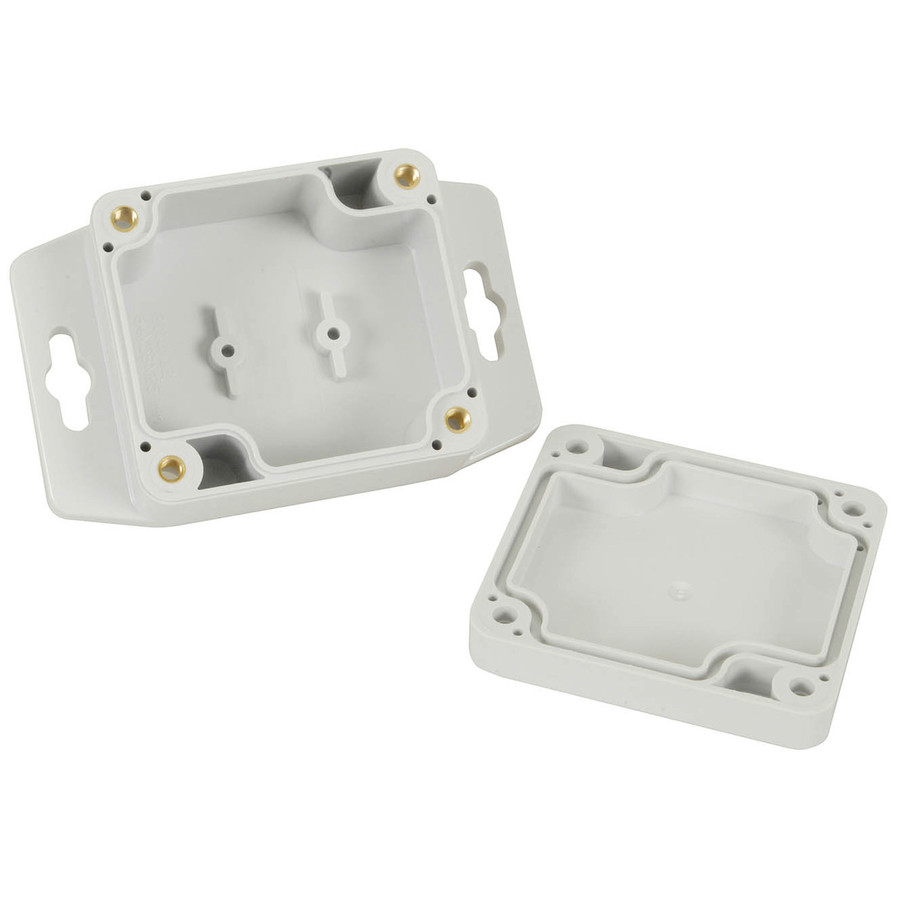

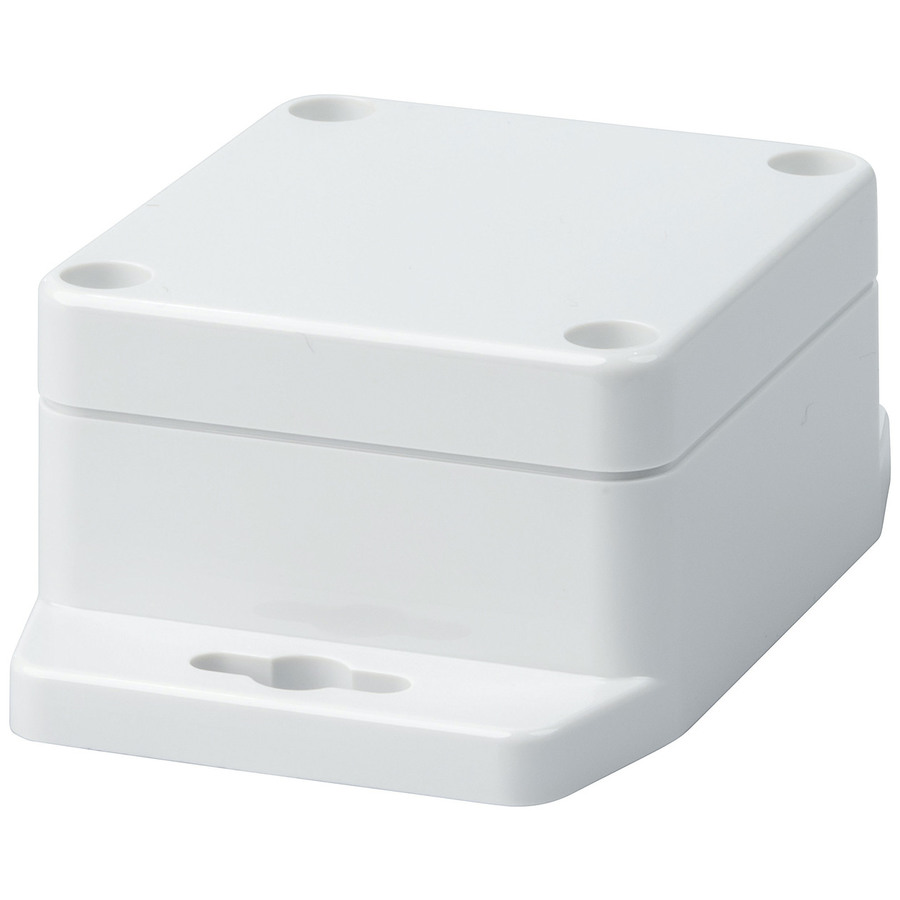

Polycarbonate Enclosure with Mounting Flange (base)
Polycarbonate Enclosure with Mounting Flange (base)
Polycarbonate Enclosure with Mounting Flange (base)

CAT. No. HB6211

Polycarbonate Enclosure with Mounting Flange (base)
product image thumb
product image thumb

Polycarbonate Enclosure with Mounting Flange (base)

$14.95
Made with Polycarbonate material and moulded in a light grey colour.
Available

Description

Features:
• Made with Polycarbonate material
• Moulded in light grey.
• Operating temperature: -40 to +125C
• The lid and base incorporate a tongue and groove sealing system with a EPDM gasket
• Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
• Designed to IP65 of IEC 529 and NEMA 4 (dust and hose proof)
• Internal guide slots for mounting PCB assemblies vertically (not on HB-6230)
• Dimensions: 64 x 58 x 35mm

    Specifications

    Product Dimensions

    Length
    		 64mm
    Height
    		 35mm
    Width
    		 58mm

    Packaged Dimensions

    Packaged Length
    		 10cm
    Packaged Width
    		 6cm
    Packaged Weight
    		 0.077kg
    Packaged Volume
    		 0.21l
    Packaged Height
    		 3.5cm

    Enclosures and Boxes

    PCB Internal Guide Slots
    Lid Screws
    		 4pc

    Product colour

    Colour
    		 Light Grey

    Ingress Protection Rating

    IP Rating
    		 65

    Product Availability

    Availability
    		 Stocked item

N/A
