Sealed Polycarbonate Enclosures 115 x 65 x 40
Sealed Polycarbonate Enclosures 115 x 65 x 40
Sealed Polycarbonate Enclosures 115 x 65 x 40
Sealed Polycarbonate Enclosures 115 x 65 x 40

CAT. No. HB6212

Sealed Polycarbonate Enclosures 115 x 65 x 40
product image thumb
product image thumb
product image thumb

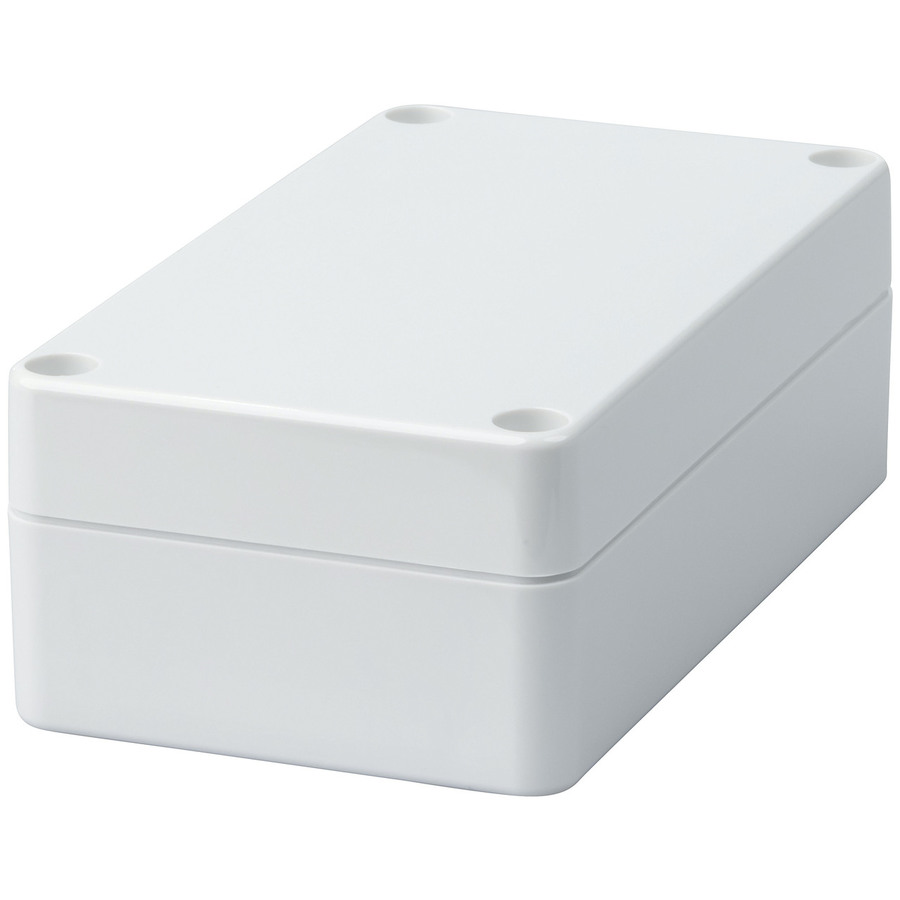

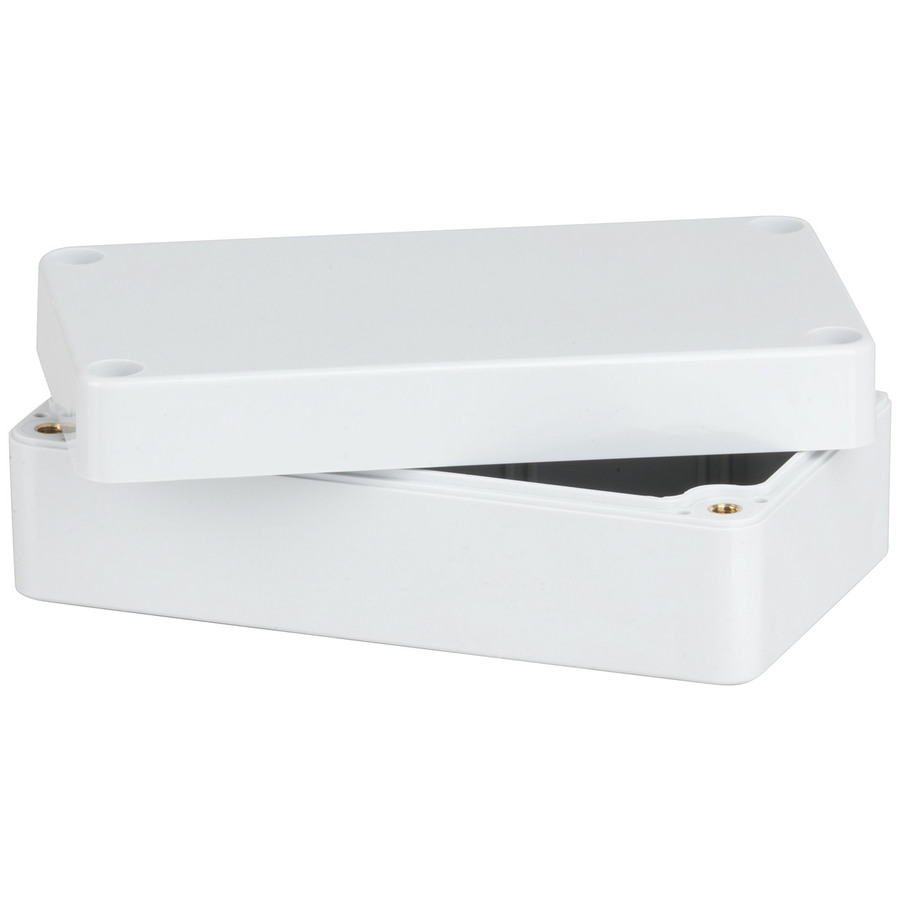

Sealed Polycarbonate Enclosures 115 x 65 x 40

$19.95
Made with Polycarbonate material and moulded in light grey.Operating temperature : minus 40C to 125CThe lid and base incorporate a toungue and groove ...
Available

Description

5 Year Warranty

Features:
• Made with Polycarbonate material and moulded in light grey.
• Operating temperature : minus 40C to 125C

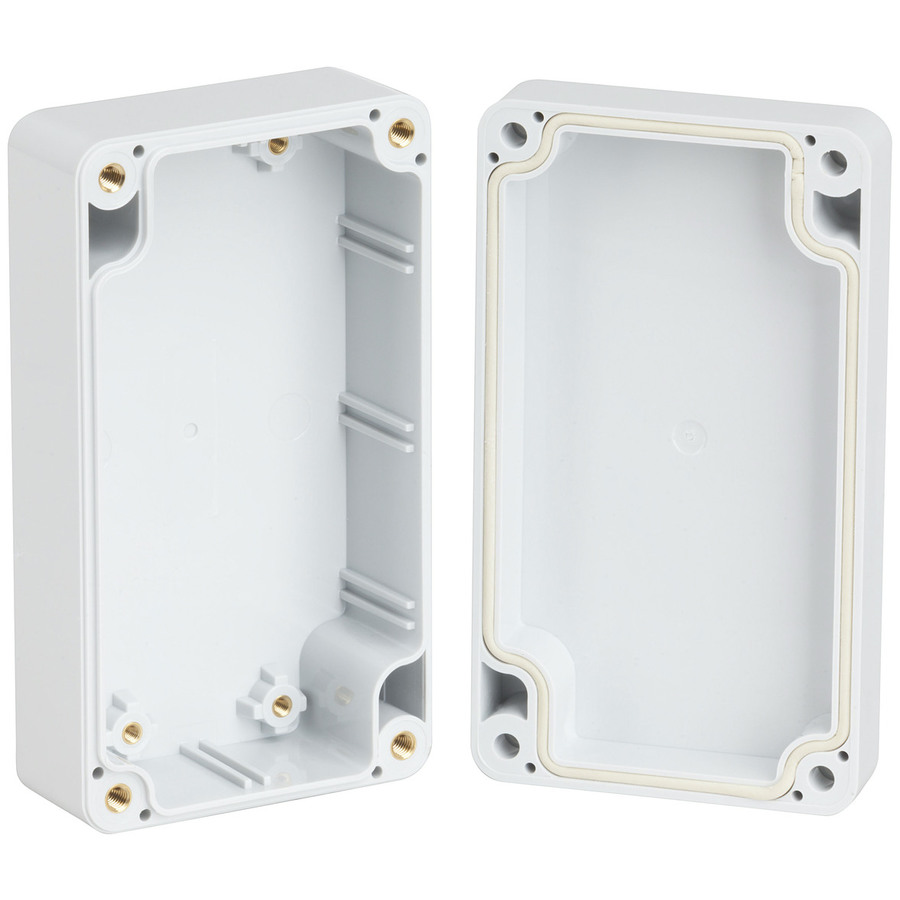

• The lid and base incorporate a toungue and groove sealing system with a EPDM gasket
• Lid fixing screws are M-4 stainless steel (non metallic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture & dust
• Designed to IP65 of IEC 529and NEMA 4 (dust and hoseproof)
• Internal guide slots for mounting PCB assemblies vertically
• External mounting plate (4pcs) made of thermoplastic are available as an option
• External hinge kit (2pcs) made of thermoplastic are available as an option.
• Dimensions 115x65x40mm

    Specifications

    Product Dimensions

    Length
    		 115mm
    Height
    		 40mm
    Width
    		 65mm

    Packaged Dimensions

    Packaged Length
    		 13.2cm
    Packaged Width
    		 8.4cm
    Packaged Weight
    		 0.124kg
    Packaged Volume
    		 0.476784l
    Packaged Height
    		 4.3cm

    Enclosures and Boxes

    Material
    		 Polycarbonate
    Lid Screws
    		 4pc

    Product colour

    Colour
    		 Light Grey

    Ingress Protection Rating

    IP Rating
    		 65

    Product Availability

    Availability
    		 Stocked item
    Warranty: 60 Months

    Downloads

    HB6212-dataSheetMain.pdf
