CAT. No. HB6216

Sealed Polycarbonate Enclosure 115 x 90 x 55mm
product image thumb
product image thumb
product image thumb

Sealed Polycarbonate Enclosure 115 x 90 x 55mm

$21.95
Made with Polycarbonate material and moulded in light grey. Operating temperature : minus 40C to 125C
Available

Description

5 Year Warranty

Features:
• Made with Polycarbonate material and moulded in light grey.
• Operating temperature : minus 40C to 125C

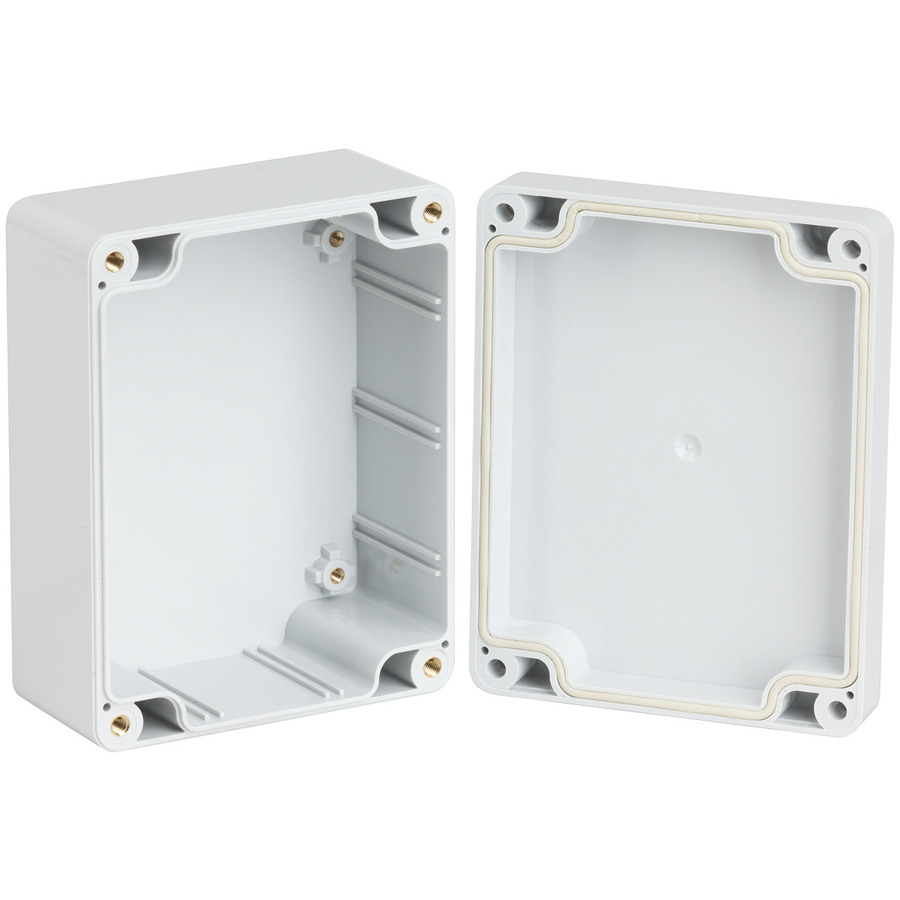

• The lid and base incorporate a tongue and groove sealing system with a EPDM gasket
• Lid fixing screws are M-4 stainless steel (non metallic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture & dust
• Designed to IP65 of IEC 529and NEMA 4 (dust and hoseproof)
• Internal guide slots for mounting PCB assemblies vertically
• External mounting plate (4pcs) made of thermoplastic are available as an option
• External hinge kit (2pcs) made of thermoplastic are available as an option.


    Specifications

    Product Dimensions

    Height
    		 90mm
    Width
    		 115mm
    Depth
    		 55mm

    Packaged Dimensions

    Packaged Length
    		 13.2cm
    Packaged Width
    		 10.5cm
    Packaged Weight
    		 0.174kg
    Packaged Volume
    		 0.79002l
    Packaged Height
    		 5.7cm

    Enclosures and Boxes

    PCB Internal Guide Slots
    Material
    		 Polycarbonate
    Internal Mounting Posts

    Product colour

    Colour
    		 Light Grey

    Ingress Protection Rating

    IP Rating
    		 IP65
    Dust/Particle Ingress Protection
    		 6 - Dust tight, no ingress of dust
    Liquid/Moisture Ingress Protection
    		 5 - Water jets

    Product Availability

    Availability
    		 Stocked item
    Warranty: 60 Months
