Sealed Polycarbonate Enclosure 115 x 90 x 55
Sealed Polycarbonate Enclosure 115 x 90 x 55

CAT. No. HB6217

Sealed Polycarbonate Enclosure 115 x 90 x 55
product image thumb

Sealed Polycarbonate Enclosure 115 x 90 x 55

$21.95

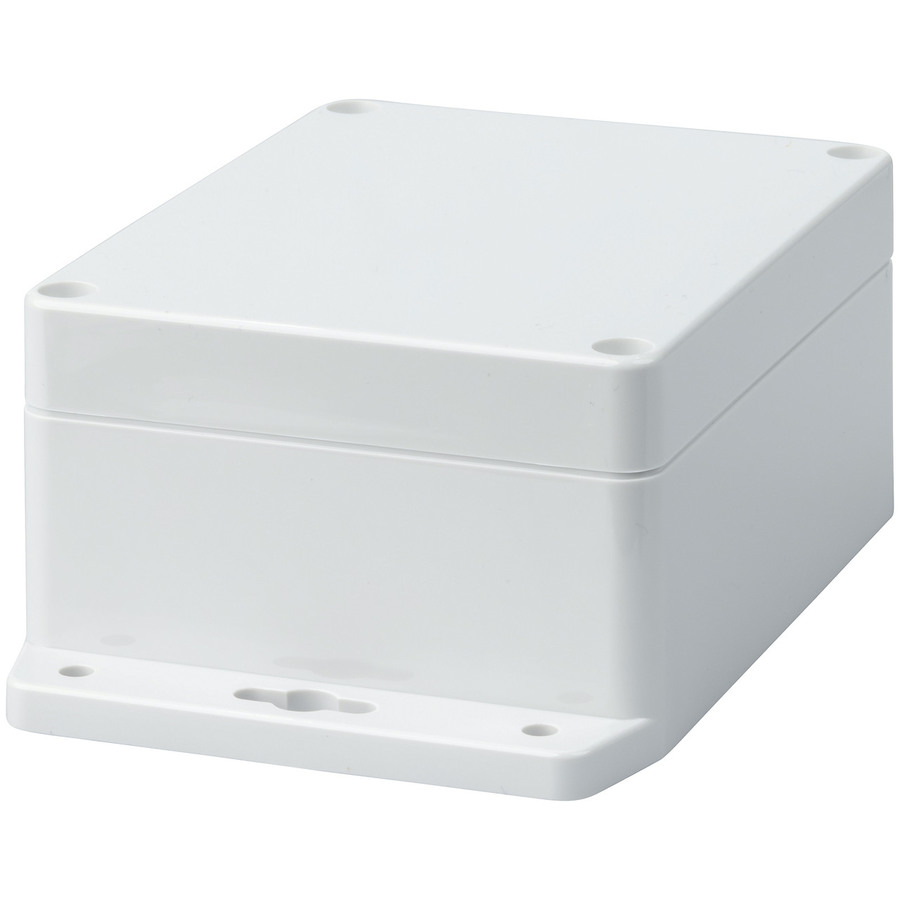

Polycarbonate enclosure, moulded in light grey
Available

Description

5 Year Warranty

Features:
• Operating temperature: -40 to +125C
• The lid and base incorporate a tongue and groove sealing system with a EPDM gasket
• Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust


    Specifications

    Product Dimensions

    Height
    		 55mm
    Width
    		 115mm, 145mm
    Depth
    		 90mm, 90mm

    Packaged Dimensions

    Packaged Length
    		 14.5cm
    Packaged Width
    		 9.2cm
    Packaged Weight
    		 0.204kg
    Packaged Volume
    		 0.7337l
    Packaged Height
    		 5.5cm

    Additional Dimensions

    Dimensions details
    		 Base Dimensions
    Width
    		 115mm, 145mm
    Depth
    		 90mm, 90mm

    Enclosures and Boxes

    Gasket sealing system
    PCB Internal Guide Slots
    Ventilation Holes
    Material
    		 Polycarbonate
    Internal Mounting Posts
    Lid Screws
    		 4pc

    Product colour

    Colour
    		 Light Grey

    Ingress Protection Rating

    IP Rating
    		 IP65
    Dust/Particle Ingress Protection
    		 6 - Dust tight, no ingress of dust
    Liquid/Moisture Ingress Protection
    		 5 - Water jets

    Product Availability

    Availability
    		 Stocked item
    Warranty: 60 Months
