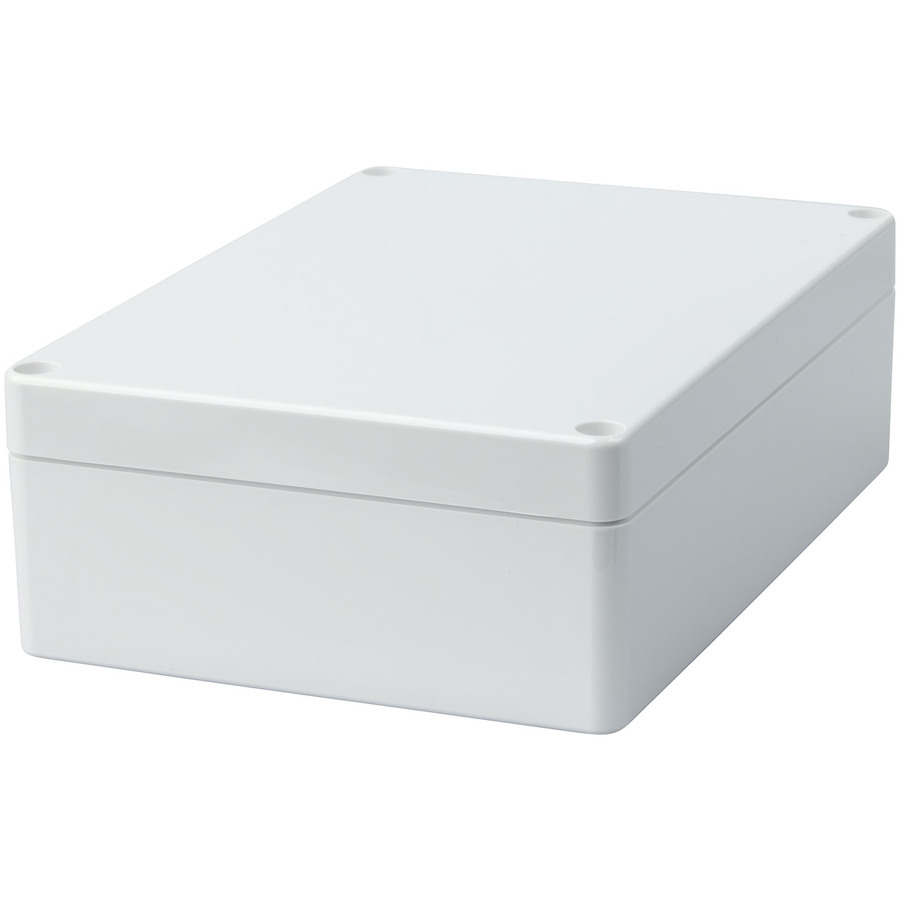

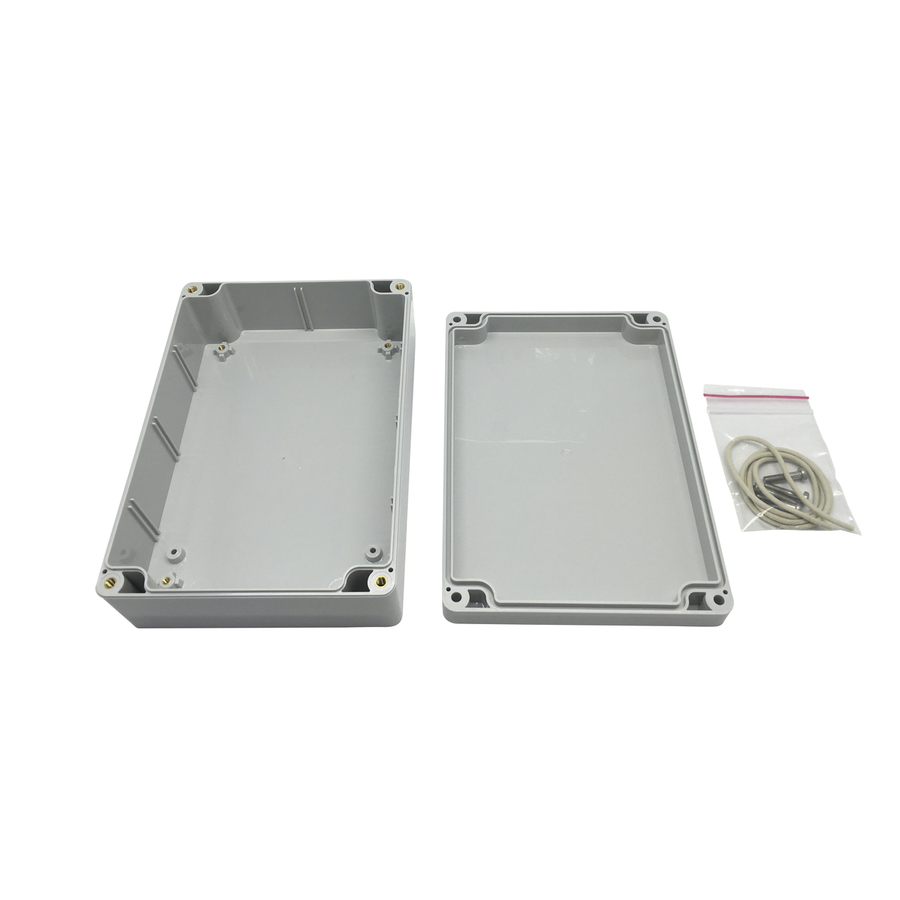

Sealed Polycarbonate Enclosure 171 x 121 x 55
Sealed Polycarbonate Enclosure 171 x 121 x 55
Sealed Polycarbonate Enclosure 171 x 121 x 55

CAT. No. HB6218

Sealed Polycarbonate Enclosure 171 x 121 x 55
product image thumb
product image thumb

Sealed Polycarbonate Enclosure 171 x 121 x 55

$28.95
Polycarbonate enclosure, moulded in light grey
Available

Description

5 Year Warranty

Features:
• Made with Polycarbonate material and moulded in light grey. (SEE HB-6248 for clear lid model)
• Operating temperature : minus 40C to 125C
• The lid and base incorporate a toungue and groove sealing system with a EPDM gasket
• Lid fixing screws are M-4 stainless steel (non metallic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture & dust
• External hinge kit (2pcs) made of thermoplastic are available as an option.




    Specifications

    Product Dimensions

    Length
    		 171mm
    Height
    		 55mm
    Width
    		 121mm

    Packaged Dimensions

    Packaged Length
    		 18.1cm
    Packaged Width
    		 14.1cm
    Packaged Weight
    		 0.298kg
    Packaged Volume
    		 1.607823l
    Packaged Height
    		 6.3cm

    Enclosures and Boxes

    Gasket sealing system
    PCB Internal Guide Slots
    Ventilation Holes
    Material
    		 Polycarbonate
    Internal Mounting Posts
    Lid Screws
    		 4pc

    Product colour

    Colour
    		 Light Grey

    Ingress Protection Rating

    IP Rating
    		 IP65
    Dust/Particle Ingress Protection
    		 6 - Dust tight, no ingress of dust
    Liquid/Moisture Ingress Protection
    		 5 - Water jets

    Product Availability

    Availability
    		 Stocked item
    Warranty: 60 Months
