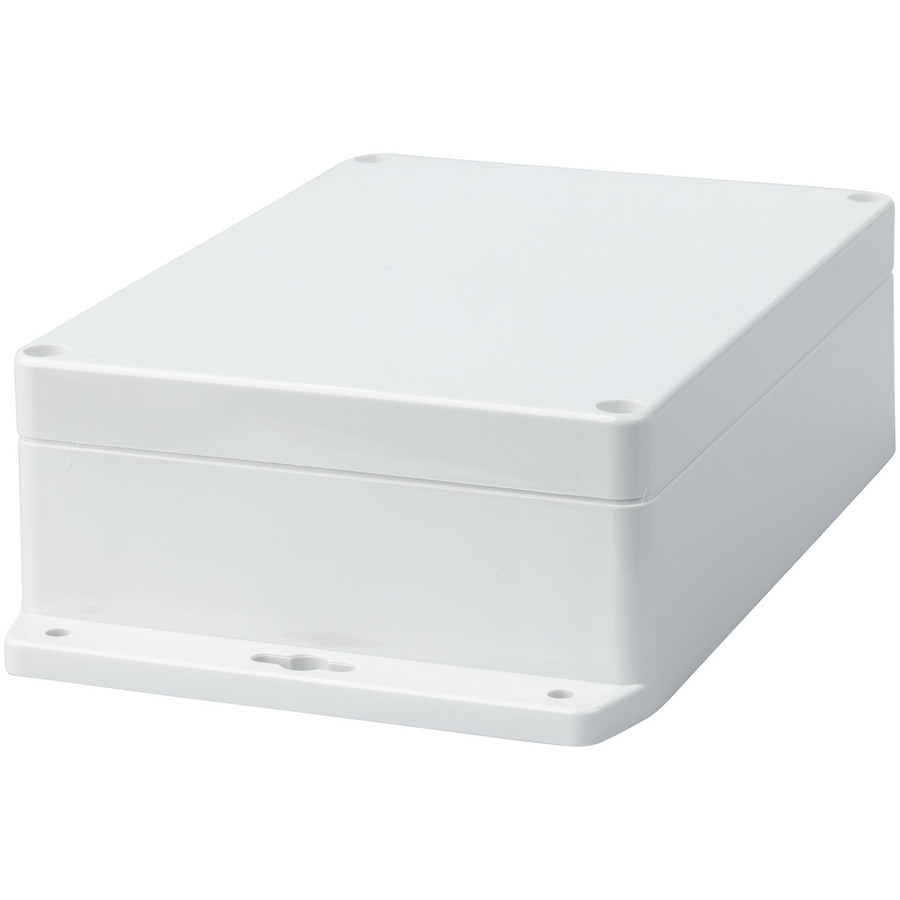

Polycarbonate Enclosure with Mounting Flange - 171(W) x 121(D) x 55(H)mm
Polycarbonate Enclosure with Mounting Flange - 171(W) x 121(D) x 55(H)mm

CAT. No. HB6219

Polycarbonate Enclosure with Mounting Flange - 171(W) x 121(D) x 55(H)mm
product image thumb

Polycarbonate Enclosure with Mounting Flange - 171(W) x 121(D) x 55(H)mm

$31.95
Made with Polycarbonate material. Moulded in light grey. Operating temperature: -40 to +125C
Available

Description

5 Year Warranty

Features:
• Made with Polycarbonate material
• Moulded in light grey.
• Operating temperature: -40 to +125C
• The lid and base incorporate a tongue and groove sealing system with a EPDM gasket
• Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
• Designed to IP65 of IEC 529 and NEMA 4 (dust and hose proof)
• Internal guide slots for mounting PCB assemblies vertically (not on HB-6230)


    Specifications

    Product Dimensions

    Height
    		 55mm, 121mm
    Width
    		 171mm, 201mm
    Depth
    		 121mm

    Packaged Dimensions

    Packaged Length
    		 20cm
    Packaged Width
    		 12.2cm
    Packaged Weight
    		 0.334kg
    Packaged Volume
    		 1.3664l
    Packaged Height
    		 5.6cm

    Additional Dimensions

    Height
    		 55mm, 121mm
    Dimensions details
    		 Base Dimensions
    Width
    		 171mm, 201mm

    Enclosures and Boxes

    Gasket sealing system
    PCB Internal Guide Slots
    Ventilation Holes
    Material
    		 Polycarbonate
    Internal Mounting Posts
    Lid Screws
    		 4pc

    Product colour

    Colour
    		 Light Grey

    Ingress Protection Rating

    IP Rating
    		 IP65
    Dust/Particle Ingress Protection
    		 6 - Dust tight, no ingress of dust
    Liquid/Moisture Ingress Protection
    		 5 - Water jets

    Product Availability

    Availability
    		 Stocked item
    Warranty: 60 Months

    Downloads

    HB6219-dataSheetMain.pdf
