CAT. No. HB6220

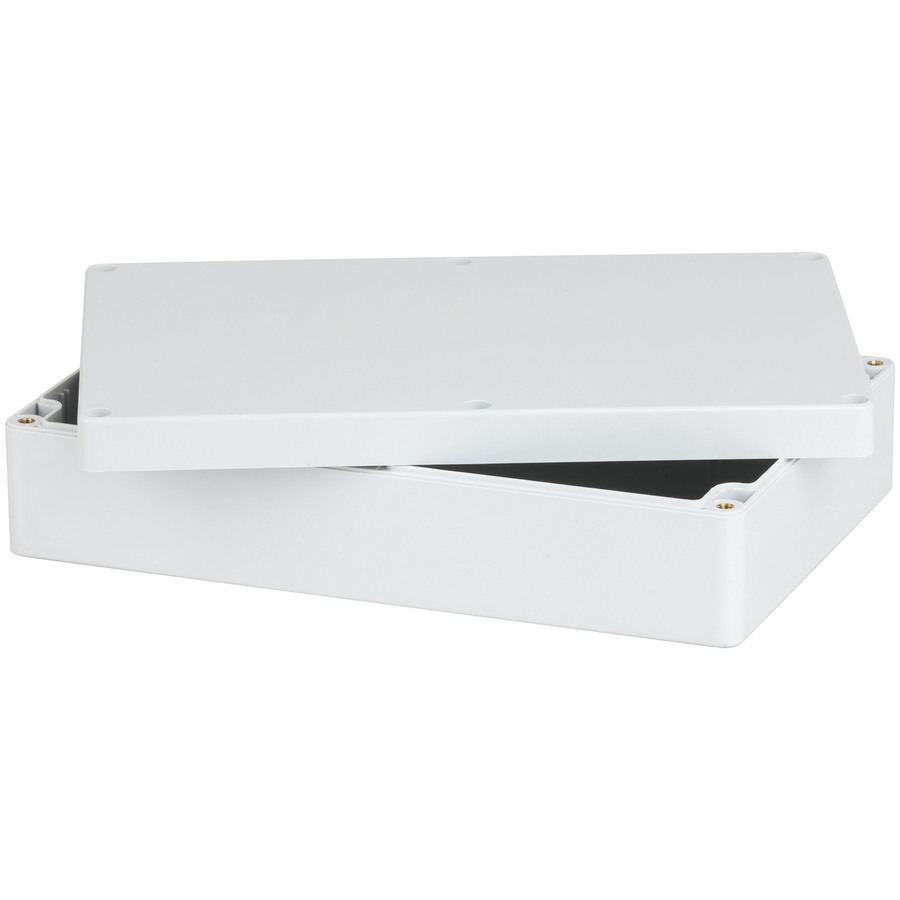

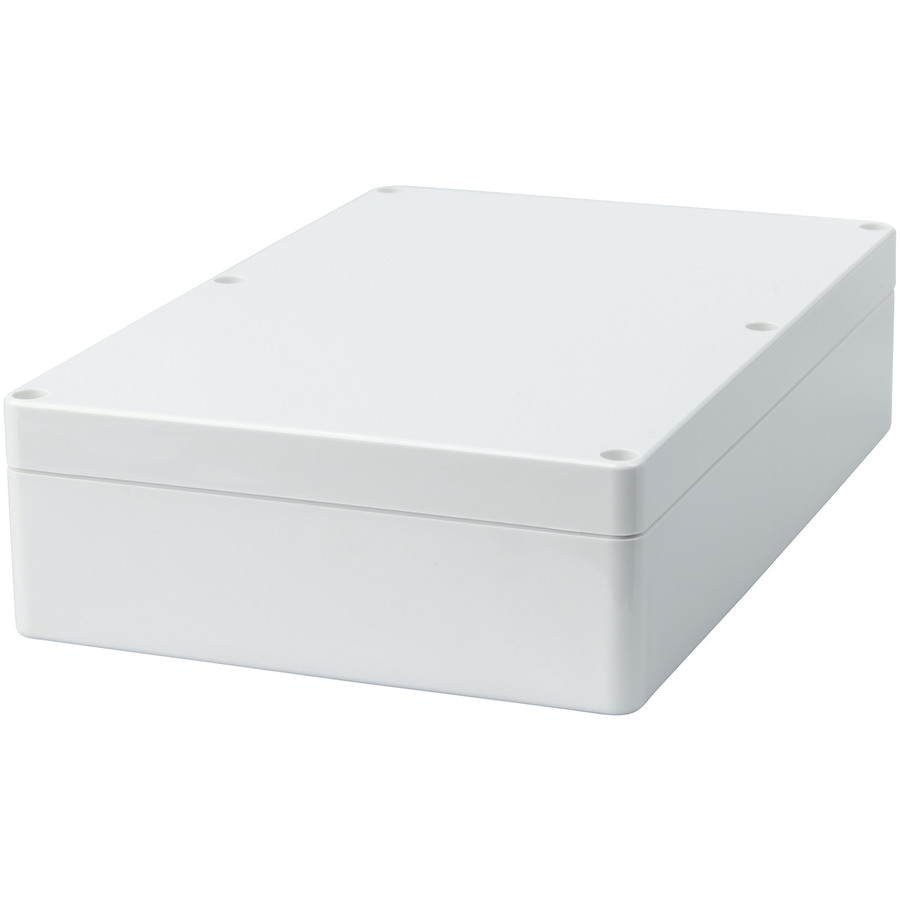

Sealed Polycarbonate Enclosure 222 x 146 x 55mm
product image thumb
product image thumb
product image thumb

Sealed Polycarbonate Enclosure 222 x 146 x 55mm

$44.95
Made with Polycarbonate material and moulded in light grey. Operating temperature : minus 40C to 125C
Available

Description

5 Year Warranty

Features:
• Made with Polycarbonate material and moulded in light grey.
• Operating temperature : minus 40C to 125C

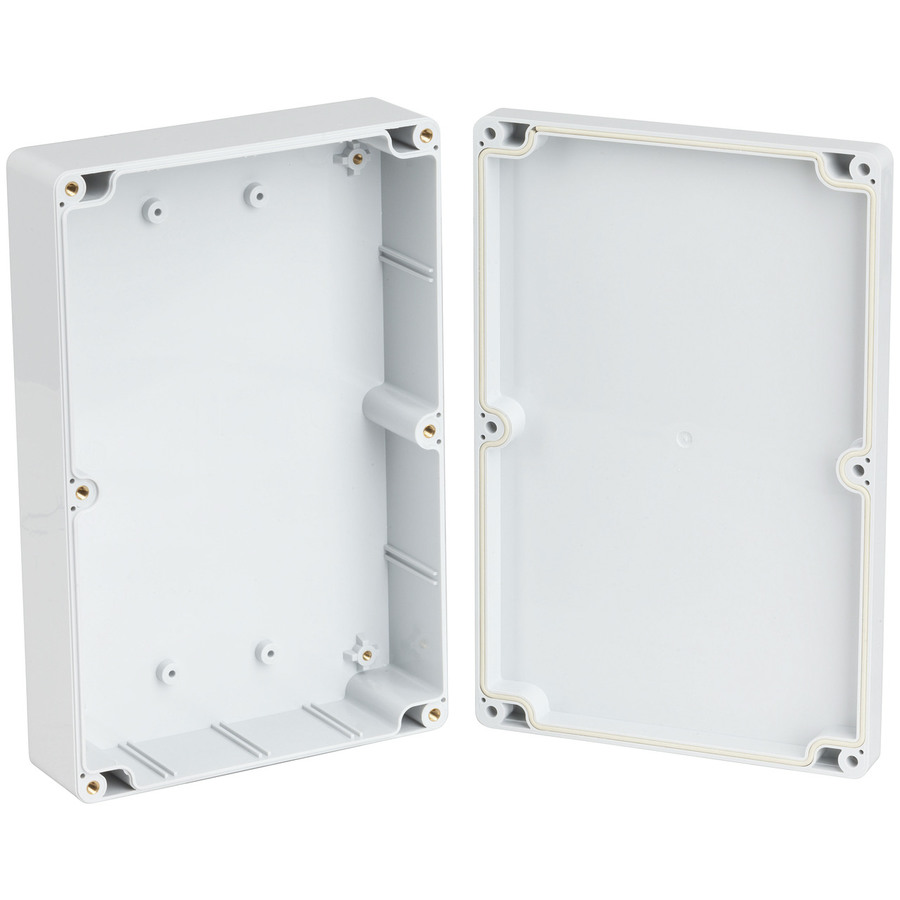

• The lid and base incorporate a toungue and groove sealing system with a EPDM gasket
• Lid fixing screws are M-4 stainless steel (non metallic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture & dust
• Designed to IP65 of IEC 529and NEMA 4 (dust and hoseproof)
• Internal guide slots for mounting PCB assemblies vertically
• External mounting plate (4pcs) made of thermoplastic are available as an option
• External hinge kit (2pcs) made of thermoplastic are available as an option.


    Specifications

    Product Dimensions

    Height
    		 55mm
    Width
    		 222mm
    Depth
    		 146mm

    Packaged Dimensions

    Packaged Length
    		 24.5cm
    Packaged Width
    		 16cm
    Packaged Weight
    		 0.43kg
    Packaged Volume
    		 2.4696l
    Packaged Height
    		 6.3cm

    Enclosures and Boxes

    Gasket sealing system
    PCB Internal Guide Slots
    Material
    		 Polycarbonate
    Lid Screws
    		 4pc

    Product colour

    Colour
    		 Light Grey

    Ingress Protection Rating

    IP Rating
    		 IP65
    Dust/Particle Ingress Protection
    		 6 - Dust tight, no ingress of dust
    Liquid/Moisture Ingress Protection
    		 5 - Water jets

    Product Availability

    Availability
    		 Stocked item
    Warranty: 60 Months

    Downloads

    HB6220-dataSheetMain.pdf
