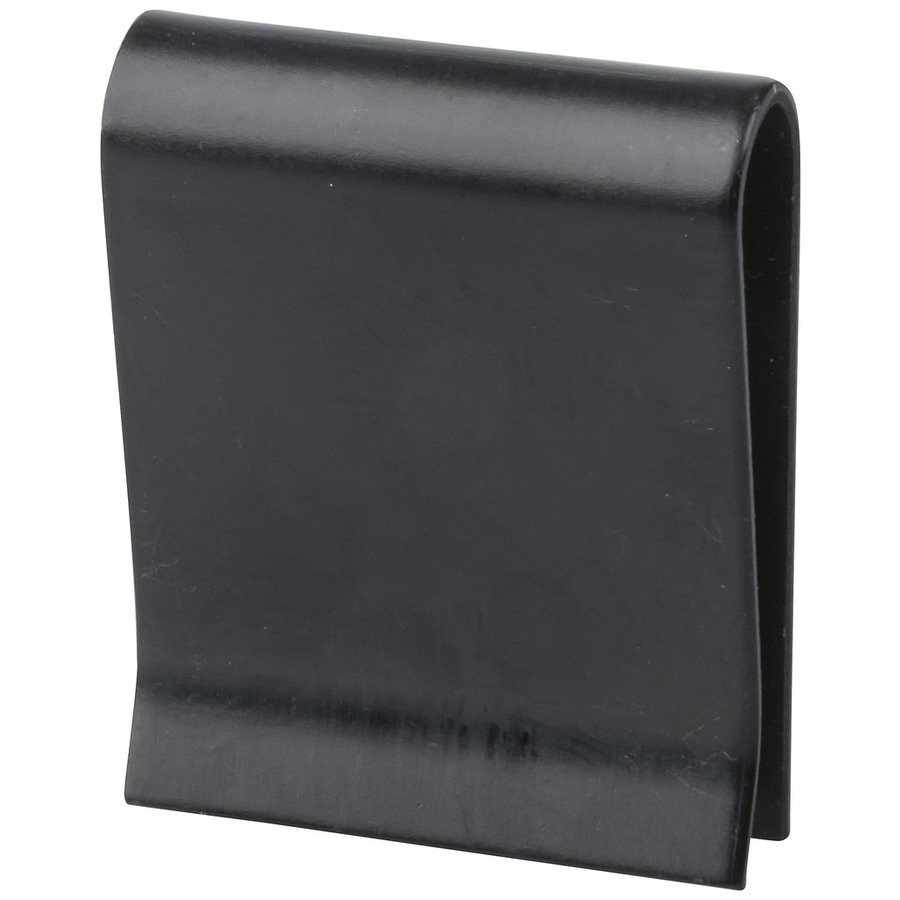

TO-220 Clip-on Heatsink (6043 Type)
TO-220 Clip-on Heatsink (6043 Type)

CAT. No. HH8503

TO-220 Clip-on Heatsink (6043 Type)
product image thumb

TO-220 Clip-on Heatsink (6043 Type)

$1.85
The heatsink will just clip over a device when required for permanent or temporary installation.- Thermal resistance 30° C/W...

Out of Stock

Description

The heatsink will just clip over a device when required for permanent or temporary installation.

    Specifications

    Heatsinks

    Heatsink Thermal Resistance
    		 30°C/W
    Heatsink Layout
    		 Clip-on
    Heatsink Fins
    		 1pc
    Sink Area Width
    		 25.5mm
    Component Mount Area Height
    		 6.8mm
    Specific Application
    		 TO-220
    Heatsink Mounting Method
    		 Snap-in

    Product Dimensions

    Length
    		 25.5mm
    Height
    		 6.8mm
    Width
    		 20.3mm

    Packaged Dimensions

    Packaged Length
    		 2cm
    Packaged Width
    		 1.4cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.0014l
    Packaged Height
    		 0.5cm

    Product Availability

    Availability
    		 Stocked item
