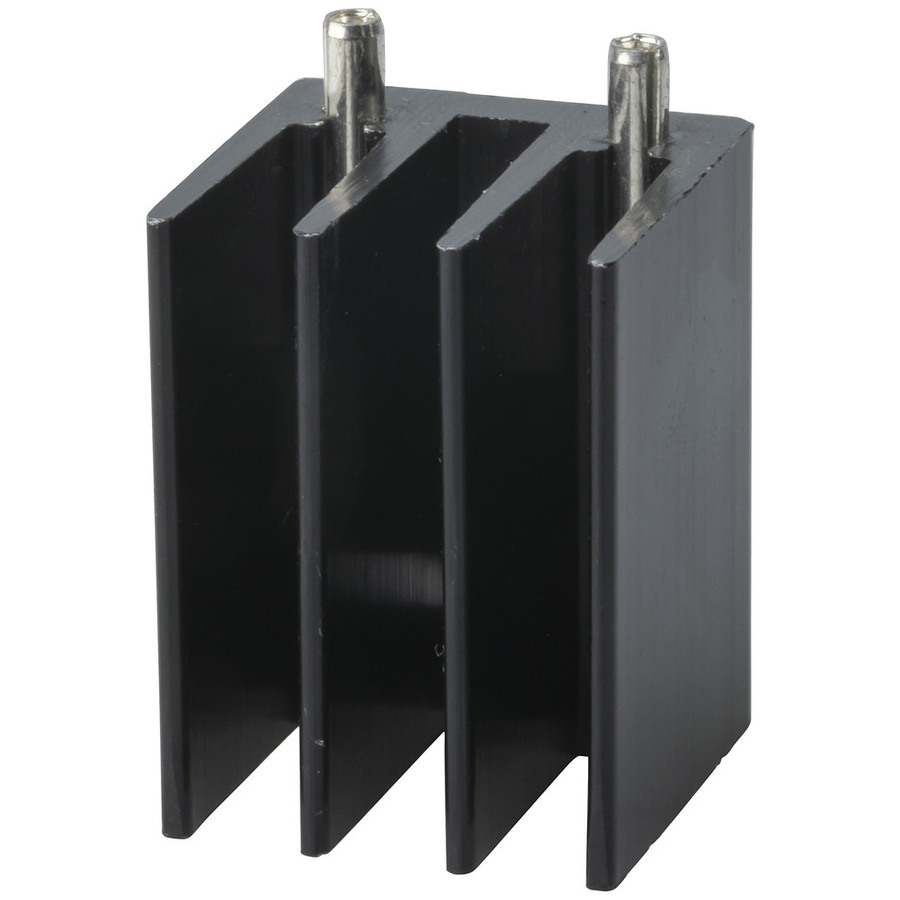

TO-220 Heatsink
TO-220 Heatsink

CAT. No. HH8516

TO-220 Heatsink
product image thumb

TO-220 Heatsink

$2.3
These PCB mount heatsinks have two tinned pins to aid in fastening the sink to a board or surface.
Available

Description

These PCB mount heatsinks have two tinned pins to aid in fastening the sink to a board or surface.


- Pins 2mm dia. x 3mm long


    Specifications

    Heatsinks

    Heatsink Thermal Resistance
    		 19°C/W
    Cooling Fan Mount Size
    		 21.8mm
    Heatsink Fins
    		 2pc
    Component Mount Area Height
    		 16mm
    Specific Application
    		 TO-220
    Heatsink Mounting Method
    		 PCB

    Product Dimensions

    Length
    		 15.8mm
    Height
    		 21.8mm
    Width
    		 16mm

    Packaged Dimensions

    Packaged Length
    		 2.7cm
    Packaged Width
    		 1.6cm
    Packaged Weight
    		 0.007kg
    Packaged Volume
    		 0.00648l
    Packaged Height
    		 1.5cm

    Product Availability

    Availability
    		 Stocked item
