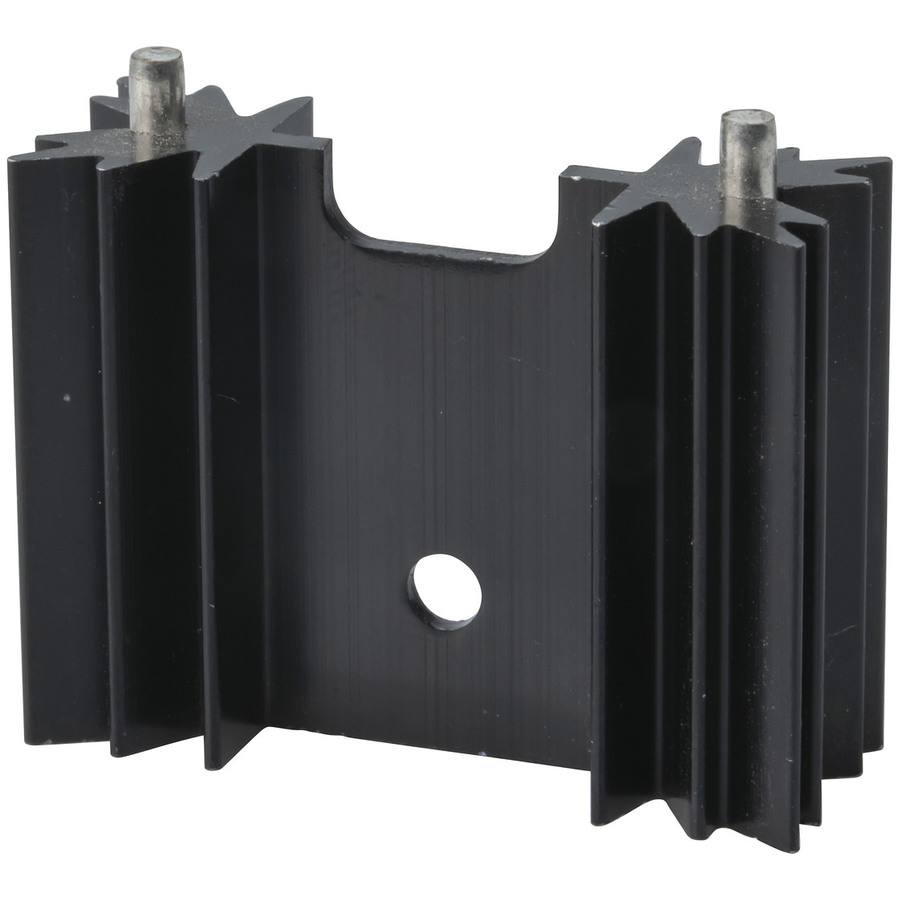

PC Mount TO-3P Heatsink - 25mm High
PC Mount TO-3P Heatsink - 25mm High
PC Mount TO-3P Heatsink - 25mm High

CAT. No. HH8520

PC Mount TO-3P Heatsink - 25mm High
product image thumb
product image thumb

PC Mount TO-3P Heatsink - 25mm High

$2.6
Will accept up to TO-3P size flat pack transistors. (This includes TO-220).Includes 2 PC pins, which help stabilise the heatsink.
Available

Description

Will accept up to TO-3P size flat pack transistors. (This includes TO-220).
Includes 2 PC pins, which help stabilise the heatsink and allow you to solder to PCB pads.

    Specifications

    Heatsinks

    Heatsink Thermal Resistance
    		 17°C/W
    Cooling Fan Mount Size
    		 36mm
    Heatsink Fins
    		 2pc
    Component Mount Area Height
    		 12mm
    Specific Application
    		 TO-3P
    Heatsink Mounting Method
    		 PCB

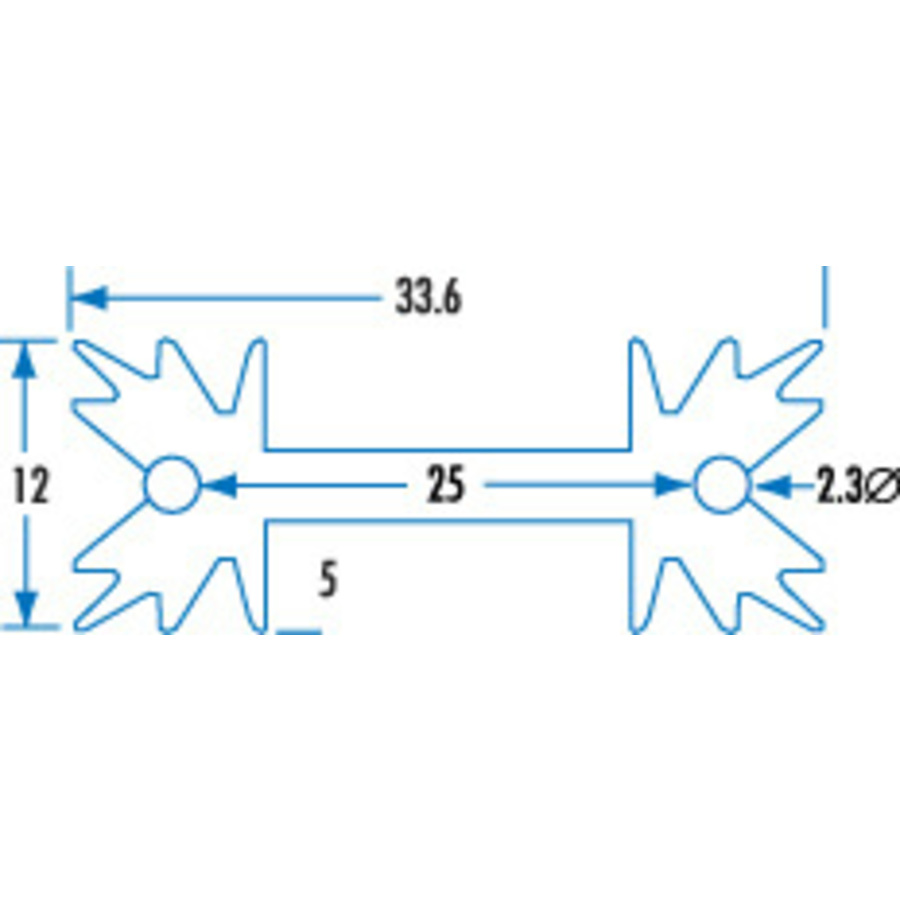

    Product Dimensions

    Height
    		 25mm
    Width
    		 33.6mm
    Depth
    		 12mm

    Packaged Dimensions

    Packaged Length
    		 3.5cm
    Packaged Width
    		 2.5cm
    Packaged Weight
    		 0.012kg
    Packaged Volume
    		 0.00875l
    Packaged Height
    		 1cm

    Additional Dimensions

    Diameter
    		 2.3mm

    Product Availability

    Availability
    		 Stocked item

N/A
