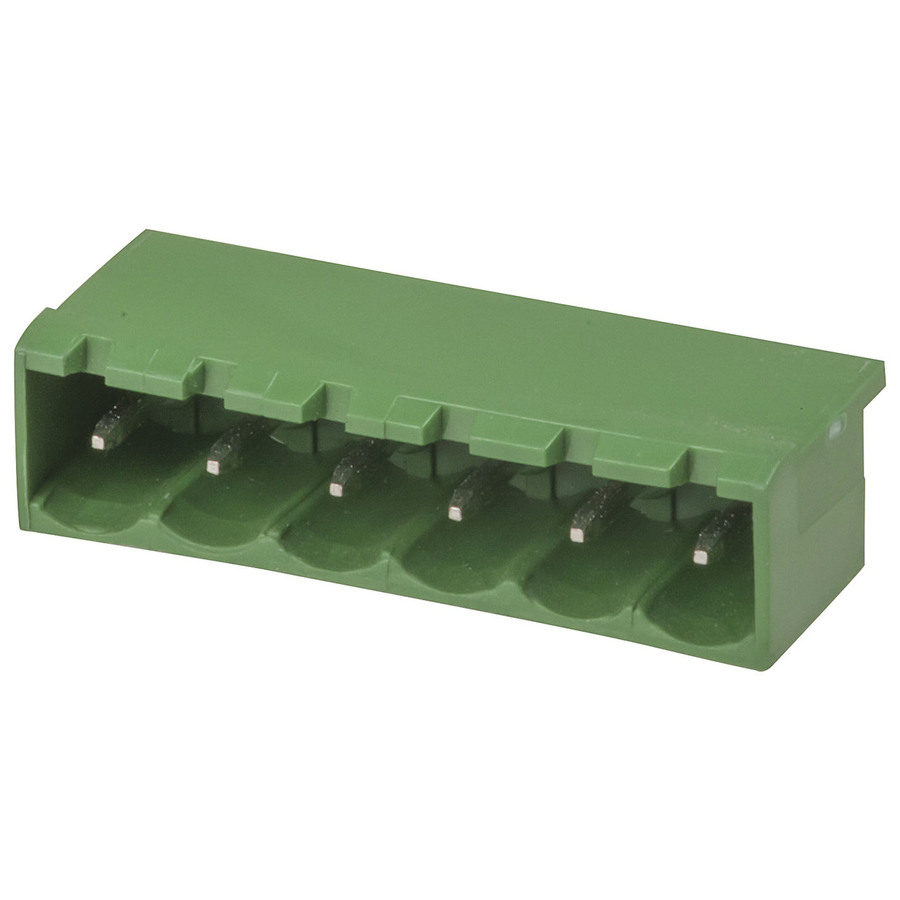

6 Pole PC Mount Pluggable Header - 5.08mm - Vertical
6 Pole PC Mount Pluggable Header - 5.08mm - Vertical

CAT. No. HM3116

6 Pole PC Mount Pluggable Header - 5.08mm - Vertical
product image thumb

6 Pole PC Mount Pluggable Header - 5.08mm - Vertical

$3.55
Available in both horizontal- plug and vertical- plug versions, these quality headers simply solder to a PC board and are for the Pluggable Terminal B...
Available

Description

Available in both horizontal- plug and vertical- plug versions, these quality headers simply solder to a PC board and are for the Pluggable Terminal Blocks


- Made from Polyamide66 plastic (UL94V- 0)
- 1.0mm tin- plated brass solder pins
- Excellent current and insulation characteristics.
- HORIZONTAL PC MOUNT
- PCB hole diameter: 1.5mm


    Specifications

    Header Connections

    Type
    		 Single Row Header
    Device
    		 Plug
    Pin Spacing
    		 5.08mm (0.2")
    Pack Quantity
    		 1pc
    Pin Size
    		 1mm
    Number of Pins
    		 6pc
    Pin Material
    		 Tin Plated Brass
    Insulation Dielectric Voltage Rating
    		 2000V
    Attachment Method
    		 PCB
    Insulation Resistance
    		 5000M?

    AC Voltage Rating

    AC Voltage rating
    		 300V

    AC Current Rating

    AC current rating
    		 12A

    Product Mounting

    Mounting Method
    		 PCB

    Packaged Dimensions

    Packaged Length
    		 3.3cm
    Packaged Width
    		 1.8cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.00475l
    Packaged Height
    		 0.8cm

    Product Availability

    Availability
    		 Stocked item
