10 Amp 12-way Screw Terminal Strip
10 Amp 12-way Screw Terminal Strip

CAT. No. HM3196

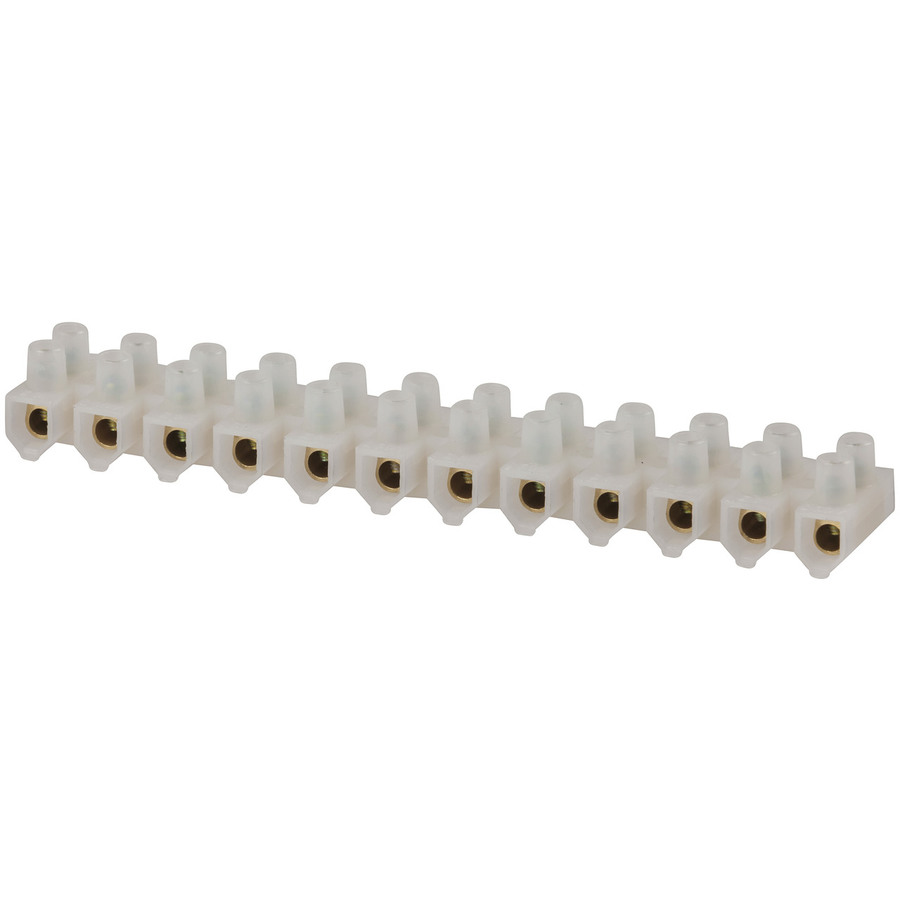

10 Amp 12-way Screw Terminal Strip
product image thumb

10 Amp 12-way Screw Terminal Strip

$3.15
A straightforward joining solution for your wire coupling needs. No soldering required!
Available

Description

12 way & capable of being divided with a sharp knife. Each terminal block has a sturdy mounting hole on a fixed pitch.

Temperature: -35°C ~ 110°C

CurrentCable dia.LengthPitchCat No.
6A3.3mm114.5mm10mmHM-3194
10A4.2mm128.8mm11mmHM-3196
15A4.5mm136.8mm12mmHM-3200
30A5.6mm164.5mm15mmHM-3198
60A6.6mm193mm16.3mmHM-3204

    Specifications

    Terminal Strip

    Terminal Spacing
    		 11mm
    Type
    		 Screw Terminal
    Body Material
    		 Nylon
    Device
    		 Joining Terminal
    Cable Entry Diameter
    		 4.2mm
    Number of Contacts
    		 12pc
    Attachment Method
    		 Screw Terminals

    AC Voltage Rating

    AC Voltage rating
    		 250V, 450V

    AC Current Rating

    AC current rating
    		 10A

    Product Dimensions

    Length
    		 128.8mm

    Packaged Dimensions

    Packaged Length
    		 13.2cm
    Packaged Width
    		 2.1cm
    Packaged Weight
    		 0.036kg
    Packaged Volume
    		 0.047124l
    Packaged Height
    		 1.7cm

    Product Availability

    Availability
    		 Stocked item
