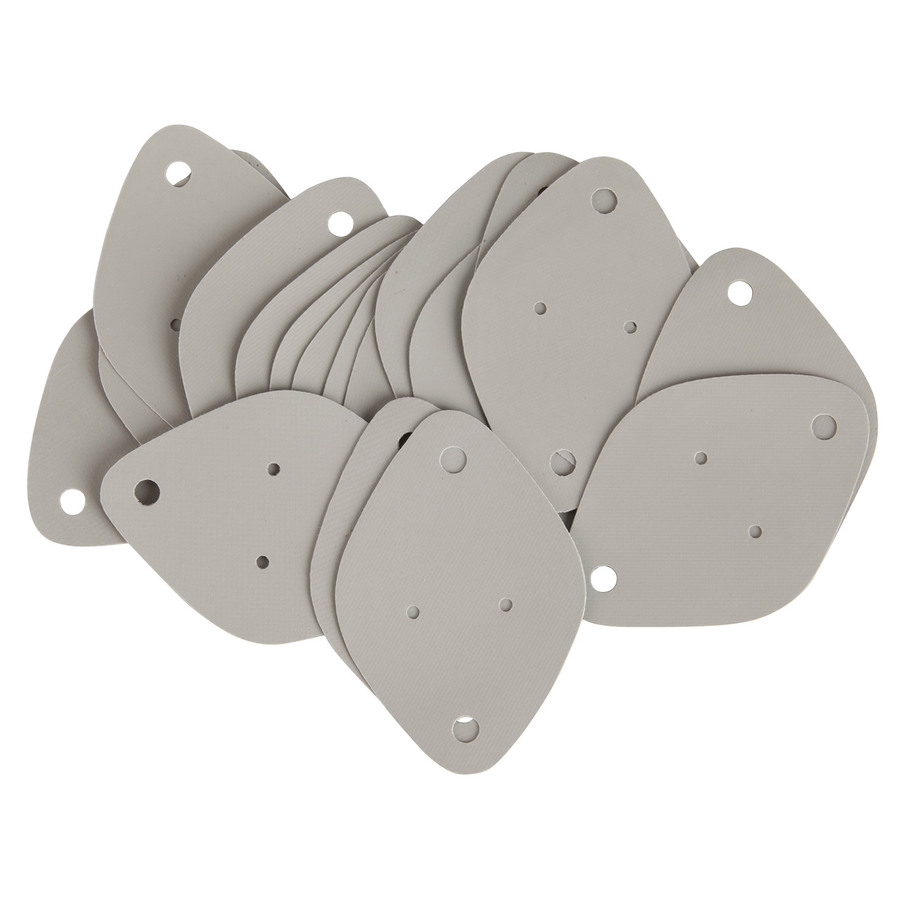

TO-3 Silicon Rubber Transistor Insulator - Pk.20
TO-3 Silicon Rubber Transistor Insulator - Pk.20

CAT. No. HP1150

TO-3 Silicon Rubber Transistor Insulator - Pk.20
product image thumb

TO-3 Silicon Rubber Transistor Insulator - Pk.20

$12.5
Silicon impregnated rubber washers Stop using messy silicon grease. These washers are made from silicon rubber and are as effective as mica and grease.

Out of Stock

Description

Silicon impregnated rubber washers Stop using messy silicon grease. These washers are made from silicon rubber and are as effective as mica and grease.
Physical properties:
- Colour grey- Tensile strength 40kg/cm2
- Elongation 80%
- Dielectric breakdown voltage 4000/0.3mm
- Co- efficient of thermal conductance 2.4 x 10- 3
- Flammability class 94V- 0/0.3mm
- Dimensional stability 0.2% change/0.3mmType Pkt TO3 20

    Specifications

    Packaged Dimensions

    Packaged Length
    		 5cm
    Packaged Width
    		 5cm
    Packaged Weight
    		 0.01kg
    Packaged Volume
    		 0.0125l
    Packaged Height
    		 0.5cm
