U25 - Ferrite Voltage Spike ProtectorsNoise Suppressors - Each
U25 - Ferrite Voltage Spike ProtectorsNoise Suppressors - Each

CAT. No. LF1290

U25 - Ferrite Voltage Spike ProtectorsNoise Suppressors - Each
product image thumb

U25 - Ferrite Voltage Spike ProtectorsNoise Suppressors - Each

$15.5
A hinged self-clasping noise suppression collar for attaching to your cables.
Available

Description

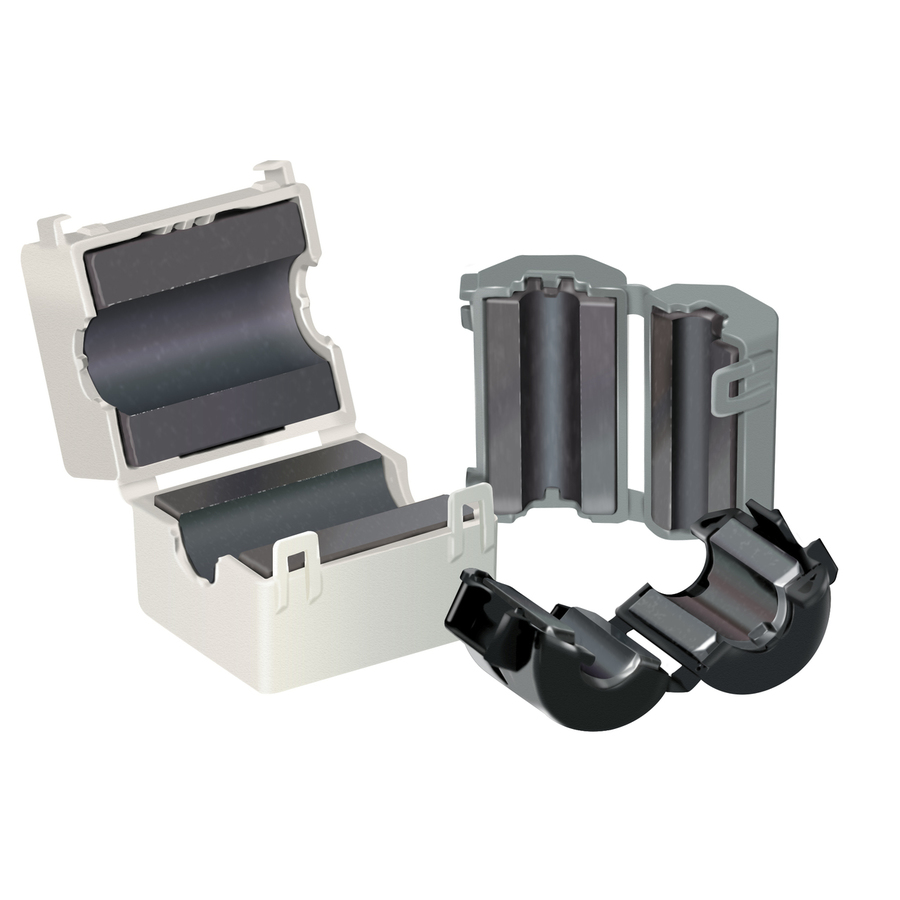

MODEL U25:This offers impedance (peak approx 300at 2- 300MHz) with negligible impedance below 1MHz. Plastic case measures 32L x 30mm square. It will take a lead up to 12mm (1/2) diameter but preferably 10mm. Basically a split high permeability ferrite core with a plastic case, these devices are ideal where parasitic voltage spikes are a problem or potential problem. The cores come in a hinged plastic case, simply snap on to the computer or data cable.

    Specifications

    Product Dimensions

    Length
    		 32mm
    Height
    		 30mm
    Width
    		 30mm

    Packaged Dimensions

    Packaged Length
    		 5.4cm
    Packaged Width
    		 8.6cm
    Packaged Weight
    		 0.068kg
    Packaged Volume
    		 0.120744l
    Packaged Height
    		 2.6cm

    Internal or Sub-part Dimensions

    Diameter
    		 10mm

    Product Availability

    Availability
    		 Stocked item

N/A
