CAT. No. LR8855

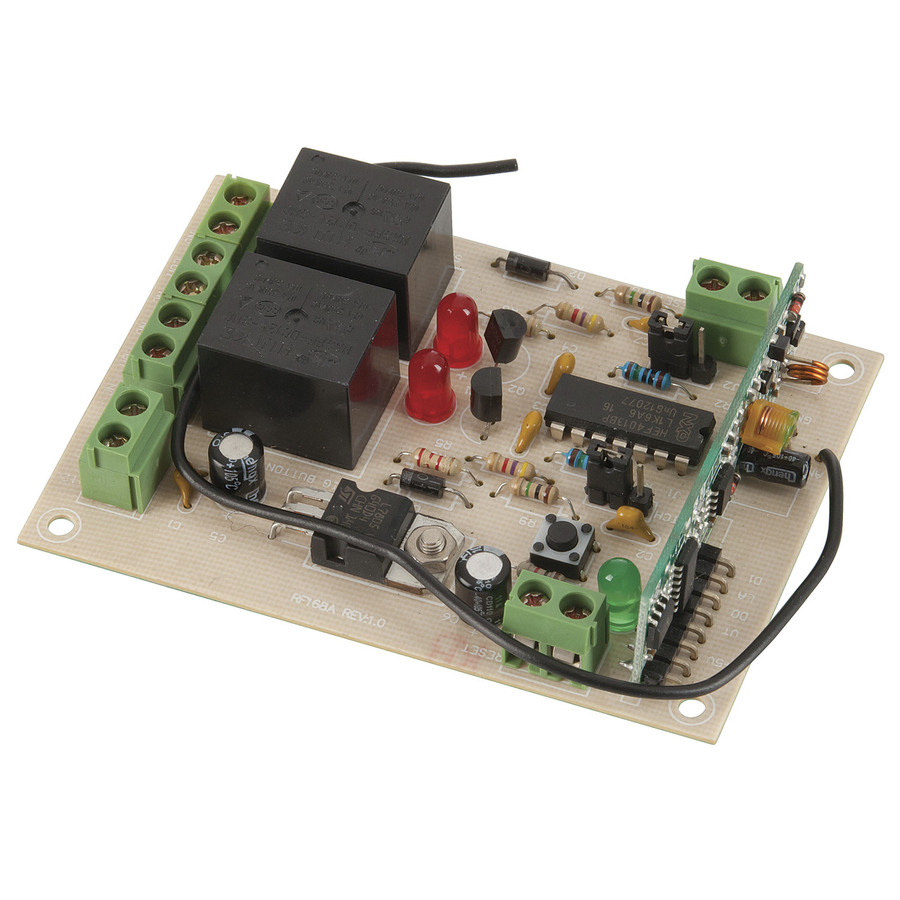

12 Volt Two Way Remote Control Relay Controller Board
product image thumb
product image thumb
product image thumb

12 Volt Two Way Remote Control Relay Controller Board

$79.95
Add remote control functions to a new project or existing installation with these handy remote control relay boards.

Out of Stock

Description

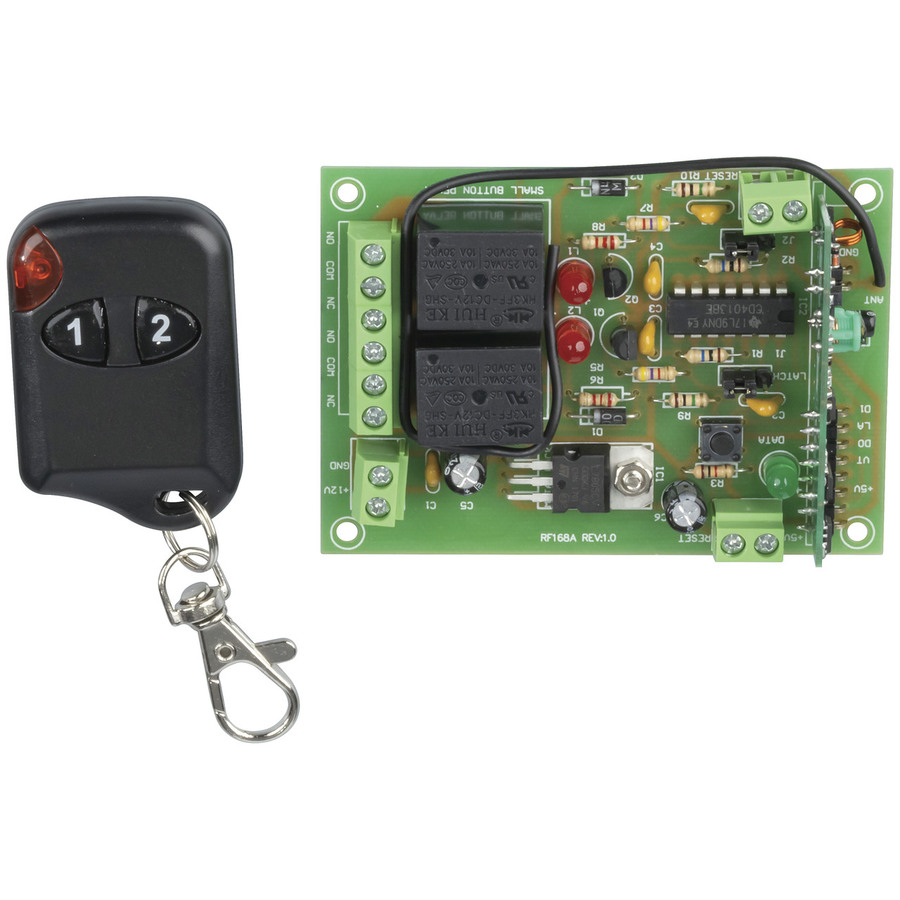

Add remote control functions to a new project or existing installation with these handy remote control relay boards. Each output relay is controlled by a separate button on the key fob controller. Each channel can be set to momentary or latching mode allowing you to customise the setup to suit your application. Operating on the robust 433MHz band the key fob remotes work over distances up to 40m and feature rolling code transmitting for added security.

Features:
• Selectable momentary or latching mode for each channel
• Relay contact rating: 30VDC 10A max / 250VAC 10A max





    Specifications

    Product Dimensions


    Length
    51mm
    Width
    34mm
    Depth
    13mm

    Packaged Dimensions


    Packaged Length
    9cm
    Packaged Width
    7.5cm
    Packaged Weight
    0.088kg
    Packaged Volume
    0.23625l
    Packaged Height
    3.5cm

    Remote Control


    Panic Button
    Remote Frequency
    433MHz
    Type of Remote
    RF
    Range
    40m
    Learning Function
    Number of Buttons
    2

    Home Automation


    Current Draw
    50mA
    Power Supply Voltage
    12V

    Product Availability


    Availability
    Stocked item

    Downloads
