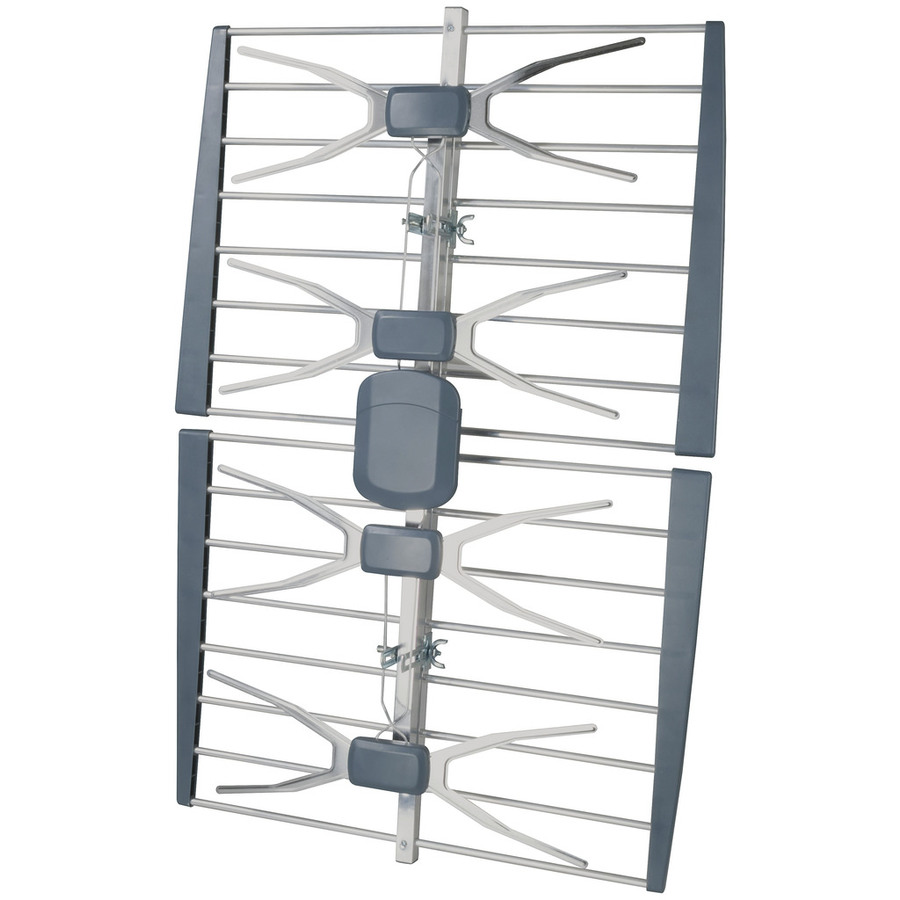

Heavy Duty UHF Phased Array TV Antenna
product image thumb
product image thumb

Heavy Duty UHF Phased Array TV Antenna

$109
Ideal for problem digital reception areas.
Available

Description

1 Year Warranty

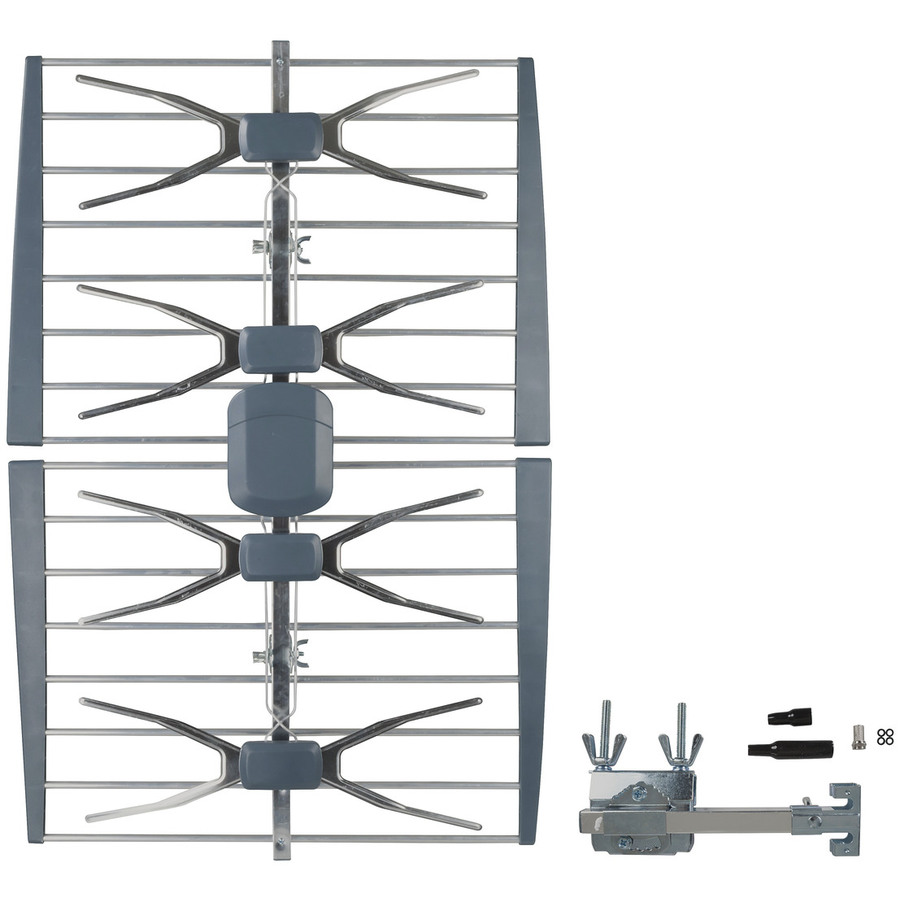

This heavy duty UHF phased array is ideal for problem digital reception areas where you may not have direct line of sight to the transmitter or there may be multipath issues due to reflected signals. It is capable of receiving either horizontal or vertical signals by changing the orientation of the heavy duty mounting bracket/U-bolt assembly. The LTE filter provides protection against 4G/LTE telephone communications.

Specifications:
Gain: 12.5dB
Wind load (N): 78
Frequency (MHz): 519-694
Beamwidth (Hor): +/-25 degrees
Weight(Kg): 1.65
Channels: 27-51
Beamwidth (Ver): +/-20 degrees
Size (mm): 815 x 545
F connector: yes
Front to Back ratio: 22dB
No of Elements: 4
Impedance: 75 Ohm



For More info on Kingray TV antenna products selection guide.


    Specifications

    Product Dimensions

    Length
    		 815mm
    Width
    		 545mm

    Terrestrial and Satellite TV Antennas

    Usage Location
    		 Outdoor
    UHF Gain
    		 12.5dB
    Antenna Type
    		 Phased Array
    Antenna Assembly
    		 Bolt Together
    UHF Frequency Range
    		 519MHz-694MHz
    UHF Channel Range
    		 27ch-51ch

    Product Mounting

    Attachment / Securing Method
    		 U-Bolt
    Mounting Method
    		 Pole Mount

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 83.5cm
    Packaged Width
    		 54.8cm
    Packaged Weight
    		 2.374kg
    Packaged Volume
    		 44.84284l
    Packaged Height
    		 9.8cm
    Warranty: 12 Months
