CAT. No. LT3251

Kingray VHFUHF Masthead Amp with LTE4G Filters
product image thumb
product image thumb

Kingray VHFUHF Masthead Amp with LTE4G Filters

$129
As you may be aware by now, a large chunk of the Australian TV broadcast spectrum is being reallocated for the next generation 4G/LTE mobile phone ser...
Available

Description

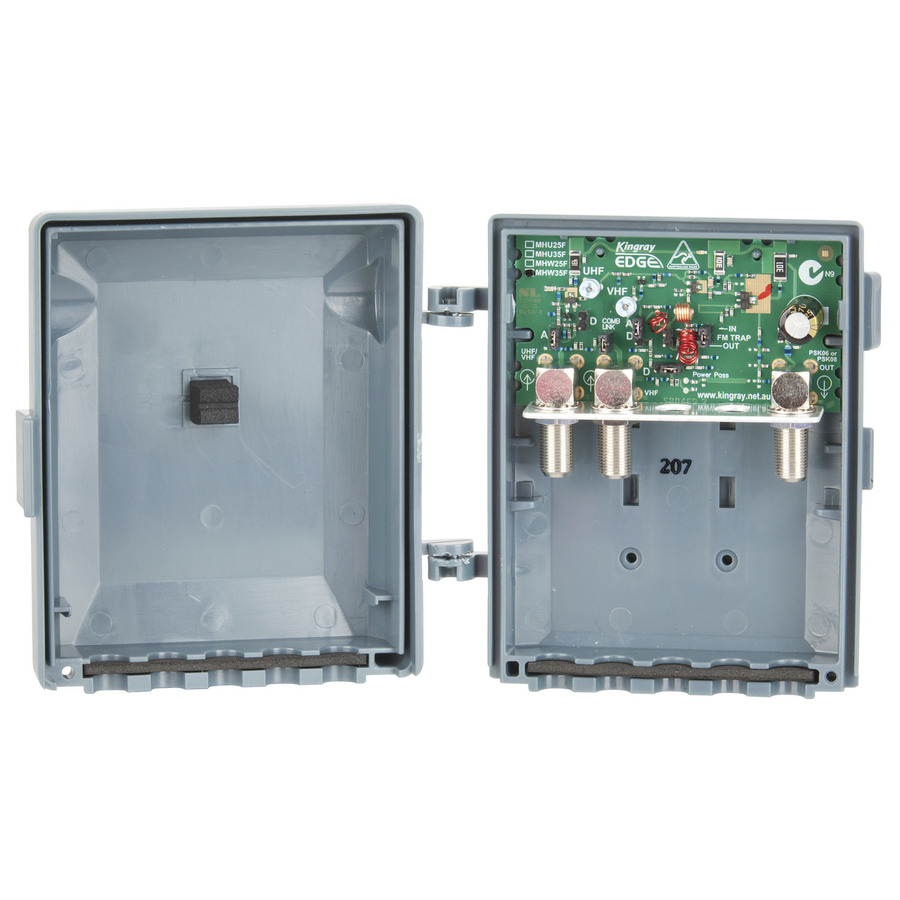

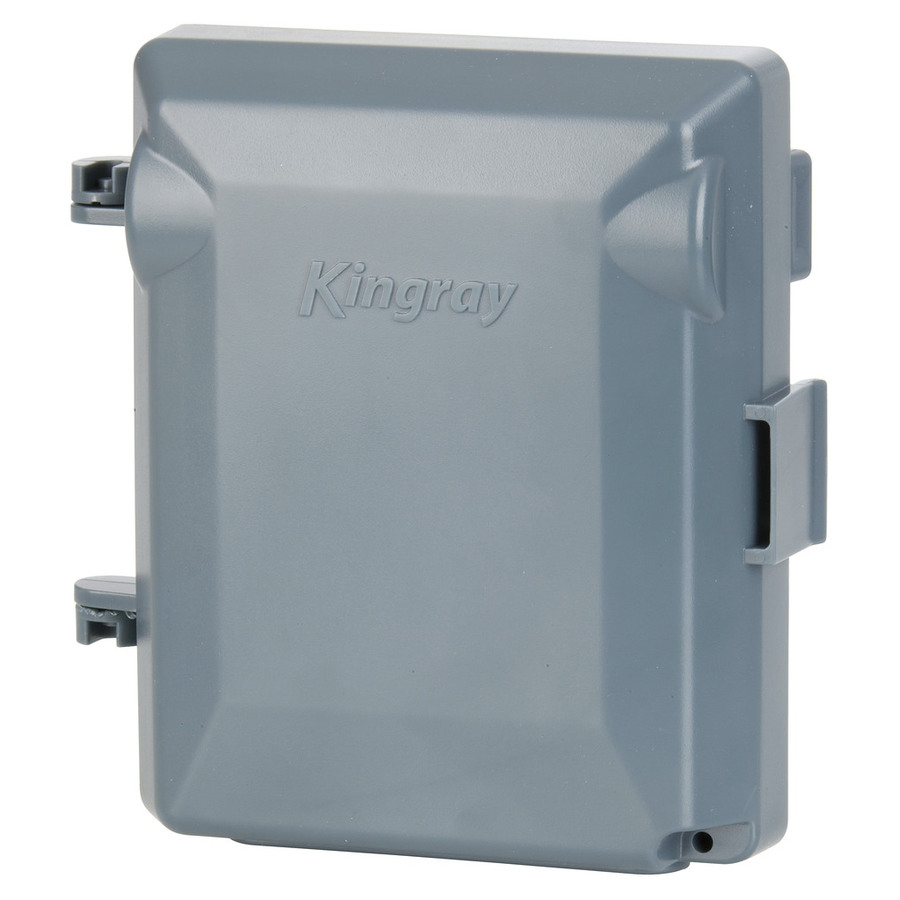

As you may be aware by now, a large chunk of the Australian TV broadcast spectrum is being reallocated for the next generation 4G/LTE mobile phone service. To guard against this, Kingray have produced this Australian made masthead amp that provides a good VHF & UHF TV band gain, and user selectable filters for FM radio, fixed pagers, and the new 4G/LTE band. Supplied with AC power injector and F-type to PAL adaptors. A fantastic product proudly made in Australia.

• FM pass option
• Selectable filters: FM, LTE, fixed pagers
• Combination and separate VHF & UHF Antenna inputs
• Suitable power supplies: LT-3256, LT-3258 or LT-3259

Includes PSK06F power supply.

For more info on Kingray TV antenna products, see our selection guide.


    Specifications

    Antenna Amplifier


    UHF Gain
    35dB
    VHF Frequency Range
    174MHz-230MHz
    VHF Gain
    22dB-26dB
    UHF Gain Control
    15dB
    VHF Noise Figure
    3.5dB
    UHF Frequency Range
    520MHz-694MHz
    UHF Noise Figure
    2.1dB
    Amplifier Type
    Masthead
    VHF Gain Control
    16dB-12dB

    Packaged Dimensions


    Packaged Length
    27.8cm
    Packaged Width
    14.5cm
    Packaged Weight
    0.576kg
    Packaged Volume
    2.4186l
    Packaged Height
    6cm

    Product Availability


    Availability
    Stocked item
    Warranty: 36 Months
