12V 1A SLA Battery Charger
product image thumb
product image thumb
product image thumb

12V 1A SLA Battery Charger

$32.95
A mains powered Lead Acid battery charger designed for small 12V batteries.
Available

Description

1 Year Warranty

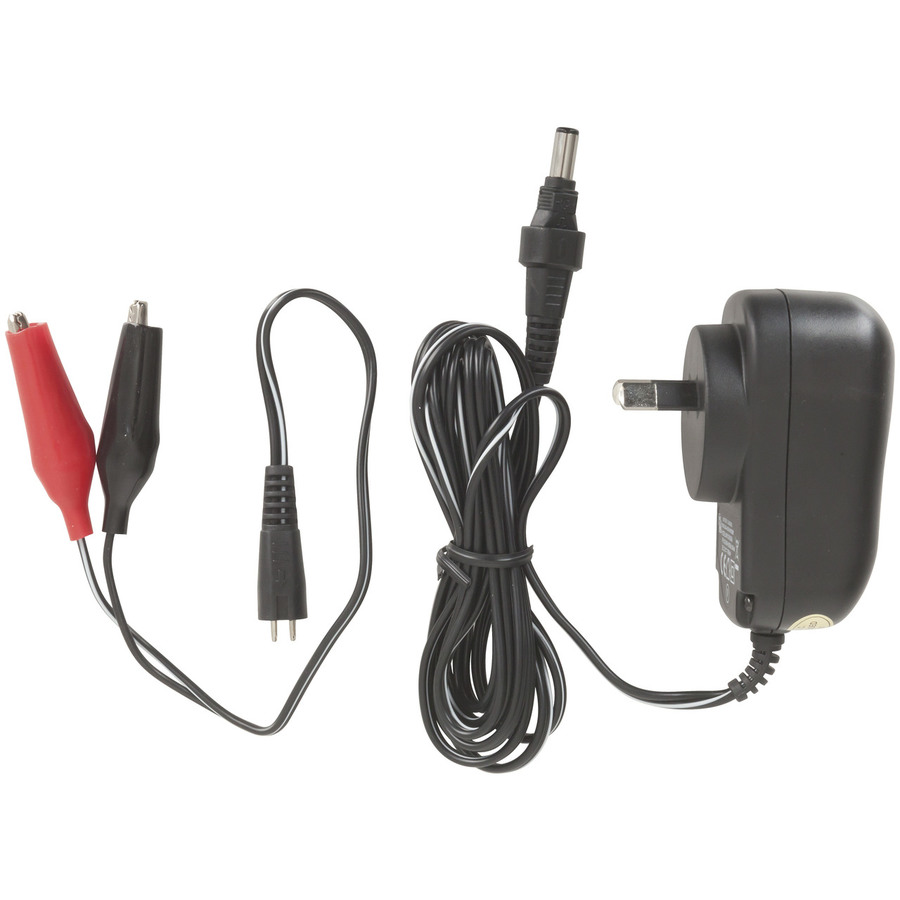

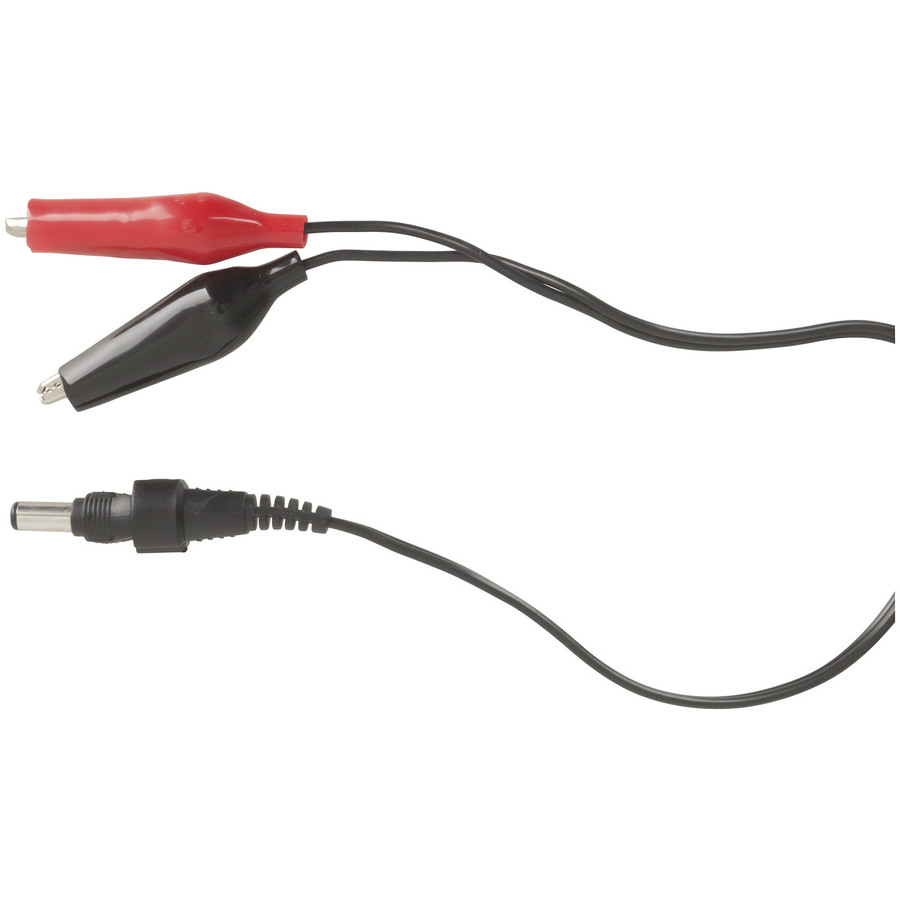

A mains powered Lead Acid battery charger designed for 12V batteries. Features intelligent automatic charge controller to stop charging when the battery is full and maintain the battery with a ‘floating’ charge mode. This feature allows you to leave the charger connected to the battery without risk of overcharging and know your battery is always ready to go. Includes a 2m long cable with interchangeable DC plug and Alligator clips.

Features:

Float output voltage: 13.6V
Bulk charge mode voltage: 14.4V
Suitable for: jet skis and small motor bikes

NOTE: These chargers are not recommended for long-term "maintenance" charging of unsealed lead-acid batteries, the types with removable filler caps and liquid elctrolyte. Long-term continuous float charging of this type of battery may cause loss of water from the electrolyte, ruining the battery. If you are intending to use this charger on these batteries please use an appliance timer such as MS6113 to automatically limit the charging to 30 minutes or so per day.

For More info on Charging Batteries.


Handy Tip Low Current Chargers

Low current output designed to steadily recharge sealed lead acid(SLA) batteries without causing the battery to overheat and become a swollen mess. As a guideline the charger’s current rating shouldbe no more than 10 to 15% of the battery’s ampere-hour rating.

    Specifications

    Product Dimensions


    Length
    70mm
    Cable length
    2m
    Width
    40mm
    Depth
    40mm

    Battery Charger


    Charger Output Voltage
    12V
    Controller Type
    Multi-Stage
    Connection Type
    Alligator Clips
    Charger Output Current
    1A
    Type of Batteries
    Sealed Lead Acid (SLA), Deep Cycle SLA, Deep Cycle Gel Cell, Lead Acid

    Mains powered


    Auto-select mains voltage
    Mains Item connection
    Mains AU/NZ 3 Pin
    Frequency
    50Hz
    Mains Voltage Range
    100V-240V
    Rated for US Mains
    Rated for AU Mains

    Packaged Dimensions


    Packaged Length
    9.8cm
    Packaged Width
    7.9cm
    Packaged Weight
    0.156kg
    Packaged Volume
    0.379358l
    Packaged Height
    4.9cm

    Product Availability


    Availability
    Stocked item
    Warranty: 12 Months
