CAT. No. MB3703

4-Channel Universal Fast Charger with LCD
product image thumb
product image thumb
product image thumb

4-Channel Universal Fast Charger with LCD

$67.95
Powered by USB Type C, this charger has 4 independent charging slots to charge any combination of AA, AAA or 18650 batteries at the same time.
Available

Description

1 Year Warranty

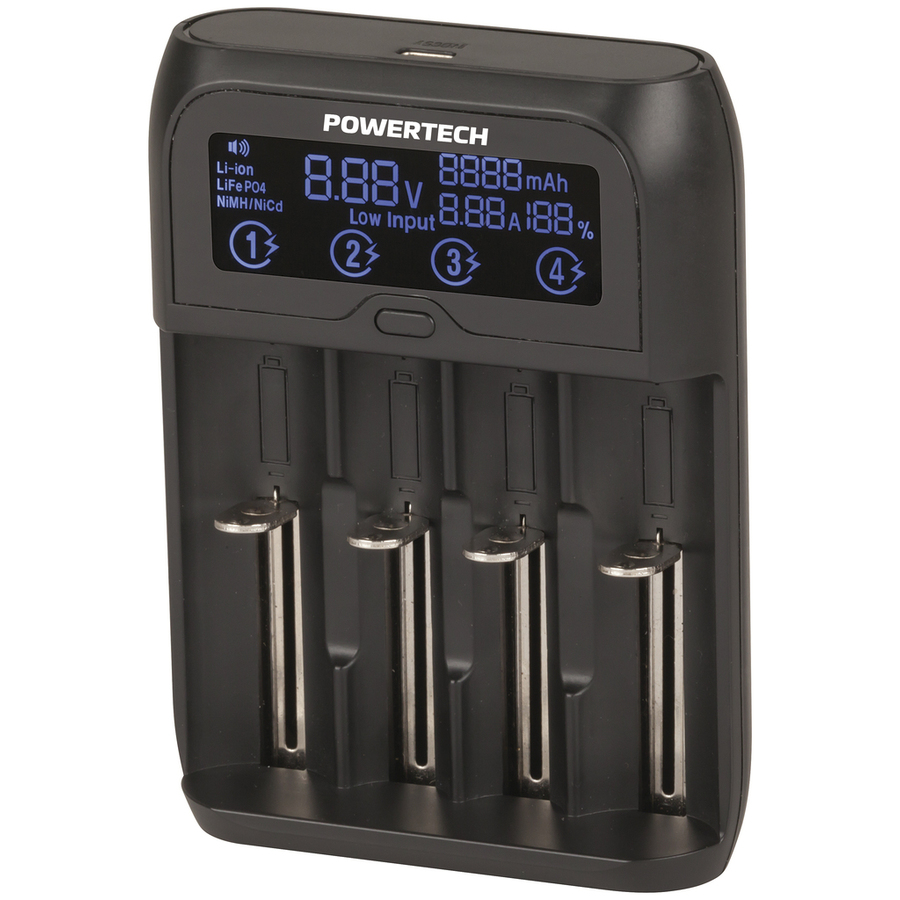

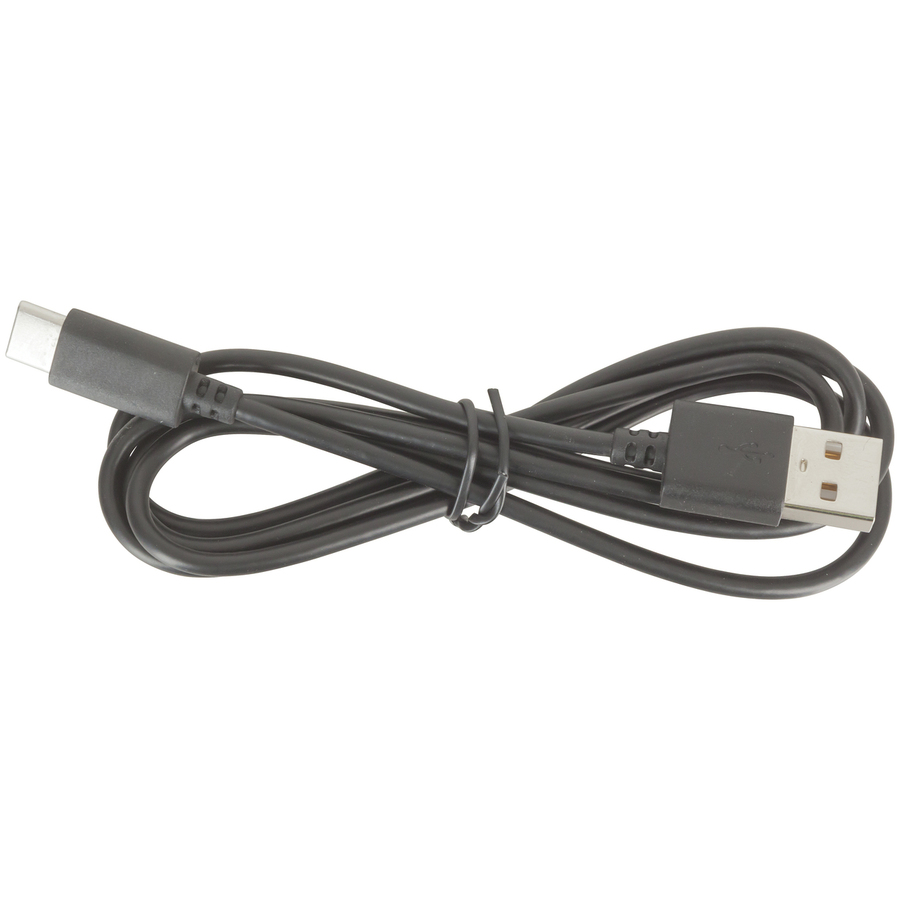

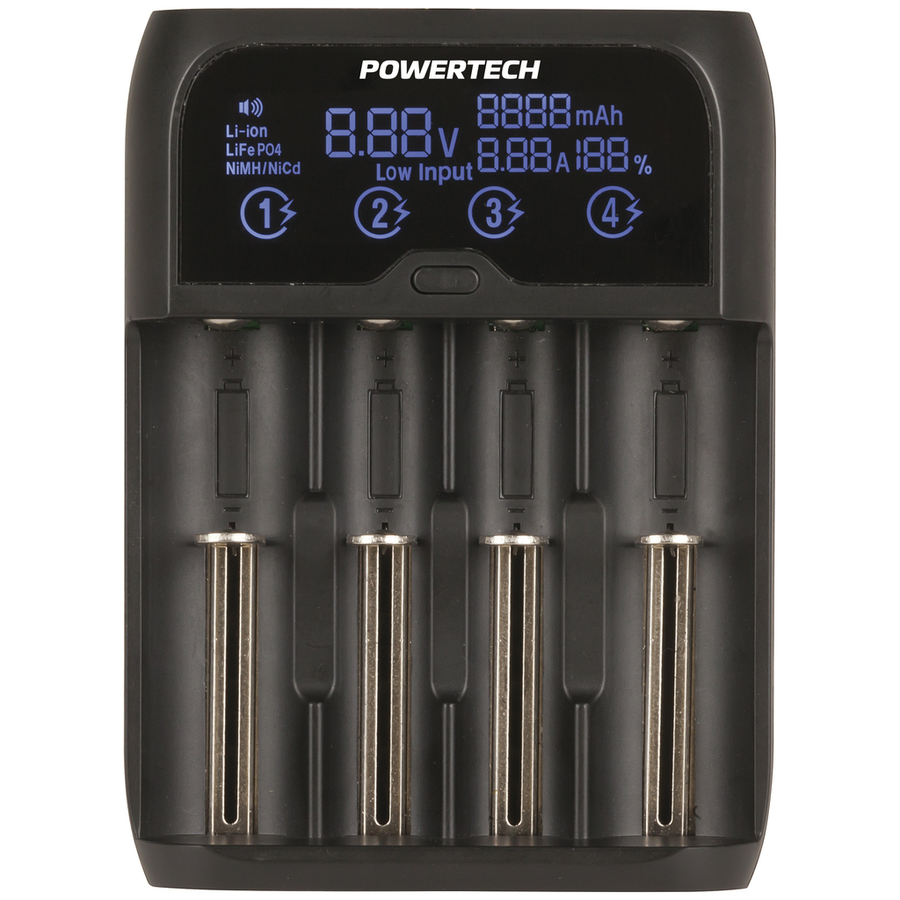

This intelligent charger has four independent charging slots to charge any combination of Ni-MH, Ni-Cd, Li-ion, or LiFePO4 cells at the same time. The microprocessor monitors each battery and provides a safe and effective charge using precise Pulse Width Modulation (PWM) technology. A single Li-ion or LiFePO4 cell can also be fast charged at up to 2A. The high contrast LCD screen provides real-time battery monitoring, including charging current (A), charging capacity (mAh), voltage (V) and battery power (%). Features include alarm and error messages for bad batteries, reverse polarity protection, short circuit, over-charge, and over-temperature. Power comes from an available USB port using the supplied USB Type-C power cable.

Features:
• Suits Ni-MH, N-Cd, Li-ion & LiFePO4
• Intelligent fast charging up to 2A
• Independent charging slots
• LCD screen

Supported Batteries:
3.6-3.7V Li-ion
3.2V LifePO4
1.2V Ni-MH/Ni-Cd


    Specifications

    Battery Charger

    Charger Output Voltage
    		 4.2V, 3.65V, 1.48V
    Reverse Polarity Protection
    Controller Type
    		 PWM
    Charger Output Current
    		 2A, 1A, 650mA, 500mA
    Number of Cells
    		 4pc
    Type of Batteries
    		 Nickel Metal Hydride (Ni-MH), Nickel Cadmium (Ni-Cad), Lithium Ion, Lithium Ferrous Phosphate (LiFePO4)
    Multi-cell Charging Conditions
    		 Independent Charge Control for Each Battery Slot
    Cell Type(s) Charged
    		 AA, AAA, Sub-C, C, 10440, 14500, 16340, 17335, 17500, 17670, 18350, 18650, 22650, 26500, 26650, 14650, 18500, 18700, 20700, 21700, 22700

    USB Powered

    USB Voltage Input
    		 5V
    USB Item Connection
    		 Type C
    USB Lead included
    USB Input Current
    		 2A

    Product Dimensions

    Height
    		 129mm
    Width
    		 96mm
    Depth
    		 32mm
    Weight
    		 170g

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 13.5cm
    Packaged Width
    		 12cm
    Packaged Weight
    		 0.221kg
    Packaged Volume
    		 0.567l
    Packaged Height
    		 3.5cm
    Warranty: 12 Months

    Downloads

    MB3703-manualMain.pdf
