Single Channel Li-ion Battery Charger
Single Channel Li-ion Battery Charger
Single Channel Li-ion Battery Charger
Single Channel Li-ion Battery Charger

CAT. No. MB3705

Single Channel Li-ion Battery Charger
product image thumb
product image thumb
product image thumb

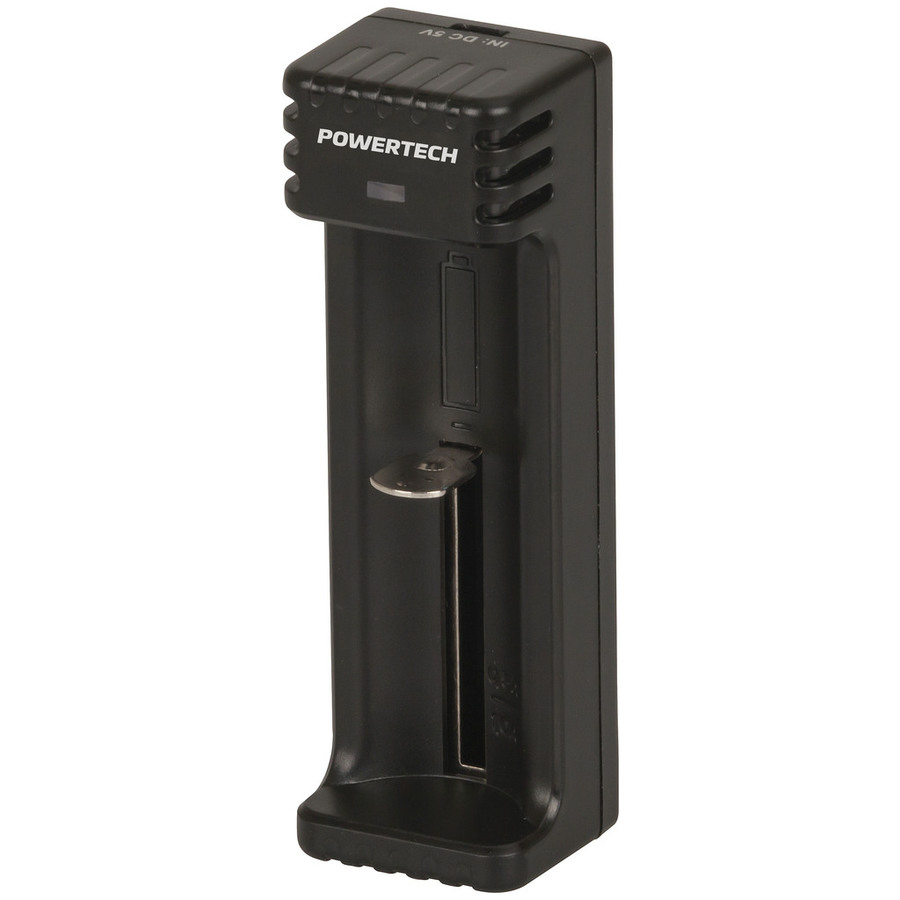

Single Channel Li-ion Battery Charger

$18.95
Fast charge a rechargeable Li-ion cell from a USB power source. Automatic Battery Detection Spring-Loaded Cradle Battery Protection Circuitry
Available

Description

1 Year Warranty

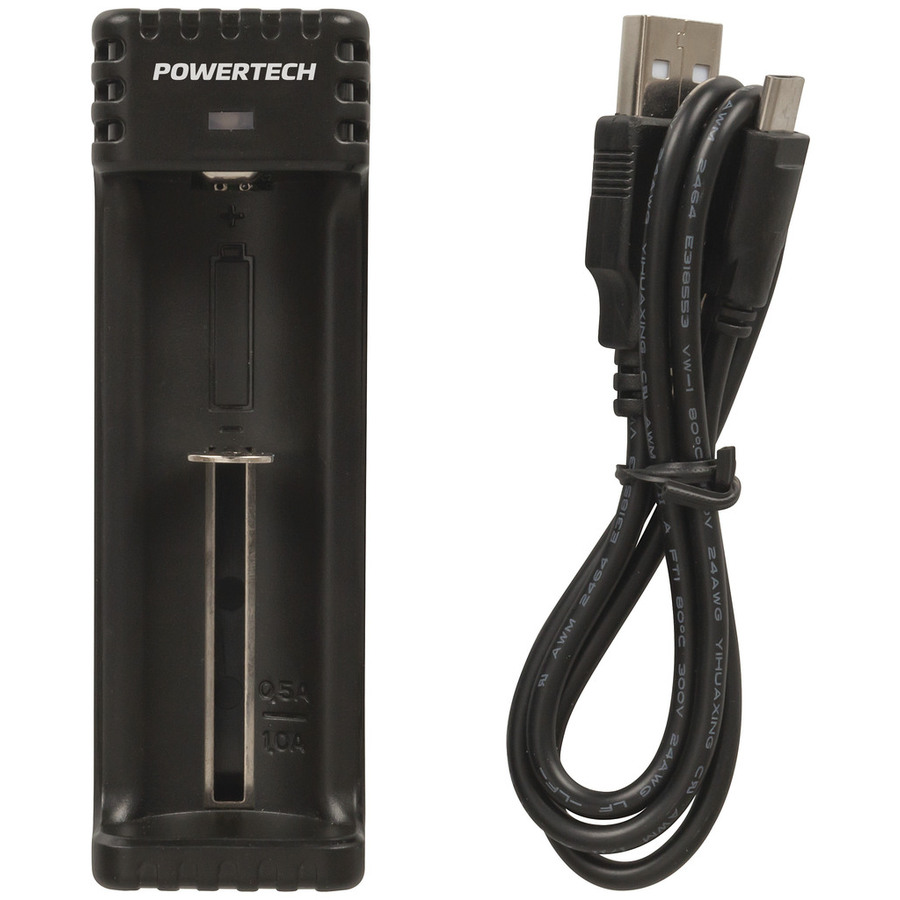

Available as a single cell or twin cell charger. Recharge just about any cylindrical lithium ion battery thanks to the spring loaded terminals. Powered by USB, so no mains power is required. Automatic battery detection to determine if 500mA or 1000mA charge current is required. USB lead included.

• 5VDC 1A Input Power
• 4.2VDC Charge Output
• Short Circuit and Reverse Polarity Protection

Supported Batteries Include:
10440
14500
16340
17335
17670
18490
18650
22650
26500
26650
RCR123A


    Specifications

    Battery Charger

    Charger Output Voltage
    		 4.2V
    Connection Type
    		 Contact Plate
    Charger Output Current
    		 500mA, 1000mA
    Number of Cells
    		 1pc
    Type of Batteries
    		 Lithium Ion
    Cell Type(s) Charged
    		 18650, 22650, 16340, 17335, 26650, 26500, 18490, 14500, 10440, 17670, RCR123A

    USB Powered

    USB Voltage Input
    		 5V
    USB Item Connection
    		 MicroUSB
    USB Lead included
    USB Input Current
    		 1A

    Product Dimensions

    Length
    		 100mm
    Width
    		 32mm
    Depth
    		 28mm
    Weight
    		 33g

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 13.5cm
    Packaged Width
    		 5.2cm
    Packaged Weight
    		 0.058kg
    Packaged Volume
    		 0.2457l
    Packaged Height
    		 3.5cm
    Warranty: 12 Months

    Downloads

    MB3705-manualMain.pdf
