CAT. No. MG4550

500W 1224VDC Wind Turbine | Road Tech Marine
product image thumb

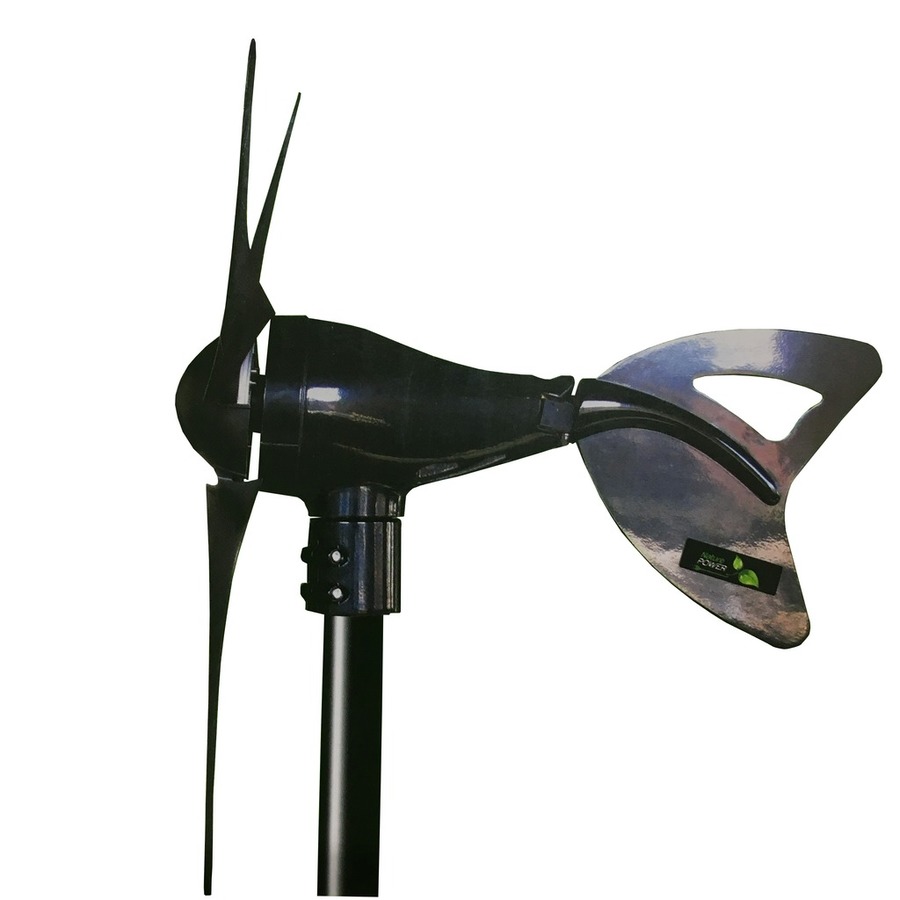

500W 1224VDC Wind Turbine | Road Tech Marine

$799
A marine grade 500W Wind Generator with Smart MPPT controller to charge your battery reserve (1 x12V, 2 x 12V or 1 x 24V).

Out of Stock

Description

3 Year Warranty

The wind is free, so why not use it to harness free energy? This wind turbine has a long lasting brushless alternator for less wear and tear and includes a MPPT charge controller.

This unit features a stainless steel shaft, fasteners and marine grade bearings. The housing is cast aluminium, powder coated to marine spec with carbon fibre blades for strength and efficiency.


Features:

• 12 or 24 volt charging
• Carbon fibre composite blades
• Corrosion resistant coating
• Mounting hardware required: 48mm OD shedule 40 pipe and guy-wires.
• Survival wind speed: 180km/h
• Rated Power: 500W at 50km/h
• Body material: Diecast Aluminium

Please note, unit is not compatible with lithium batteries.



    Specifications

    RTM Historical References


    Previously Sold As
    TES700

    Product Dimensions


    Diameter
    1160mm
    Weight
    6.7kg

    Wind Generator


    Blade Material
    Carbon Fibre
    Start Up Speed
    11km/h
    Output power
    500W
    AC or DC
    DC
    Vertical or Horizontal
    horizontal

    maximum power output


    max power Voltage
    24V

    Packaged Dimensions


    Packaged Length
    67cm
    Packaged Width
    34cm
    Packaged Weight
    8kg
    Packaged Volume
    44.421l
    Packaged Height
    19.5cm
    Warranty: 36 Months

    Downloads
