9V, 1.35VA 150mA Centre Tapped - Type 2840 Transformer

$9.45
Versatile 1.35VA iron core mains transformer with centre-tap output 4.5V to 9.0V output Maximum current output of 150mA
Available

Description

240V Mains Power

Traditional laminated iron core transformers suitable for new projects, hobby projects or as a  replacement in existing equipment. They have a thermal fuse built into the primary winding for added safety and a wide variety is available to suit your specific needs.

 • Primary Connection: 200mm Fly Leads
 • Conforms to AS/NZ 61558.2.6


    Specifications

    Transformers

    Type of Transformer
    		 Laminated Core
    Case Type
    		 2840

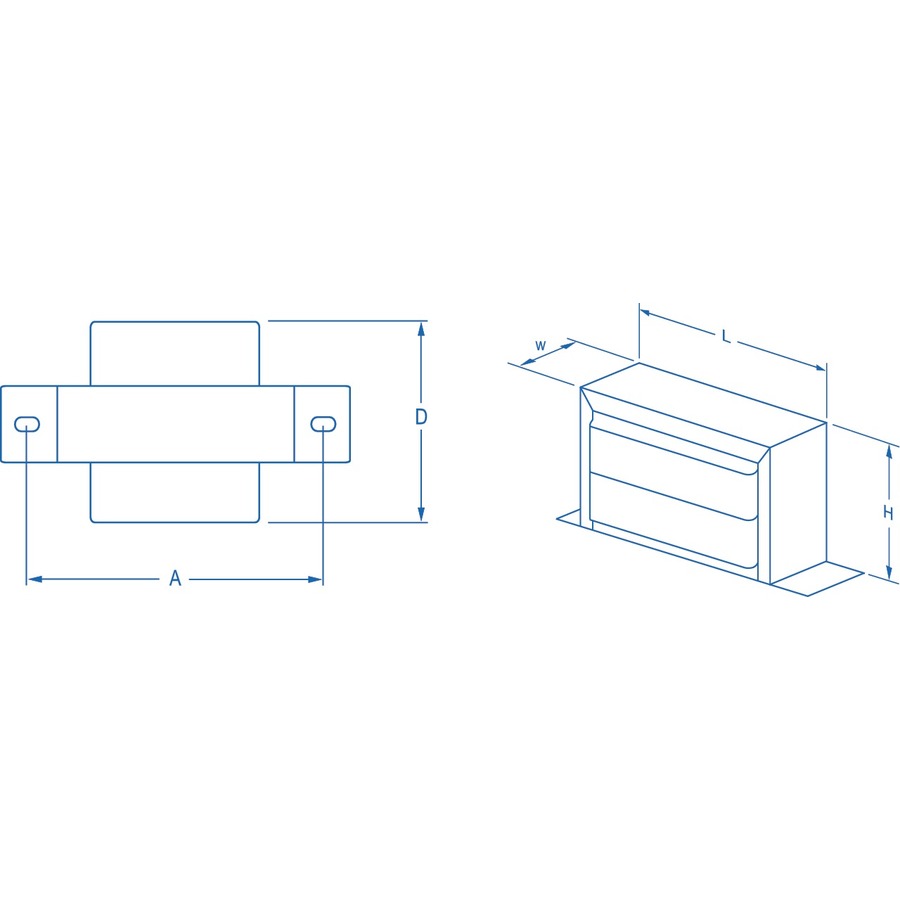

    Core Winding Depth (D)
    		 32mm
    Mount Spacing (A)
    		 45mm
    Primary Winding Connection
    		 Flyleads
    Case Height (H)
    		 32mm
    Temperature Rise Above Ambient at Rated Power
    		 60°C
    Case Length (L)
    		 37mm
    Magnetising Current
    		 30mA
    Core Material
    		 Laminated Iron
    Thermal Fuse
    Secondary Winding Connection
    		 Flyleads
    Secondary Winding Configuration
    		 Centre Tapped
    Regulation
    		 9%
    Case Width (W)
    		 16mm

    Power Conversion and Transformation

    Type of converter or transformer
    		 laminated/toroidal transformer

    Mains powered

    Max Input Power
    		 1.35VA
    Mains Item connection
    		 Bare Leads
    Mains Voltage Range
    		 240V
    Rated for AU Mains

    AC Voltage Rating

    AC Voltage rating
    		 9V, 4.5V
    AV Voltage Tolerance
    		 9%

    AC Current Rating

    AC current rating
    		 150mA

    Product Dimensions

    Weight
    		 120g

    Packaged Dimensions

    Packaged Length
    		 6cm
    Packaged Width
    		 3.6cm
    Packaged Weight
    		 0.14kg
    Packaged Volume
    		 0.0864l
    Packaged Height
    		 4cm

    Product Availability

    Availability
    		 Stocked item
