13.8V 20A Switchmode Bench Power Supply
13.8V 20A Switchmode Bench Power Supply

CAT. No. MP3078

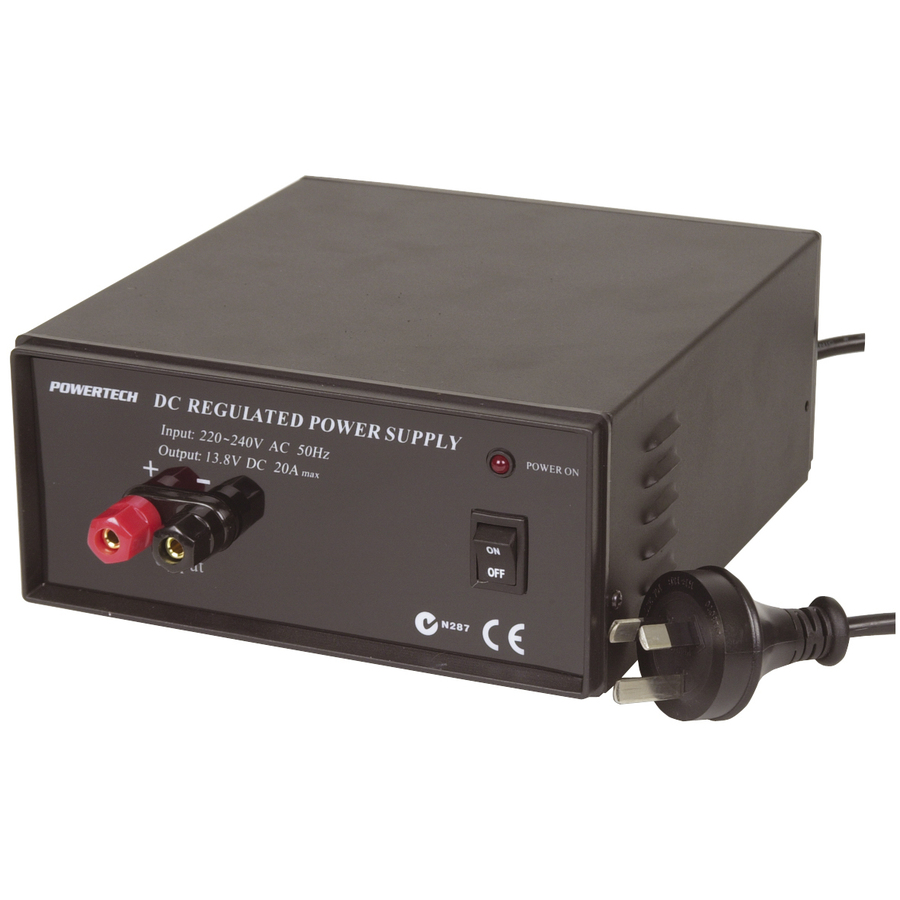

13.8V 20A Switchmode Bench Power Supply
product image thumb

13.8V 20A Switchmode Bench Power Supply

$129
A high powered 13.8V switchmode power supply delivering up to 20amps suitable for use in test and development environments. The internal cooling fan w...

Out of Stock

Description

1 Year Warranty

High current general workshop power supply for equipment, component testing, etc. Ideal for 12V amateur transceivers, linear amps and high powered car stereo bench testing. Internal cooling fans assist cooling at higher temperatures.

Features:
• Banana socket style binding post output
• LED power on indication
• Rear mounted M205 fuse


    Specifications

    Power Supply Units

    Type of Power Supply
    		 laboratory
    Regulation Type
    		 SMPS
    Current Display
    Output Connection
    		 Banana 4mm (standard), Binding Post Terminals
    Voltage Display
    Number of Outputs
    		 1pc

    AC Voltage Rating

    AC Frequency
    		 50Hz
    AC Voltage rating
    		 240V

    DC Voltage Rating

    DC Voltage
    		 13.8V

    DC Current Rating

    DC current rating
    		 20A

    Mains powered

    Mains Item connection
    		 Hard Wired
    Mains lead included
    Frequency
    		 50Hz
    Mains Voltage Range
    		 190V-240V
    Rated for US Mains
    Rated for AU Mains

    Product Dimensions

    Length
    		 170mm
    Height
    		 85mm
    Width
    		 190mm

    Packaged Dimensions

    Packaged Length
    		 22.7cm
    Packaged Width
    		 22.4cm
    Packaged Weight
    		 1.466kg
    Packaged Volume
    		 4.983104l
    Packaged Height
    		 9.8cm

    Product Availability

    Availability
    		 Stocked item
    Warranty: 12 Months
