CAT. No. MP3080

0-260VAC Variable Laboratory Autotransfomer (Variac) - 500VA
product image thumb

0-260VAC Variable Laboratory Autotransfomer (Variac) - 500VA

$289
The variable autotransformer (Variac is the trade name of a popular brand) is one of the most useful and efficient devices ever invented for the contr...

Out of Stock

Description

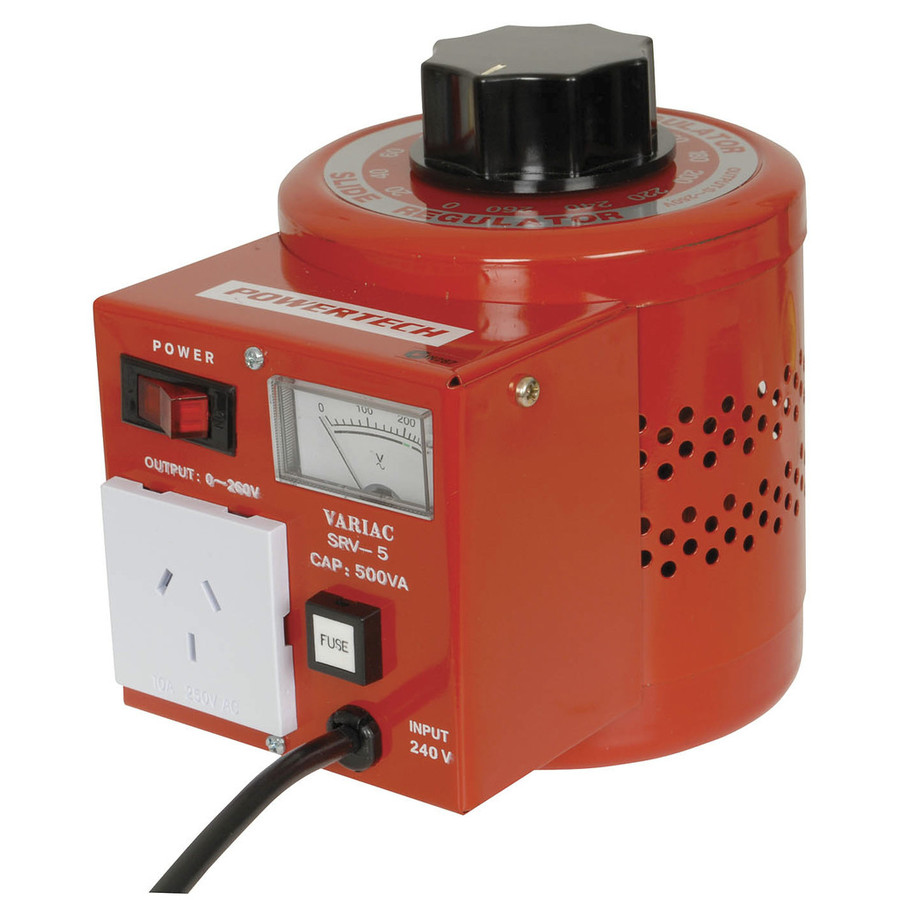

The variable autotransformer (Variac is the trade name of a popular brand) is one of the most useful and efficient devices ever invented for the control of AC votage and of voltage-dependent parameters such as current, power, temperature, light intensity, motor speed etc. It enables the AC input to a mains powered appliance to be easily varied from 0 to full line voltage (or greater) max 3 amps.  Encased in heavy-duty steel housing it also features on/off switch, output-voltage meter, mains-supply lead and standard 3-pin power output. A must for testing appliance performance under real (simulated) mains fluctuations.

Now supplied with slow blow fuses for extra reliability.


    Specifications

    Power Supply Units


    Type of Power Supply
    laboratory
    Output Connection
    Mains AU/NZ 3 Pin
    Number of Outputs
    1pc

    AC Voltage Rating


    AC Frequency
    50Hz
    AC Voltage rating
    0V, 260V

    Mains powered


    Max Input Power
    500VA
    Mains Item connection
    Hard Wired
    Frequency
    50Hz
    Mains Voltage Range
    240V-50V

    Product Dimensions


    Height
    160mm
    Width
    120mm
    Depth
    165mm

    Packaged Dimensions


    Packaged Length
    20.8cm
    Packaged Width
    20.6cm
    Packaged Weight
    4.62kg
    Packaged Volume
    10.112128l
    Packaged Height
    23.6cm

    Product Availability


    Availability
    Stocked item
