CAT. No. MP3087

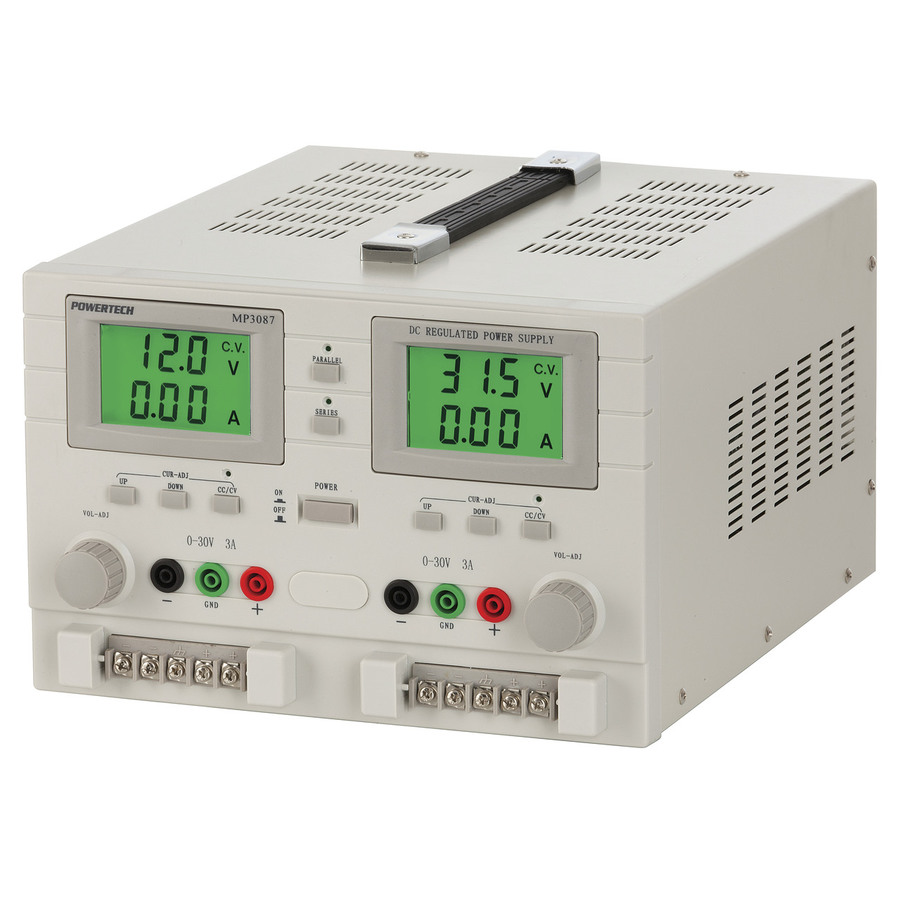

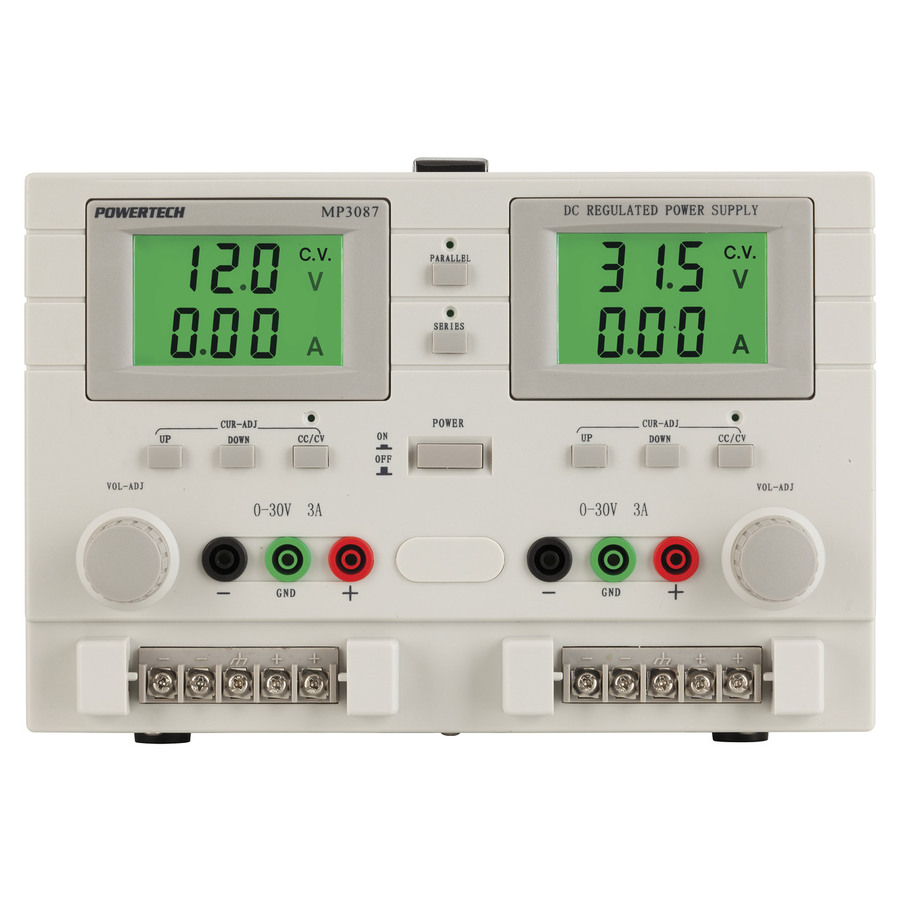

0 to 32VDC Dual Output, Dual Tracking Laboratory Power Supply
product image thumb
product image thumb
product image thumb

0 to 32VDC Dual Output, Dual Tracking Laboratory Power Supply

$439
This automatic constant-voltage/constant-current transfer type power supply is effectively two 0-32VDC 3 Amp power supplies in one case. The two outputs can be operated independently, parallel or series.

Out of Stock

Description

1 Year Warranty

This automatic constant-voltage/constant-current transfer type power supply is effectively two 0-32VDC 3 Amp power supplies in one case. The two outputs can be operated independently, connected in parallel , or series for multiple output currents and voltages. Coarse and fine voltage controls are provided on both outputs, along with current limit control. Both outputs have independent digital voltage and current meters. Displays are backlit and extremely easy to read. Load regulation 10mV max.


    Specifications

    Power Supply Units


    Type of Power Supply
    laboratory
    Regulation Type
    Regulated
    Ripple Voltage
    1mV
    Output Connection
    Banana 4mm (standard)
    Number of Outputs
    2pc

    AC Voltage Rating


    AC Frequency
    50Hz
    AC Voltage rating
    240V

    DC Voltage Rating


    DC Voltage
    0V, 32V

    DC Current Rating


    DC current rating
    3A

    Mains powered


    Mains Item connection
    Standard IEC320 (C13/C14)
    Frequency
    50Hz
    Mains Voltage Range
    220V-240V

    Product Dimensions


    Height
    185mm
    Width
    260mm
    Depth
    400mm
    Weight
    10kg

    Packaged Dimensions


    Packaged Length
    45.5cm
    Packaged Width
    35cm
    Packaged Weight
    14.5kg
    Packaged Volume
    43.79375l
    Packaged Height
    27.5cm

    Product Availability


    Availability
    Special Order
    Warranty: 12 Months
