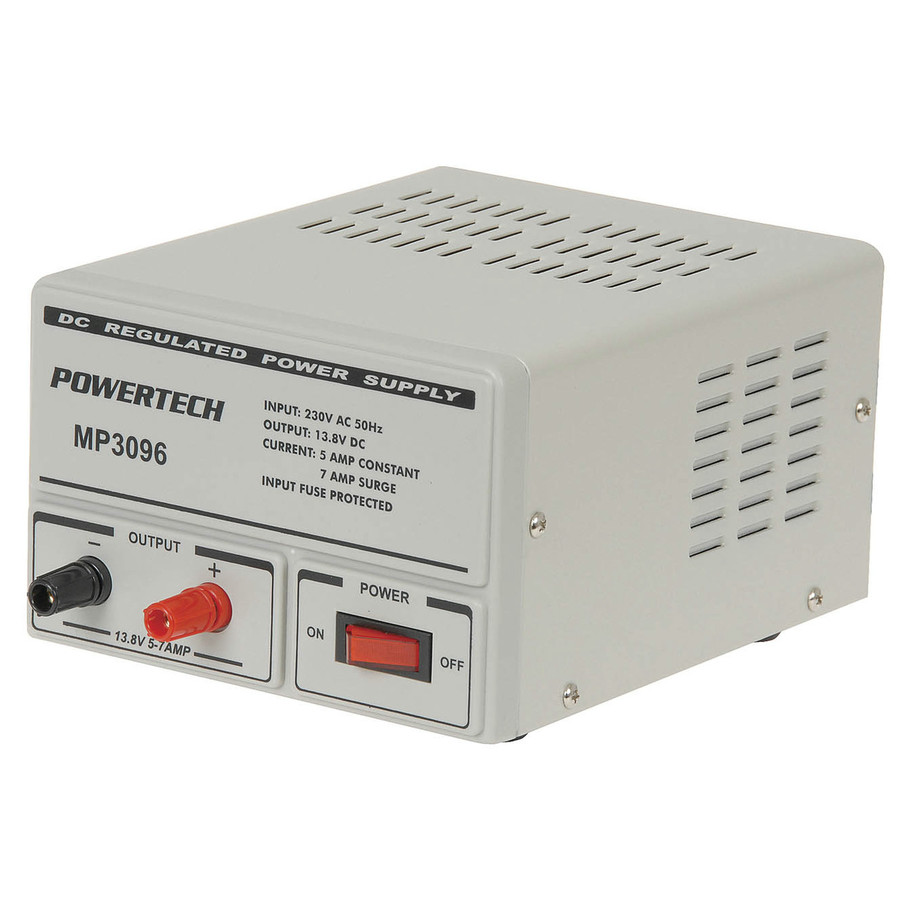

13.8 Volt 5 Amp DC Lab Power Supply
13.8 Volt 5 Amp DC Lab Power Supply
13.8 Volt 5 Amp DC Lab Power Supply

CAT. No. MP3096

13.8 Volt 5 Amp DC Lab Power Supply
product image thumb
product image thumb

13.8 Volt 5 Amp DC Lab Power Supply

$139
We have been looking for a cost effective range of 13.8VDC bench/Lab power supplies for some time and are happy that we have finally found them. These...

Out of Stock

Description

1 Year Warranty

We have been looking for a cost effective range of 13.8VDC bench/Lab power supplies for some time and are happy that we have finally found them. These good looking power supplies are available in three current capacities of 5 amp, 10 amp, and 20 amp. They use proven technology and are designed to give long service life in workshop situations. The range features short circuit protection on the output and a fused input. Voltage regulation:   <5%

    Specifications

    Power Supply Units

    Type of Power Supply
    		 laboratory
    Regulation Type
    		 Regulated
    Current Display
    Ripple Voltage
    		 100MV
    Output Connection
    		 Banana 4mm (standard), Binding Post Terminals
    Voltage Display
    Number of Outputs
    		 1pc

    AC Voltage Rating

    AC Frequency
    		 50Hz
    AC Voltage rating
    		 240V

    DC Voltage Rating

    DC Voltage
    		 13.8V

    DC Current Rating

    DC Current Surge Rating
    		 7A
    DC current rating
    		 5A

    Mains powered

    Frequency
    		 50Hz
    Mains Voltage Range
    		 220V-240V
    Rated for US Mains
    Rated for AU Mains

    Product Dimensions

    Height
    		 160mm
    Width
    		 130mm
    Depth
    		 320mm

    Packaged Dimensions

    Packaged Length
    		 27.9cm
    Packaged Width
    		 17.9cm
    Packaged Weight
    		 3.148kg
    Packaged Volume
    		 6.242625l
    Packaged Height
    		 12.5cm

    Product Availability

    Availability
    		 Stocked item
    Warranty: 12 Months
