CAT. No. MP3319

5-19.5V DC 45W Power Supply 7DC Plugs
product image thumb
product image thumb
product image thumb

5-19.5V DC 45W Power Supply 7DC Plugs

$64.95
A universal power supply to suit a variety of applications with short circuit and overload protection and low energy consumption.
Available

Description

1 Year Warranty
240V Mains Power

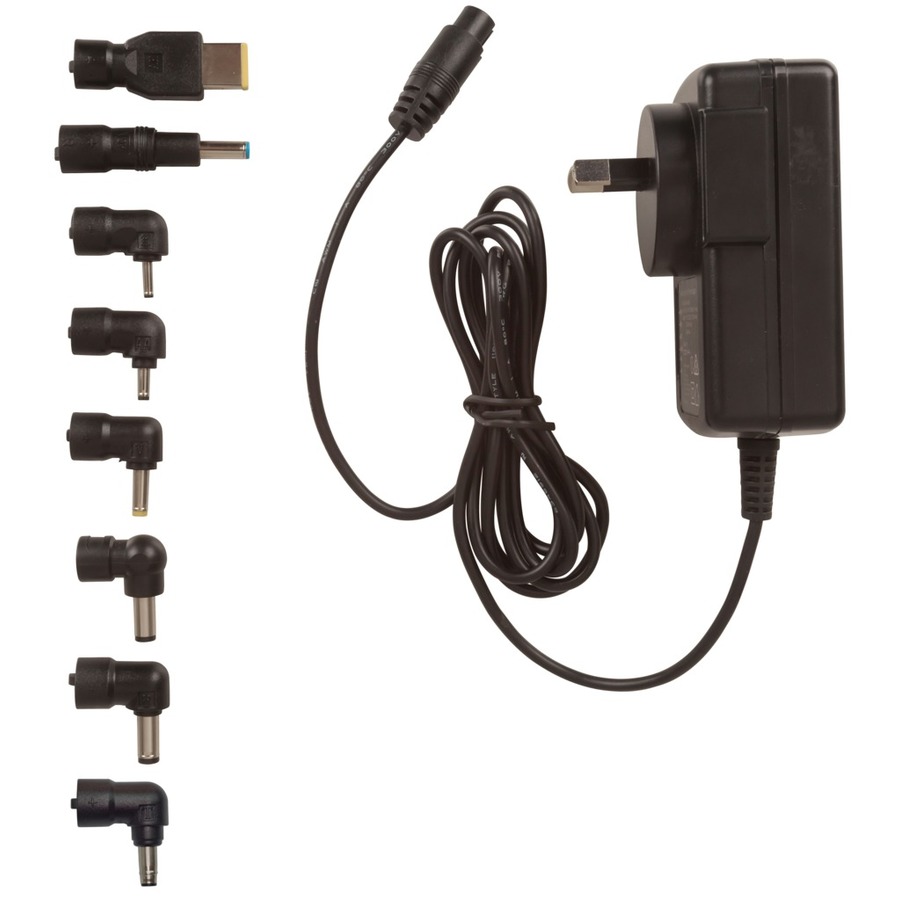

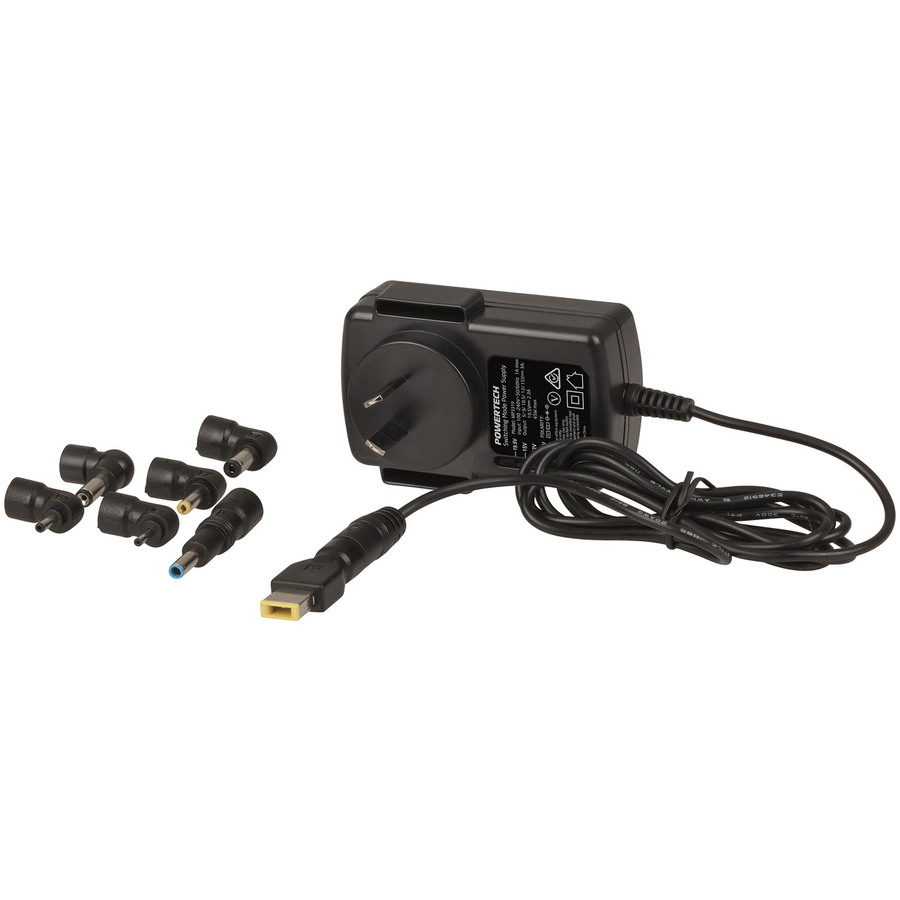

This universal power supply suits a variety of applications from powering small devices that run on 5V, 9V, 10.5V, 12V or 15V up to laptops that run on 19.5V. Voltage is manually selectable and there are 8 detachable adaptors to fit the major manufacturers’ DC power input sockets, including laptops from Dell, Toshiba, IBM, Lenovo, HP, Acer, and Samsung. The power supply has a slim plug-in design with LED power indicator, reliable short circuit and overload protection, and a generous length lead.

Features:
- Plug Pack Design
- 8 Detachable Plugs and 6 output selections
- Short circuit and overload protection
- High efficiency
- Low energy consumption

Plug Dimensions:
AA: 1.0 x 3.0mm
AG: 3.9 x 4.5mm
AH: Rectangular
R: 1.7 x 5.5mm
V: 1.7 x 4.0mm
P: 2.5 x 5.5mm
T: 1.7 x 4.8mm
G: 0.7 x 2.5mm

    Specifications

    Power Supply Units


    Type of Power Supply
    Plug pack
    Regulation Type
    SMPS
    Number of Output Plugs
    8pc
    Special Application
    Laptop/Notbook Computer

    DC Voltage Rating


    DC Voltage
    5V, 9V, 10.5V, 12V, 15V, 19.5V

    DC Current Rating


    DC current rating
    3A

    Mains powered


    Frequency
    50Hz-60Hz
    Mains Voltage Range
    100V-240V
    Rated for AU Mains

    Power Rating


    Maximum Power
    45W

    Product Dimensions


    Cable length
    1.65m
    Height
    85mm
    Width
    60mm
    Depth
    58mm
    Weight
    170g

    Product Availability


    Availability
    Stocked item

    Packaged Dimensions


    Packaged Length
    14.5cm
    Packaged Width
    9.5cm
    Packaged Weight
    0.25kg
    Packaged Volume
    0.90915l
    Packaged Height
    6.6cm
    Warranty: 12 Months

    Downloads
