Twin USB Panel or Surface Mount Outlet 5V 3.1A
Twin USB Panel or Surface Mount Outlet 5V 3.1A
Twin USB Panel or Surface Mount Outlet 5V 3.1A

CAT. No. MP3616

Twin USB Panel or Surface Mount Outlet 5V 3.1A
product image thumb
product image thumb

Twin USB Panel or Surface Mount Outlet 5V 3.1A

$30.95
Panel or surface mounted twin USB charge socket for in-vehicle charging, suitable for 12V or 24V vehicles.
Available

Description

1 Year Warranty

Get rid of your messy cigarette lighter car chargers, and fit something more permanent and better looking. This 2 port USB charger has one port with 1.0A for charging a Smartphone, and the 2nd port can deliver 2.1A for fast charging your Tablet. Input power compatible with 12V and 24V battery systems, with connection via 6.3mm spade terminals.

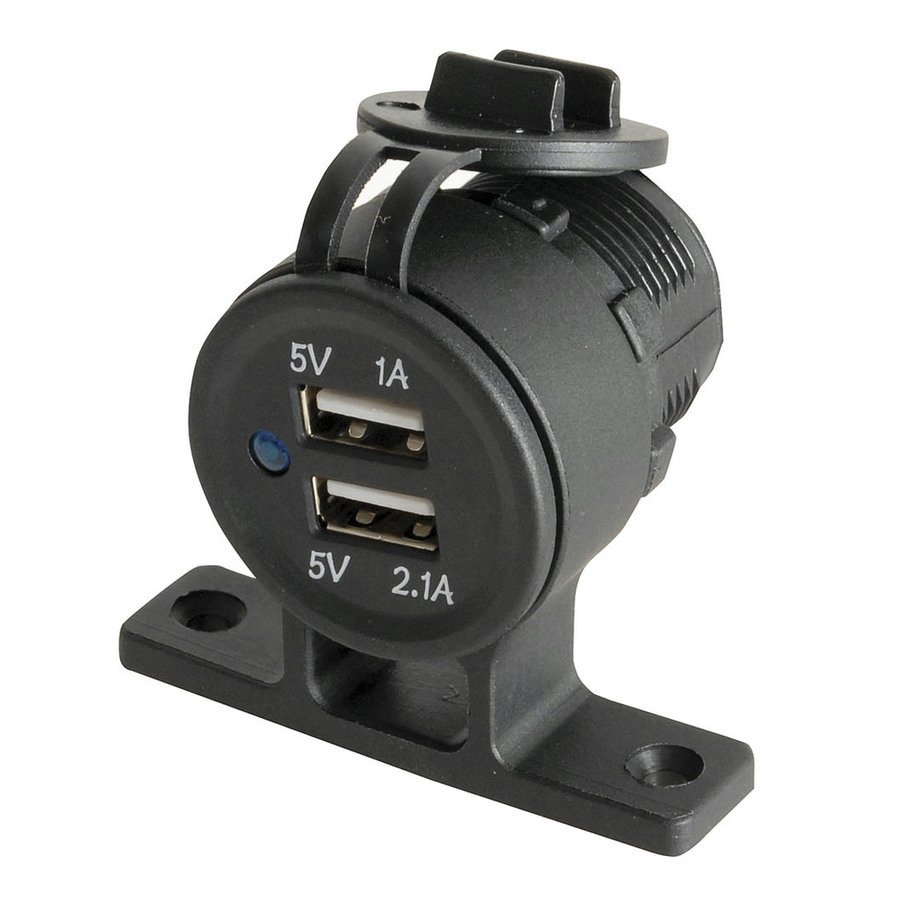

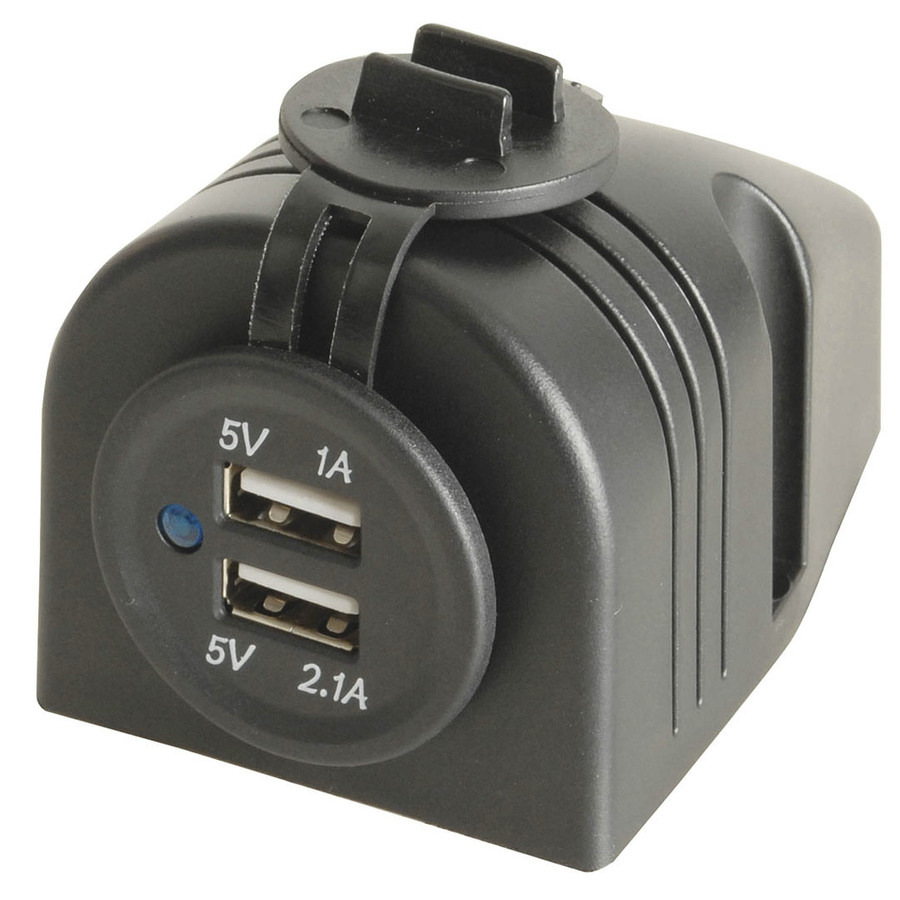

* Supplied with panel mount, under dash bracket, and a surface mount "hood"

Dimensions:
• 2port USB Charger: 36(Dia) x 50(D)mm
• Panel mount: 60(W) x 42(H)mm
• Under dash bracket: 58(W) x 51(H) x 15(D)mm
• Surface mount hood: 55(W) x 80(L) x 50(H)mm


    Specifications

    DC Voltage Rating

    DC Voltage
    		 12V

    DC Current Rating

    DC current rating
    		 3.1A

    DC to DC Converter

    Output Type
    		 USB Type A
    Output Connection
    		 Socket
    Number of Outputs
    		 2pc

    Power Conversion and Transformation

    Type of converter or transformer
    		 DC to DC

    Product Dimensions

    Height
    		 51mm
    Width
    		 58mm
    Depth
    		 15mm

    Packaged Dimensions

    Packaged Length
    		 18cm
    Packaged Width
    		 8.1cm
    Packaged Weight
    		 0.116kg
    Packaged Volume
    		 0.78732l
    Packaged Height
    		 5.4cm

    Product Availability

    Availability
    		 Stocked item
    Warranty: 12 Months
