CAT. No. MP3800

Compact Switchmode Laboratory Power Supply
product image thumb
product image thumb

Compact Switchmode Laboratory Power Supply

$219
Compact size, high current, variable output and fan cooling make these the ideal power supply for your bench. They are protected against thermal overl...
Available

Description

1 Year Warranty

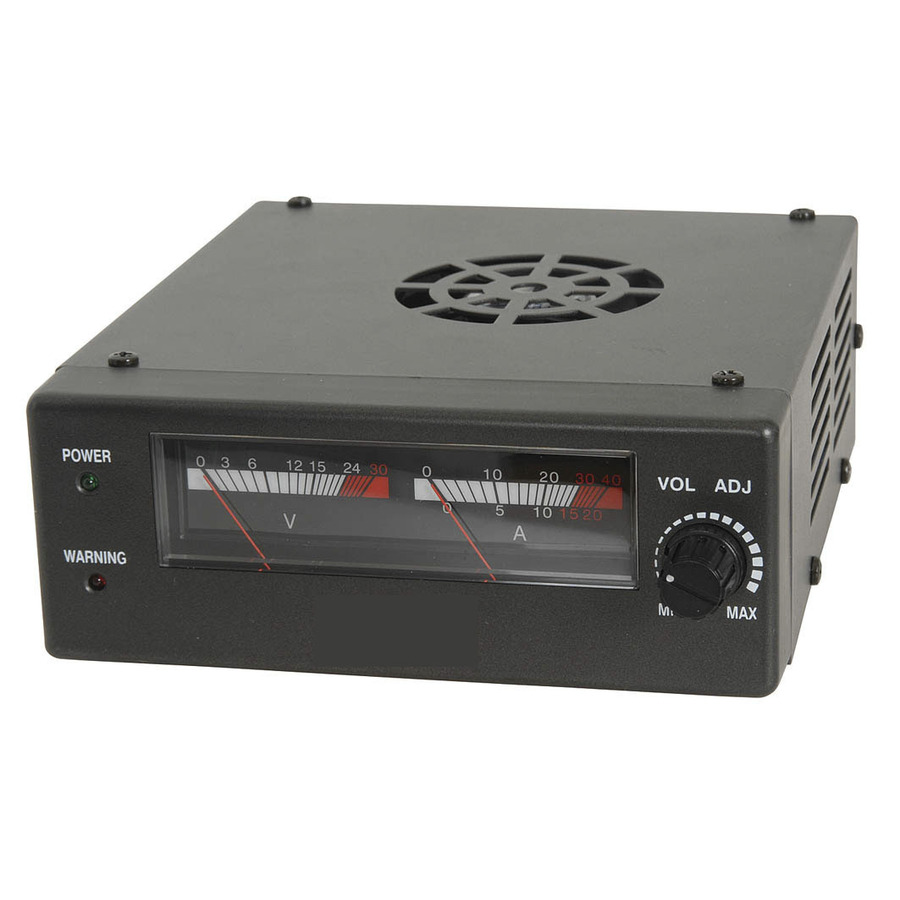

Compact size, high current, variable output and fan cooling make these the ideal power supply for your bench. They are protected against thermal overload and short circuit and will display a warning LED in the event of a fault condition. Current and voltage are displayed on separate backlit analogue meters.

Two models available:

MP-3800 Compact Switchmode Lab Power Supply 0 - 24V

Current output: Max 17A, 6A continuous at 24VDC - refer User Manual specifications


    Specifications

    Power Supply Units

    Type of Power Supply
    		 laboratory
    Regulation Type
    		 SMPS
    Current Display
    Ripple Voltage
    		 9mV
    Output Connection

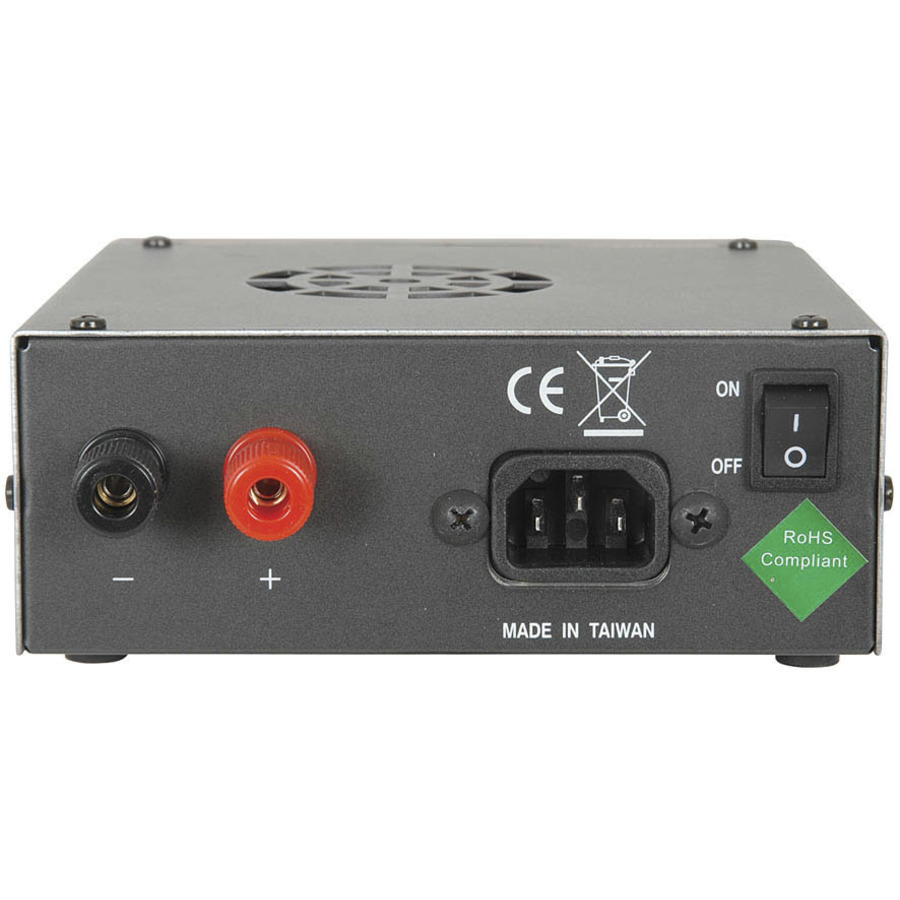

    		 Banana 4mm (standard), Binding Post Terminals
    Voltage Display
    Number of Outputs
    		 1pc

    AC Voltage Rating

    AC Frequency
    		 50Hz
    AC Voltage rating
    		 230V

    DC Current Rating

    DC current rating
    		 15A

    Mains powered

    Auto-select mains voltage
    Mains Item connection
    		 Standard IEC320 (C13/C14)
    Mains lead included
    Frequency
    		 50Hz
    Mains Voltage Range
    		 230V
    Rated for US Mains
    Rated for AU Mains

    Product Dimensions

    Height
    		 62mm
    Width
    		 148mm
    Depth
    		 162mm

    Packaged Dimensions

    Packaged Length
    		 20.5cm
    Packaged Width
    		 19.5cm
    Packaged Weight
    		 1.505kg
    Packaged Volume
    		 2.79825l
    Packaged Height
    		 7cm

    Product Availability

    Availability
    		 Stocked item
    Warranty: 12 Months

    Downloads

    MP3800-manualMain.pdf
