CAT. No. MP3922

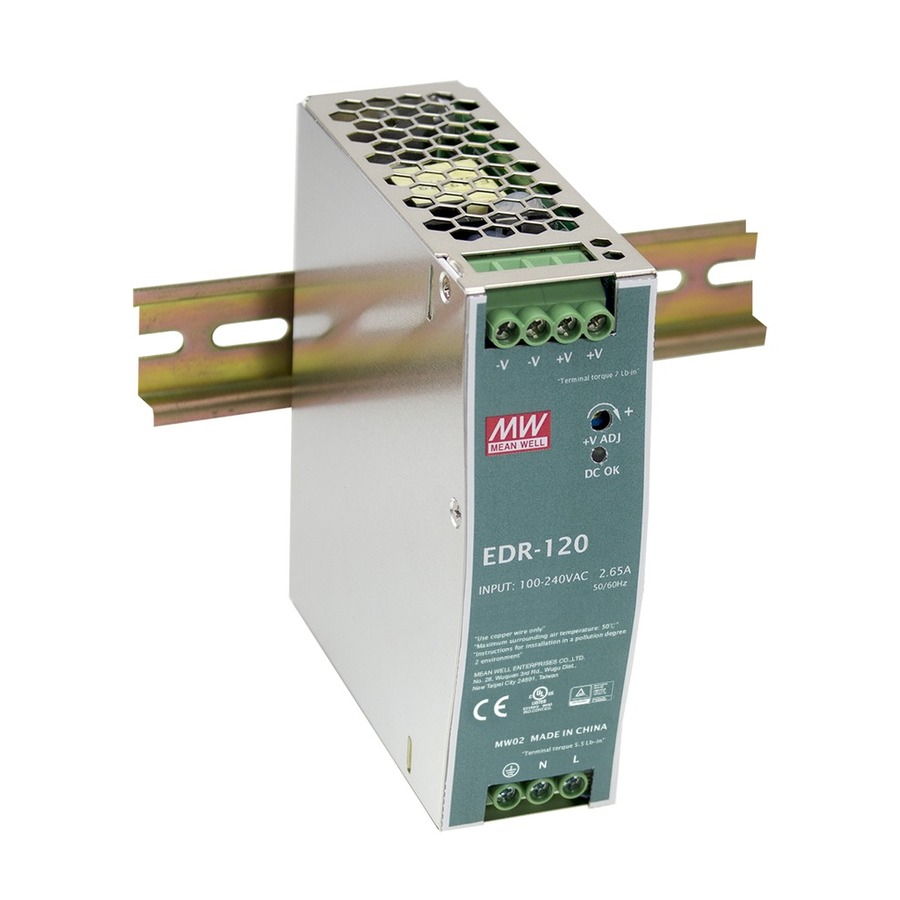

120W 12V 10A DIN Rail EDR Power Supply
$109
Economical and slim solution from Mean Well. Constant current mode for overload protection for various inductive or capacitive applications.
Available
Description
3 Year WarrantyMean Well EDR Din Rail Power Supplies are an economical and slim solution which adapt to be installed on TS-35/7.5 or 15 mounting rails. They are 40mm wide which allows plenty of space to be saved in cabinets. They are designed with metal housing that enhances the unit’s power dissipation. It is equipped with constant current mode for over-load protection fitting various inductive or capacitive applications.
Features:
Features:
• Universal AC input / Full range
• Cooling by free air convection
• Installable on DIN rail TS-35/7.5 or 15
• 100% full load burn-in test
• Low cost
• 3 year warranty
Specifications:
Specifications:
Model Number: EDR-120-12
Output Voltage: 12VDC
Output Current: 10A
Ripple & Noise: 100mV
Efficiency: 85%
Input Voltage: 90~264VAC, 127~370VDC
Frequency Range: 47~63Hz
In Rush Current: 35A @ 230VAC
DIN Rail Compatibility: TS-35/7.5 or 15 mountable
Dimensions: 125.2(L) x 40(W) x 113.5(D)mm
Note: DIN Rail not included
