CAT. No. PA0952

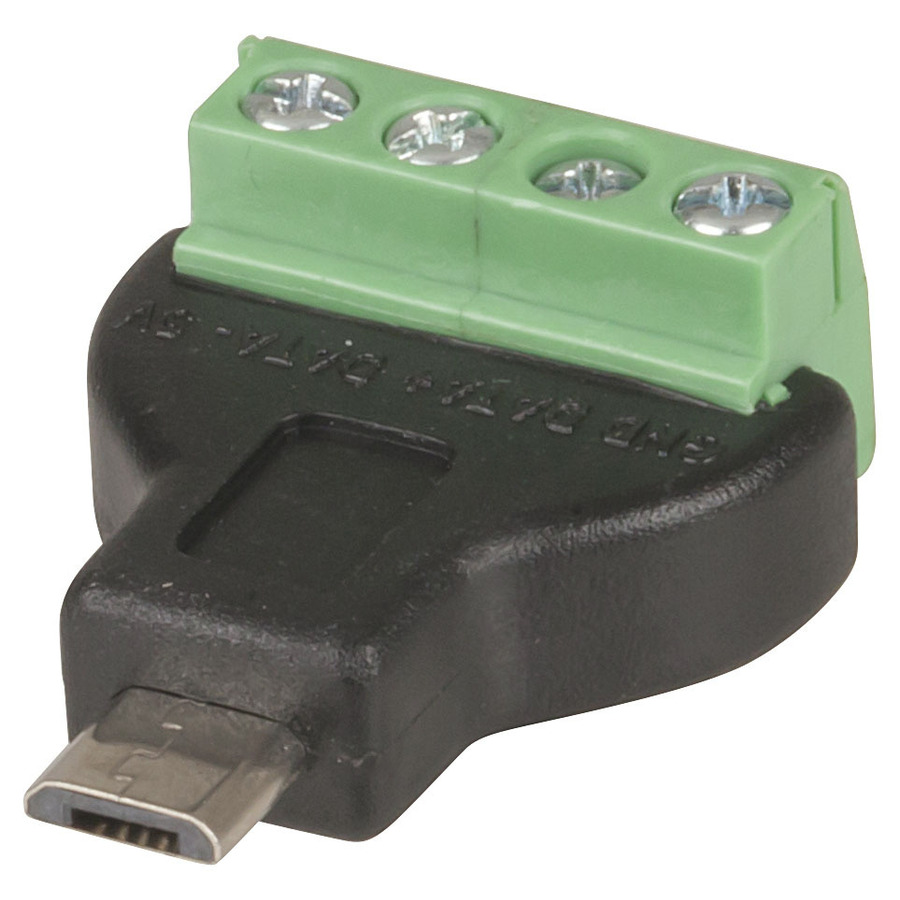

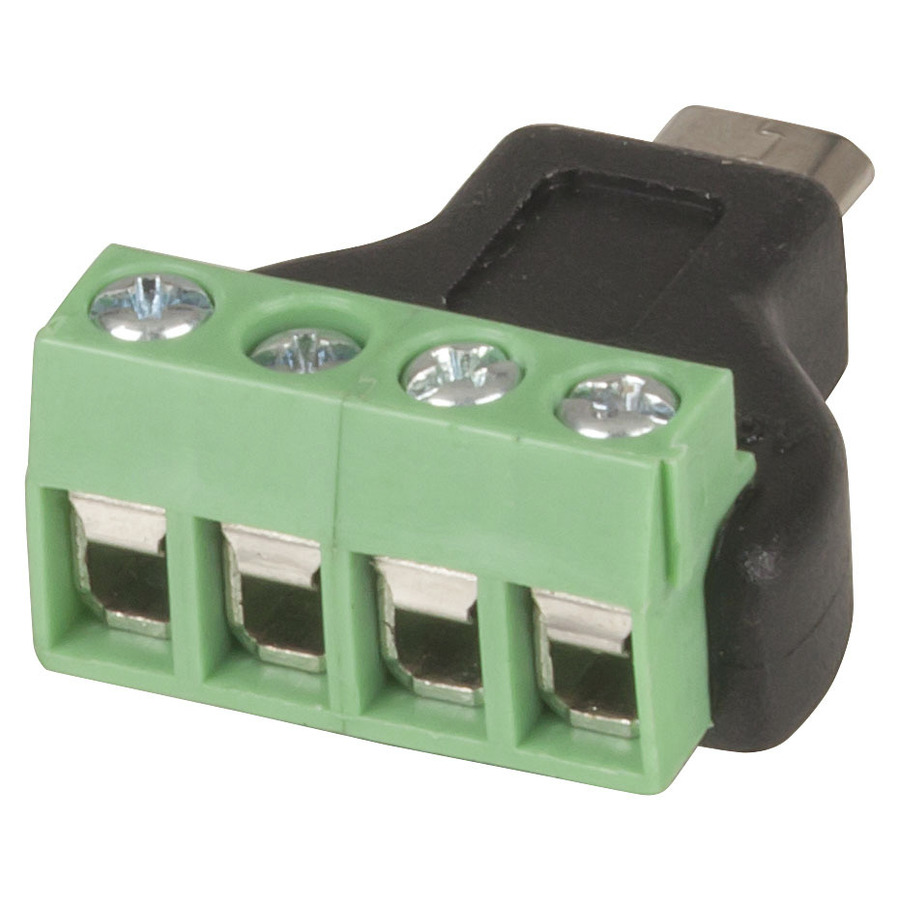

USB 2.0 Micro B Plug to 4-Way Screw Terminal Header Adaptor
product image thumb
product image thumb

USB 2.0 Micro B Plug to 4-Way Screw Terminal Header Adaptor

$12.95
USB Micro B plug to a 4-way screw terminal block for temporary or prototyping applications
Available

Description

USB 2.0

USB Micro B plug to a 4-way screw terminal block for temporary or prototyping applications. No soldering required.

• Insulation Resistance: 100MΩ @ 500VDC min

    Specifications

    Plug or Socket

    Contacts / Pins
    		 4pc
    Device
    		 Plug
    Contact resistance
    		 0m?-30m?
    Insulation resistance
    		 100M?
    Plug or Socket Type
    		 USB Micro Type B
    Attachment Method
    		 Screw

    DC Voltage Rating

    DC Voltage
    		 5V

    DC Current Rating

    DC current rating
    		 1.5A

    Product Dimensions

    Length
    		 30mm
    Height
    		 12mm
    Width
    		 25mm
    Weight
    		 5g

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 3cm
    Packaged Width
    		 2.5cm
    Packaged Weight
    		 0.008kg
    Packaged Volume
    		 0.009l
    Packaged Height
    		 1.2cm

    Downloads

    PA0952-dataSheetMain.pdf
