CAT. No. PH9200

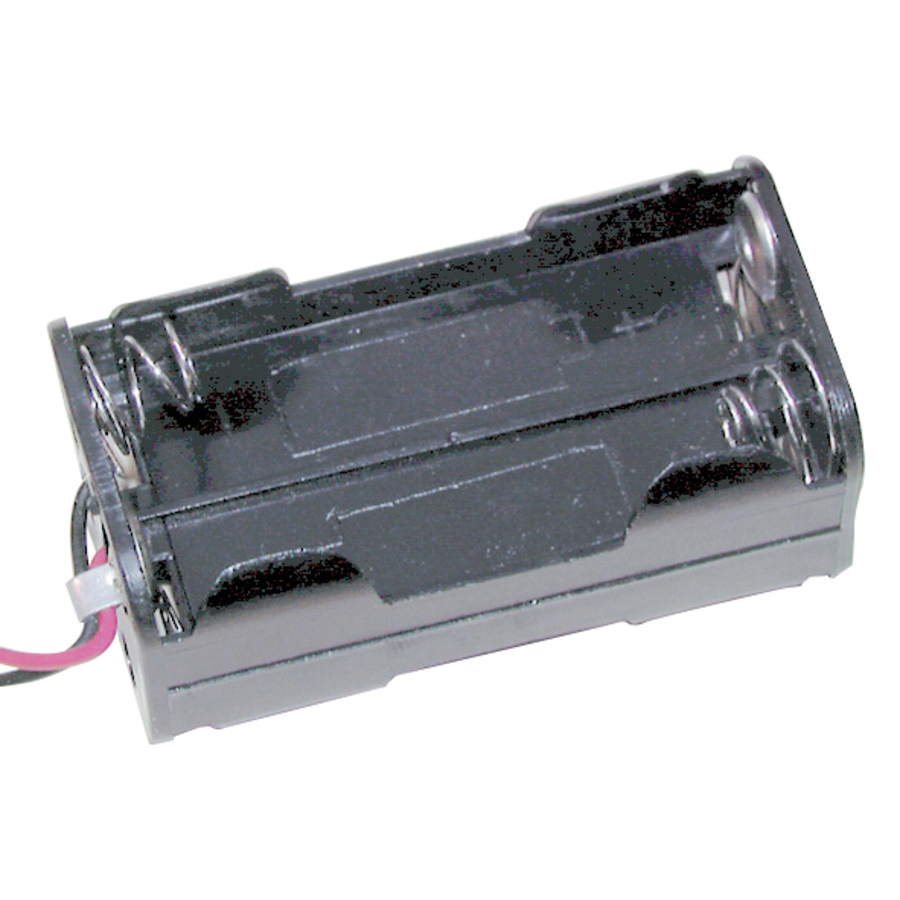

4 X AA SQUARE Battery Holder
product image thumb
product image thumb

4 X AA SQUARE Battery Holder

$2.5
Battery Holder made out of high grade plastic with nickel plated terminals for 4 AA square with leads to wire into a circuit
Available

Description

These battery holders are injection moulded from high grade polypropylene with good stiffness characteristics to provide excellent rigidity and the terminals are nickel plated to prevent corrosion.

    Specifications

    Battery Holder, Clip, or Snap


    Cell configuration
    Square
    Number of Cells
    4pc
    Output Connection
    Bare Leads
    Type of Cell
    AA

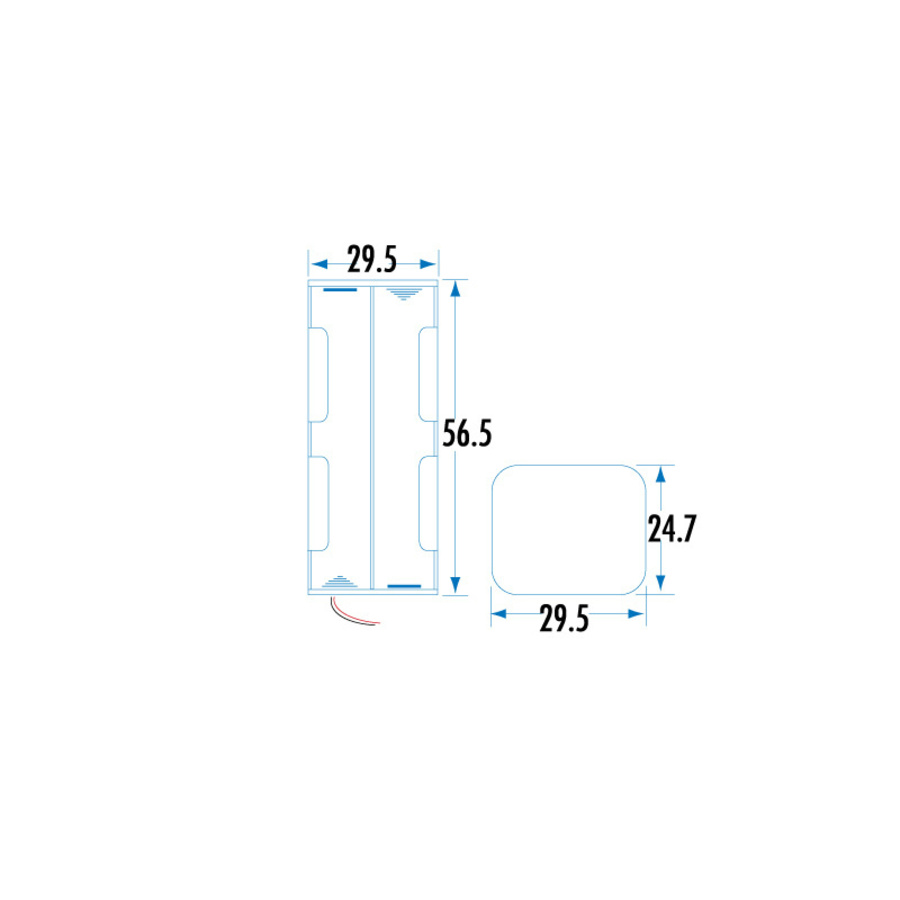

    Product Dimensions


    Length
    56.5mm
    Cable length
    150mm
    Height
    24.7mm
    Width
    29.5mm

    Packaged Dimensions


    Packaged Length
    9.1cm
    Packaged Width
    6.3cm
    Packaged Weight
    0.01kg
    Packaged Volume
    0.189189l
    Packaged Height
    3.3cm

    Product Availability


    Availability
    Stocked item
