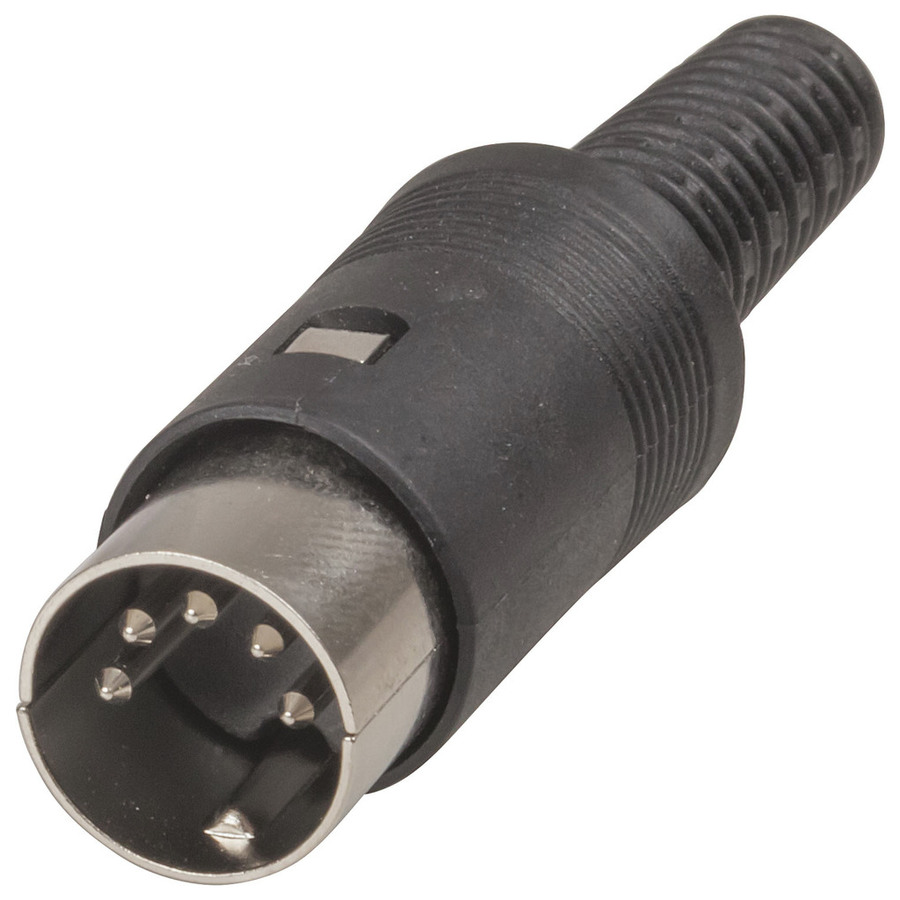

5 Pin DIN Line Plug
5 Pin DIN Line Plug

CAT. No. PP0304

5 Pin DIN Line Plug
product image thumb

5 Pin DIN Line Plug

$2.95
From our range of power, audio, data and telecommunication adapters and terminating connectors.
Available

Description

5 PIN LINE PLUG Economy style.

Handy Tip DIN Plugs and Sockets

Originally a German standard, these connectors are available in versions from 2 to 13 pins. Once widely used, these are now seen less on AV equipment. The 2 pin version is used for some loudspeakers and 5 pin version is still used for connecting MIDI electronic musical instruments &older PC keyboards.

    Specifications

    Plug or Socket

    Contacts / Pins
    		 5pc
    Device
    		 Plug
    Pack Quantity
    		 1pc
    Plug or Socket Type
    		 DIN 5 Pin (180°)
    Attachment Method
    		 Solder Tag
    Case Material
    		 Plastic

    Packaged Dimensions

    Packaged Length
    		 6.5cm
    Packaged Width
    		 1.3cm
    Packaged Weight
    		 0.007kg
    Packaged Volume
    		 0.010985l
    Packaged Height
    		 1.3cm

    Product Availability

    Availability
    		 Stocked item
