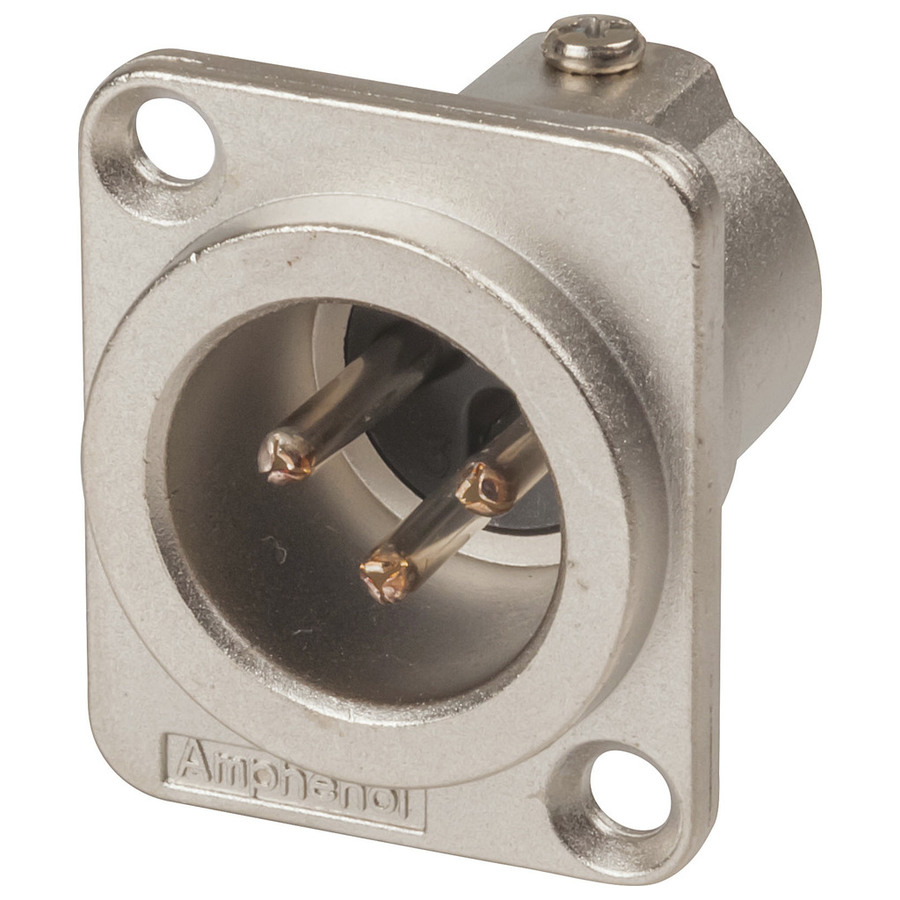

Amphenol Chassis Mount D-Series panel mounted XLR plug
Amphenol Chassis Mount D-Series panel mounted XLR plug

CAT. No. PP1058

Amphenol Chassis Mount D-Series panel mounted XLR plug
product image thumb

Amphenol Chassis Mount D-Series panel mounted XLR plug

$9.95
High quality Amphenol brand XLR 3 pole male chassis mount socket, for patch panels, studio etc. Can be front or rear mounted in P or D series panels....
Available

Description

High quality Amphenol brand XLR 3 pole male chassis mount socket, for patch panels, studio etc. Can be front or rear mounted in P or D series panels.

• D series flange
• Stamped phosphor / bronze contacts* Nickel finish

Specifications:
• Max Wire Gauge: 14AWG
• Flammability Rating: UL94-V0
• RoHS Compliant.

Handy Tip XLR Wiring

The Standard is defined by the Audio Engineering Society inAES14-1992(r1998)
Pin 1: Shield/Ground
Pin 2: Hot/in Phase / +
Pin 3: Cold / Out of Phase / -
To create an unbalanced connection, pin 1 & pin 3 are connected to ground & pin 2 carries the signal. Note that there is a lot of equipment (particularly in the US) that has pin 2 & pin 3designations reversed (i.e. 3 hot, 2 cold).Manufacturers are adopting the Standard on all new equipment.

    Specifications

    Plug or Socket

    Contacts / Pins
    		 3pc
    Device
    		 Plug
    Pack Quantity
    		 1pc
    Contact Material
    		 Plated Metal
    Plug or Socket Type
    		 XLR
    Attachment Method
    		 Solder Tag
    Case Material
    		 Metal

    Product Mounting

    Round Mount Hole Diameter
    		 24mm
    Mounting Method
    		 Chassis

    Packaged Dimensions

    Packaged Length
    		 10.8cm
    Packaged Width
    		 6.8cm
    Packaged Weight
    		 0.032kg
    Packaged Volume
    		 0.198288l
    Packaged Height
    		 2.7cm

    AC Current Rating

    AC current rating
    		 15A

    Product Availability

    Availability
    		 Stocked item
