50 Pin IDC Right Angle Header
50 Pin IDC Right Angle Header

CAT. No. PP1132

50 Pin IDC Right Angle Header
product image thumb

50 Pin IDC Right Angle Header

$3.45
From our range of power, audio, data and telecommunication adapters and terminating connectors.

Out of Stock

Description

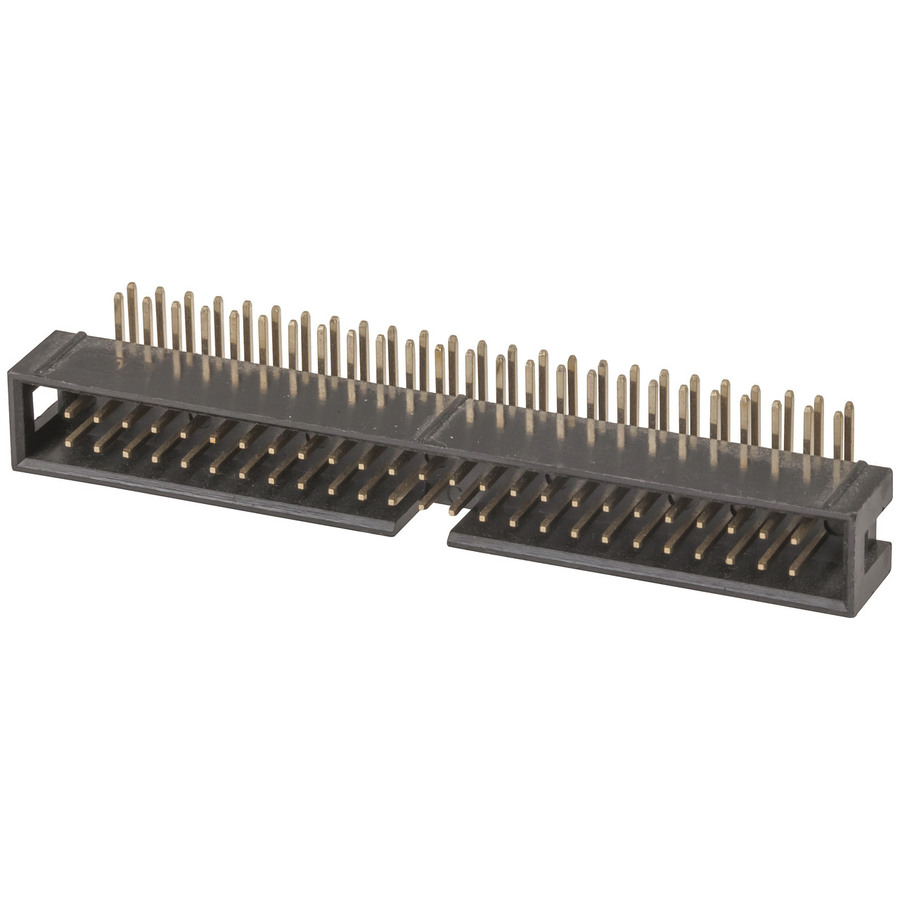

Horizontal facing 50 pin IDC plug, suitable for PCB mounting.

Dimentions (mm)  PINS    A     B     C

         PP-1132       50      71   69   61


    Specifications

    Header Connections

    Type
    		 Double Row Header
    Right Angle Mount
    Device
    		 Plug
    Pin Spacing
    		 2.54mm (0.1")
    Number of Pins
    		 50pc
    Pin Material
    		 Gold Plated
    Attachment Method
    		 IDC

    Product Mounting

    Mounting Method
    		 PCB

    Packaged Dimensions

    Packaged Length
    		 7cm
    Packaged Width
    		 1.5cm
    Packaged Weight
    		 0.0068kg
    Packaged Volume
    		 0.01575l
    Packaged Height
    		 1.5cm

    Product Availability

    Availability
    		 Stocked item
